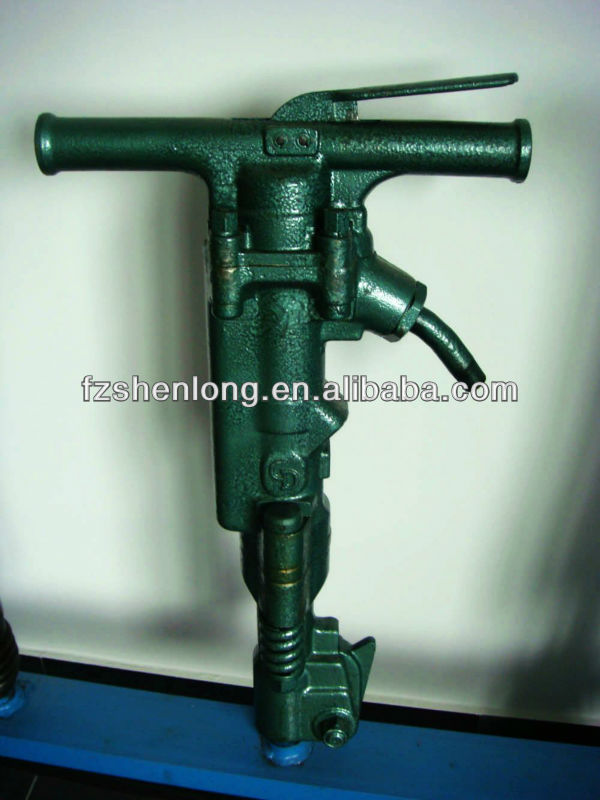

B47C Jack Hammer Breaker air Tools Pneumatic

Product Description

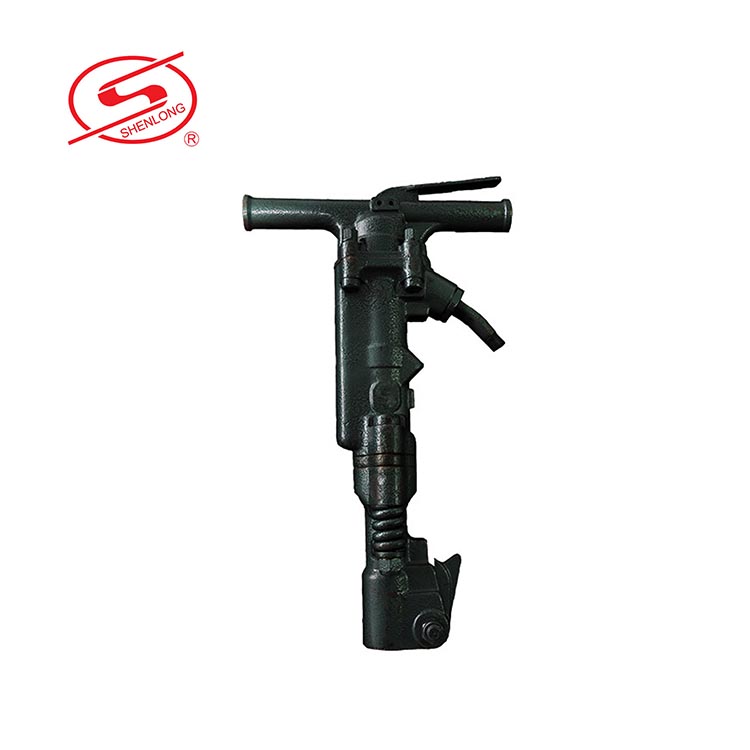

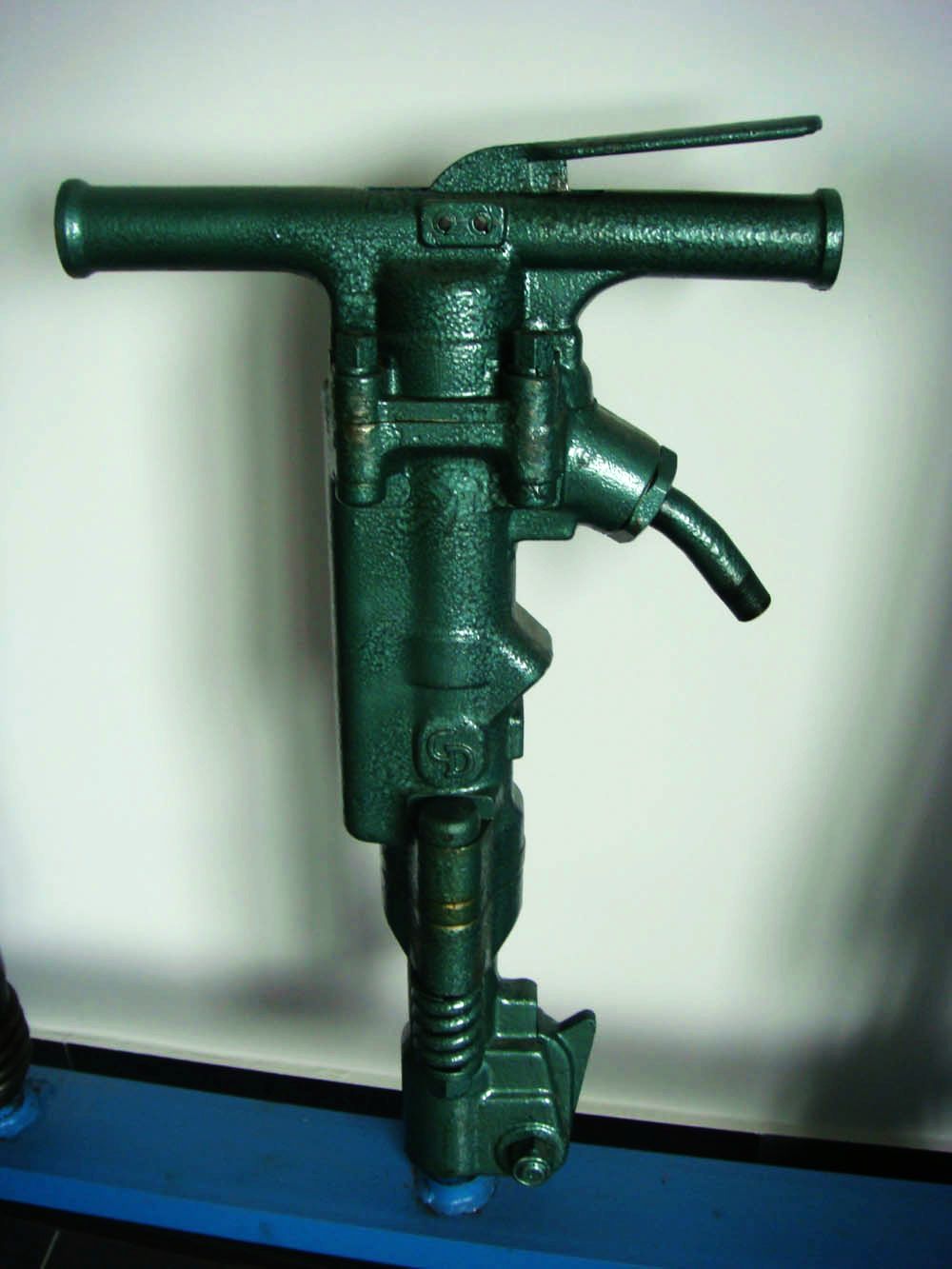

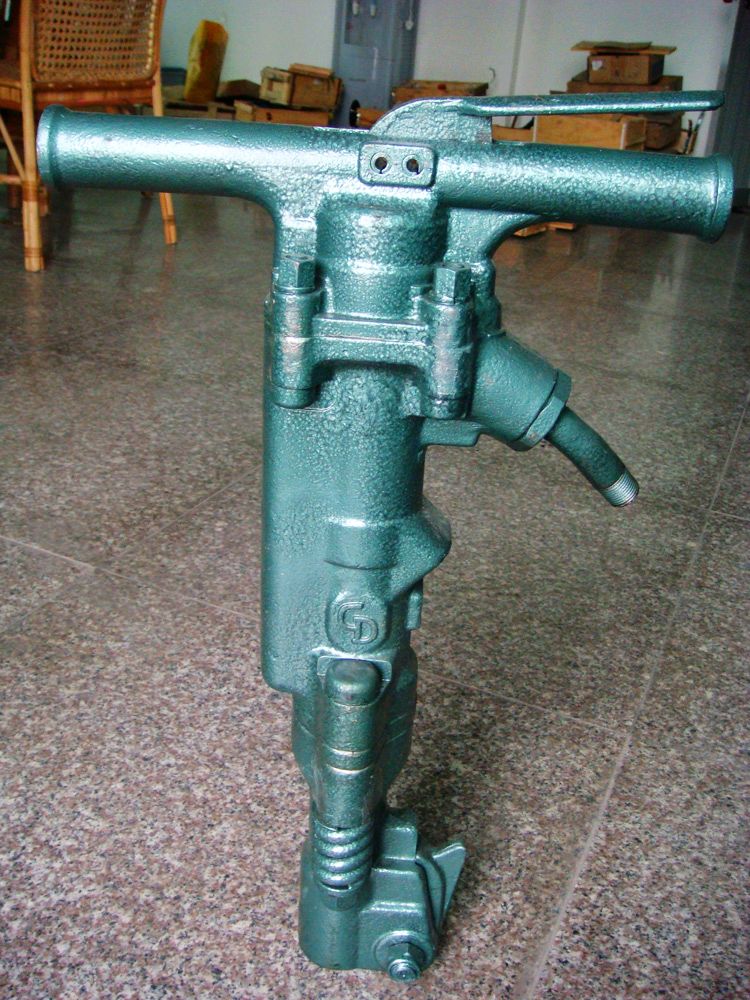

Product Overview: B47C Jack Hammer / Breaker
High-Performance Pneumatic Paving Breaker

The Paving breaker model B47 is a professional-grade tool powered by compressed air. It is specifically designed to pave and break concrete foundations, and is highly effective in engineering installations for breaking other hard materials.

The compressed air is distributed alternatively through the distributing valve into either end of the cylinder assembly. This creates a reciprocal motion for the internal hammer, which impacts the shank of the steel chisel. Driven by the tappet, the chisel penetrates concrete foundations and hard structures, splitting them into manageable pieces efficiently.

Technical Specifications
Parameter Specification Details
Weight 21.5kg
Length 550mm
Air Consumption 28 L/S
Impact Frequency 21 Hz
Impact Energy ≥76 J
Bit Fixation Style Lock / Unlock
Shank Size 25 * 108 mm
Air Tube Inner Diameter 19 mm
Product Gallery
Frequently Asked Questions
1. What is the primary use of the B47 Breaker?
The B47 model is primarily used for paving and breaking concrete foundations, as well as breaking other hard materials during engineering projects.
2. What type of power source does this jack hammer require?
The B47 paving breaker is a pneumatic tool, meaning it uses compressed air as its power source.
3. How much air does the B47 consume during operation?
The device has an air consumption rate of 28 Liters per Second (L/S).
4. What is the impact energy and frequency of this tool?
The B47 provides an impact energy of ≥76 Joules with an impact frequency of 21 Hz.
5. What is the standard shank size for the B47C?
The standard shank size for this breaker is 25 * 108 mm.
6. How does the bit fixation system work?
The tool features a Lock/Unlock style fixation system, allowing for secure and straightforward bit changes.
