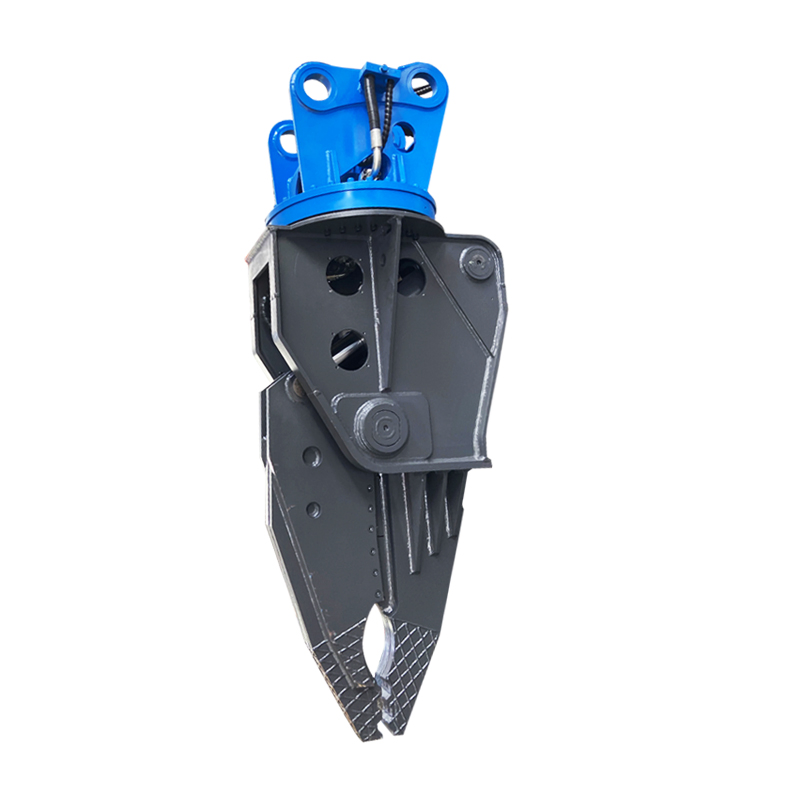

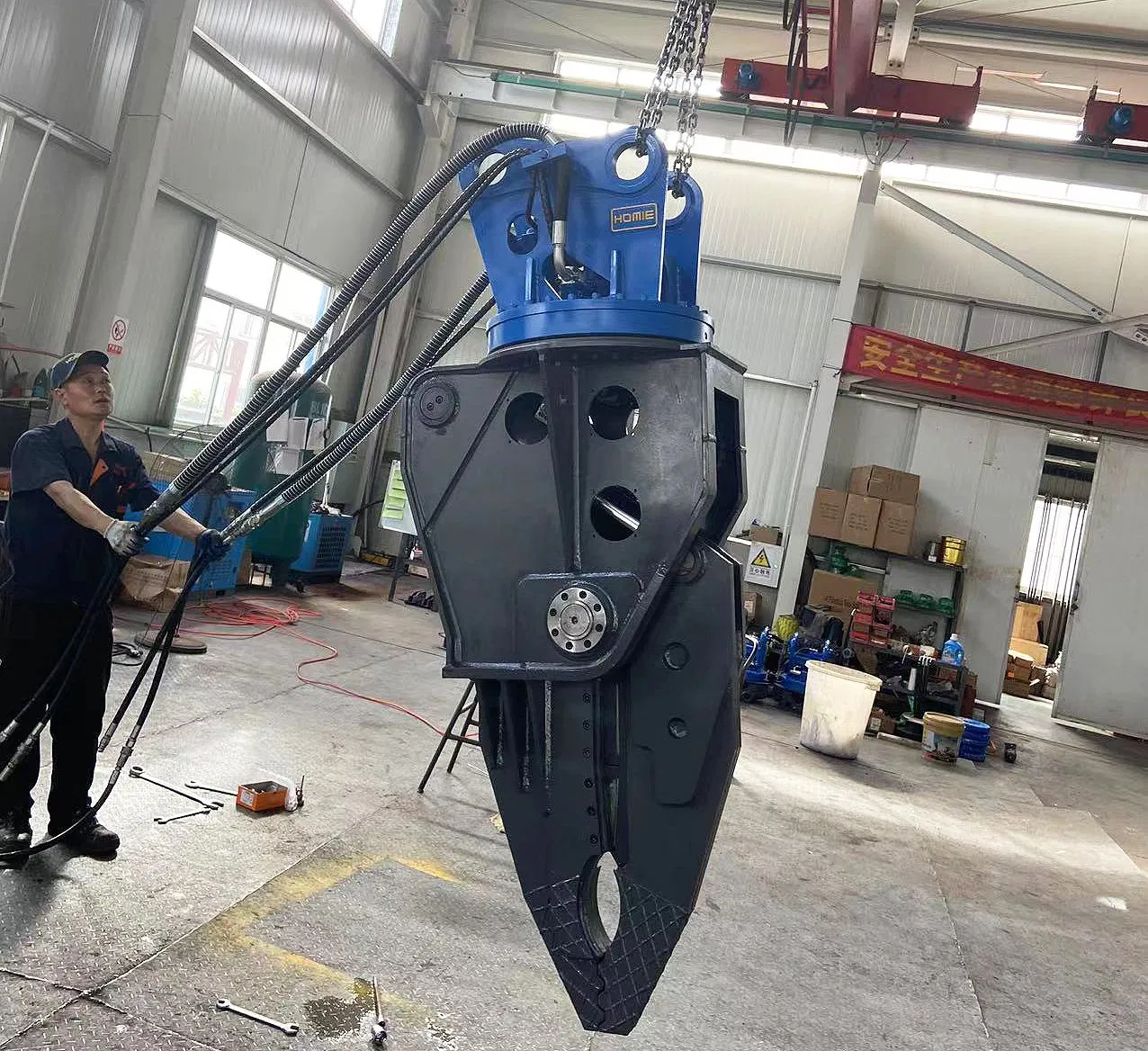

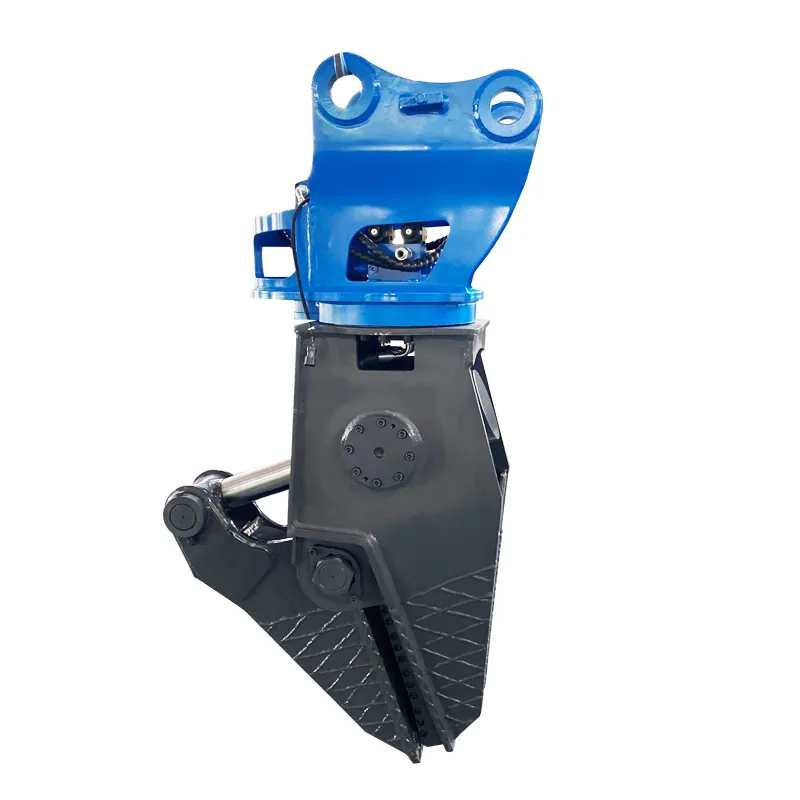

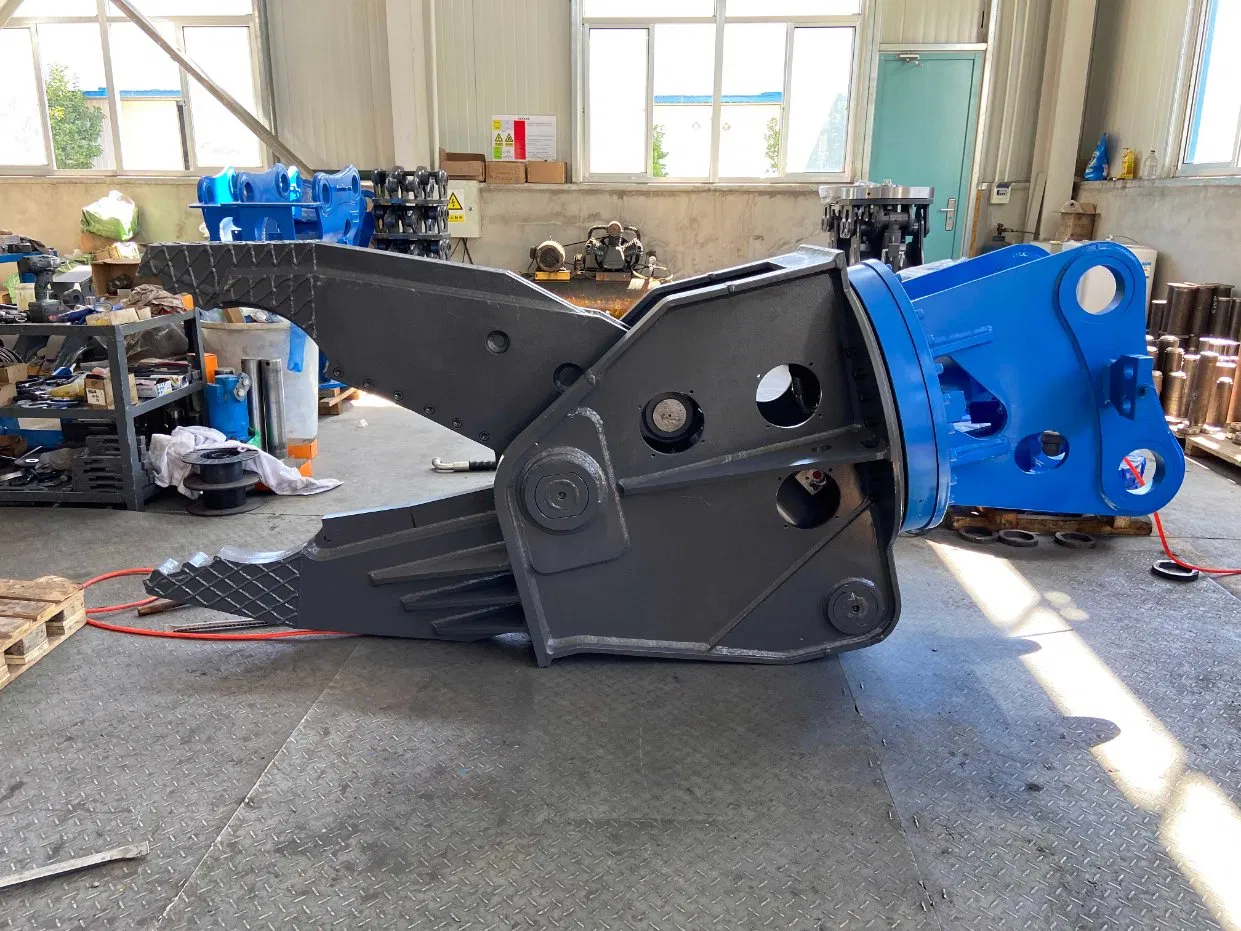

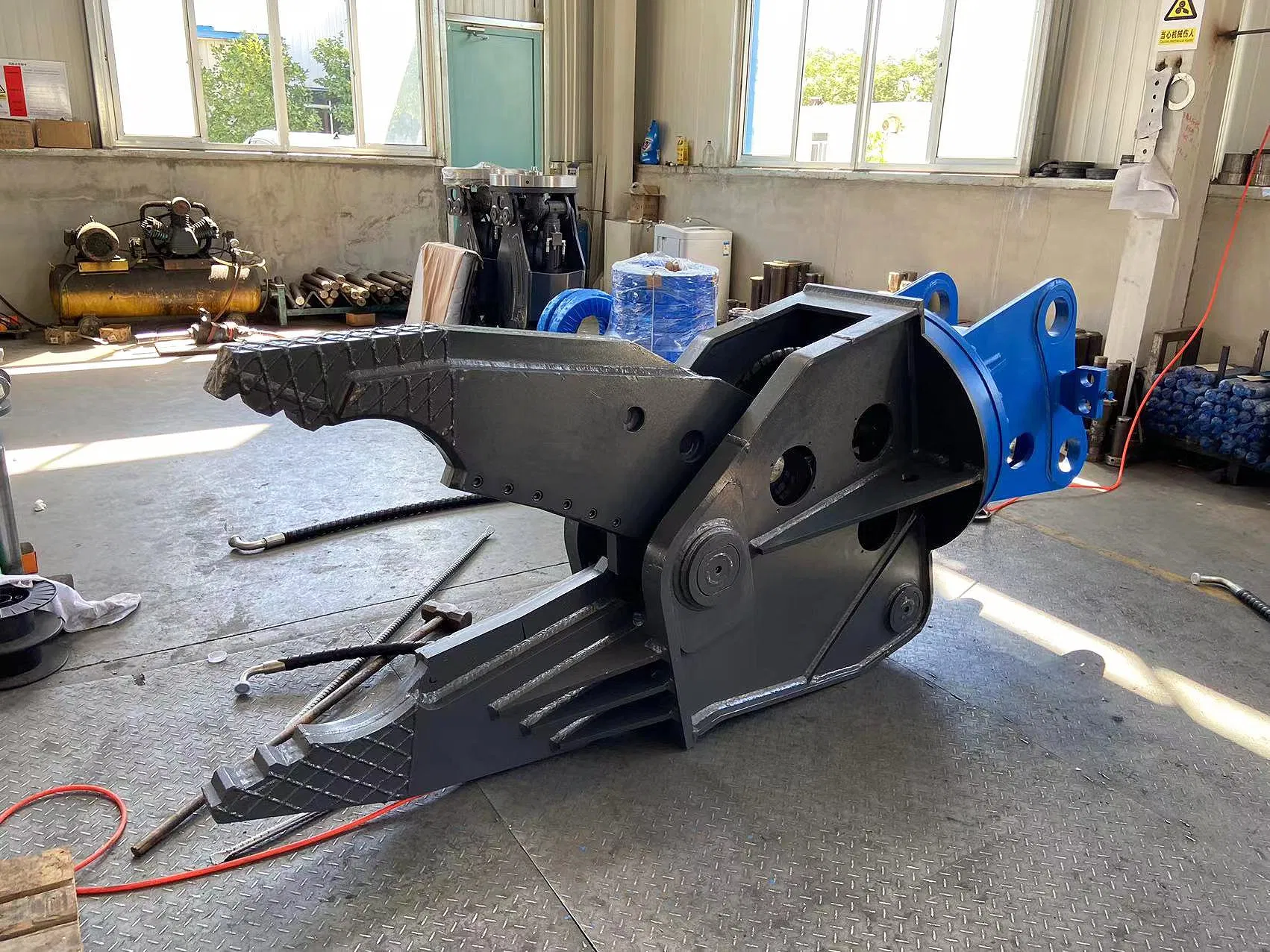

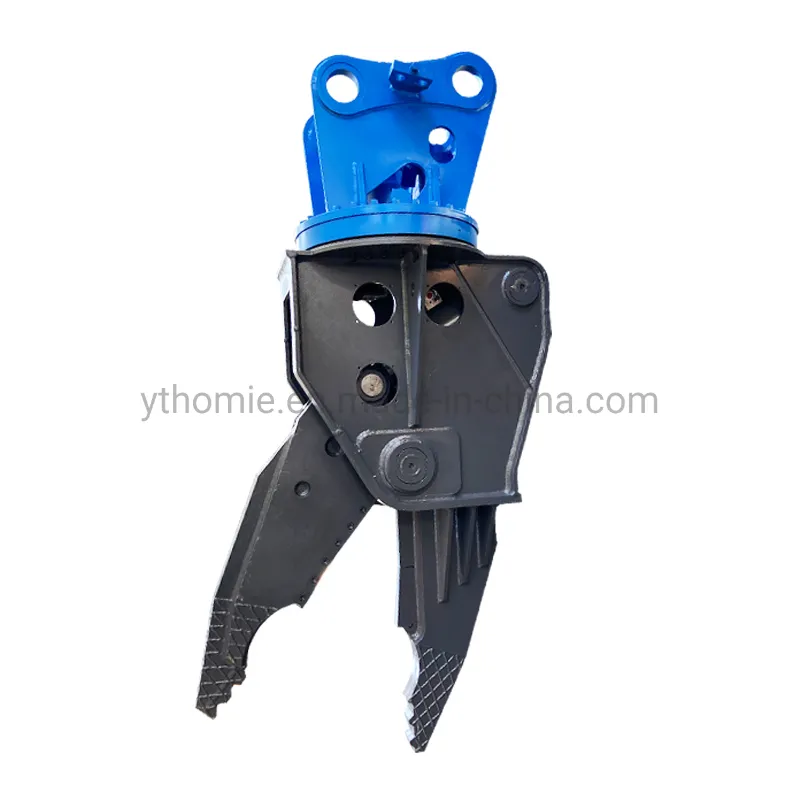

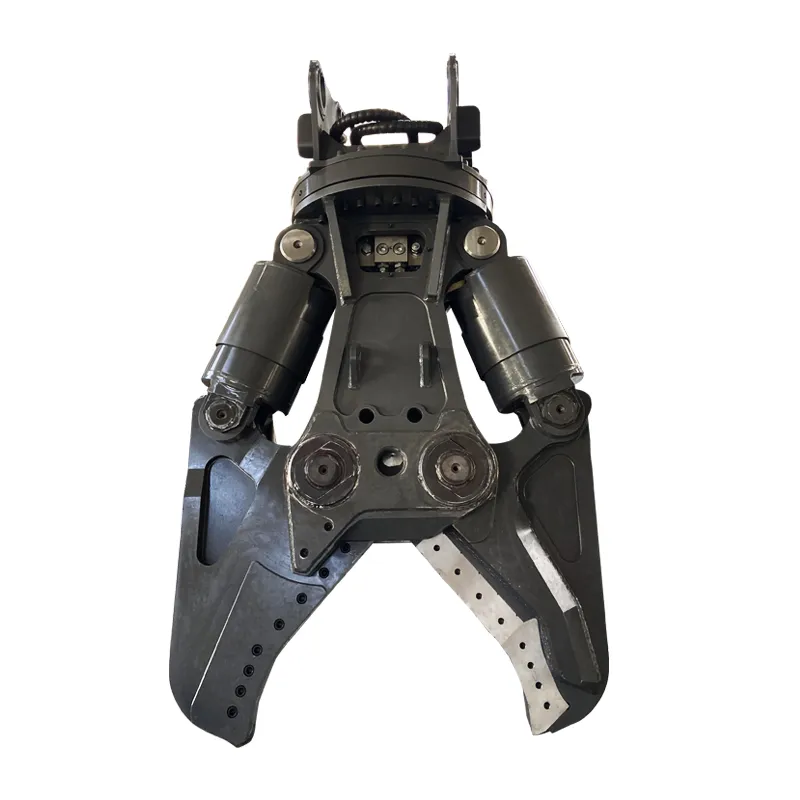

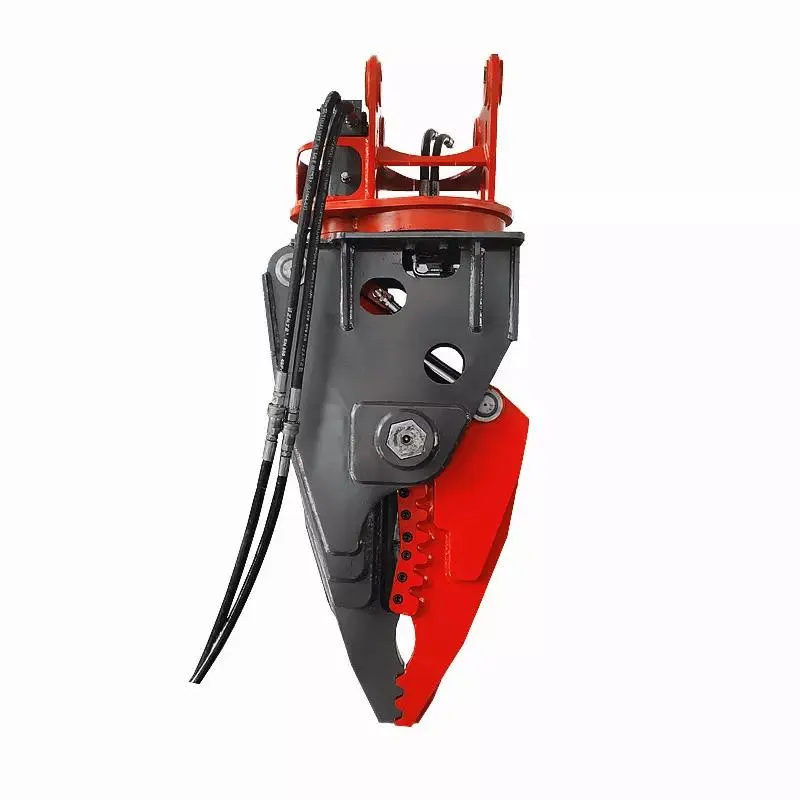

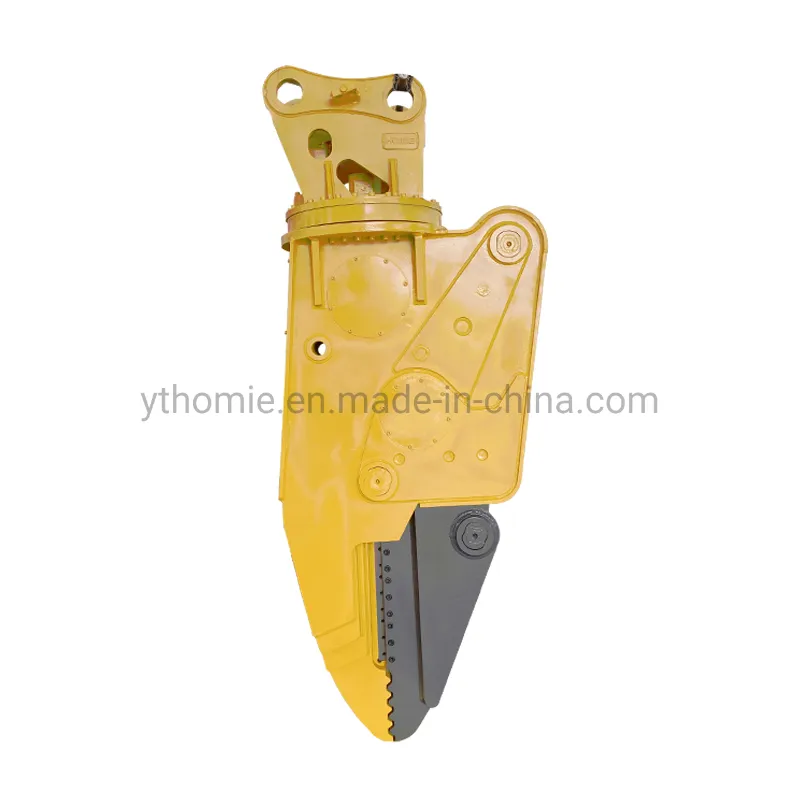

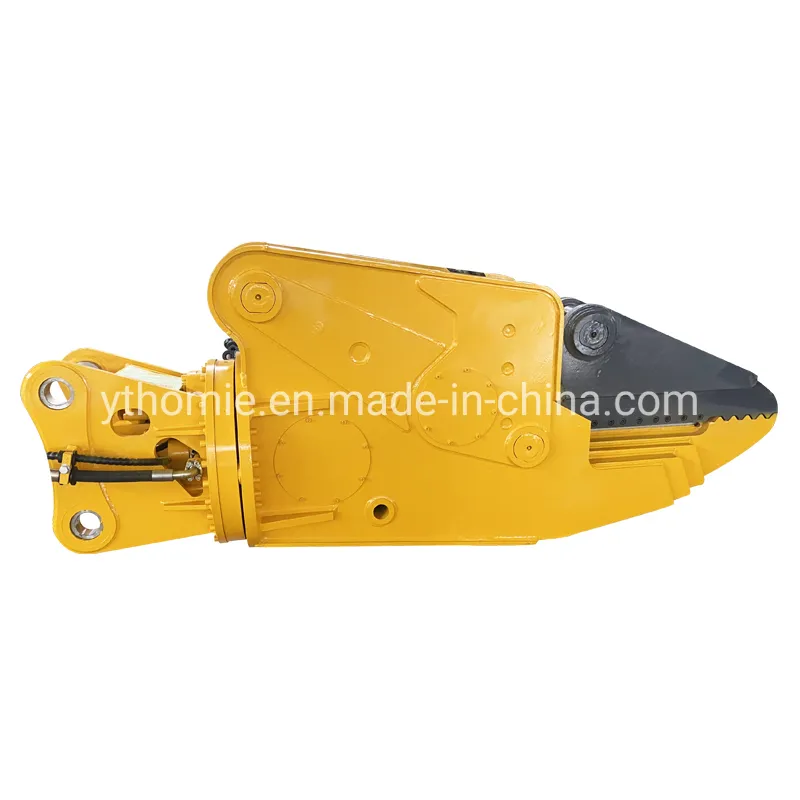

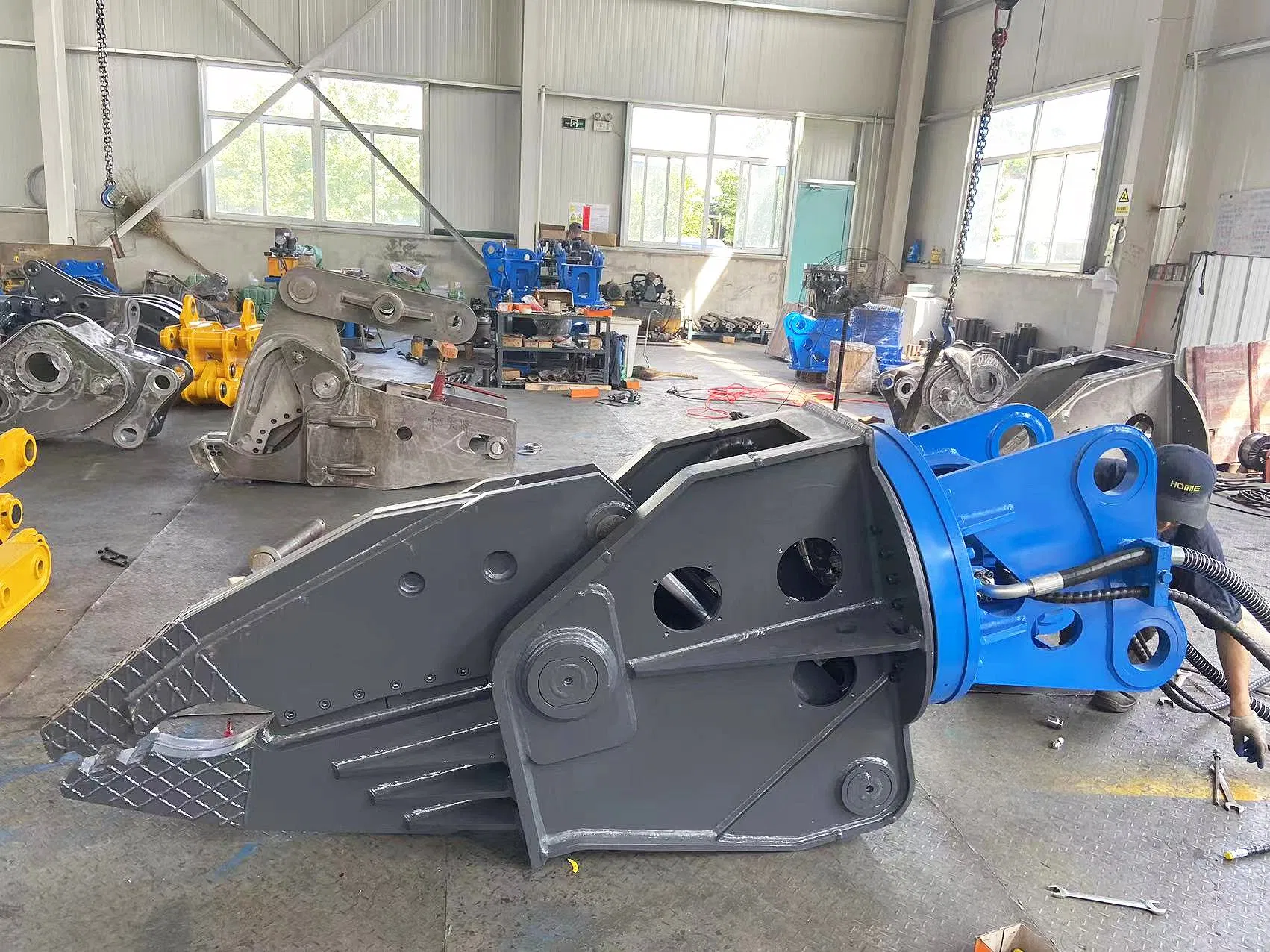

Hydraulic Scrap Vehicle Dismantling Machine for Excavator
The excavator car dismantling shear is suitable for various operations, including breaking the steel structure, scrap steel processing, cut iron material, steel, tank and tube etc. Its unique design and strengthened material ensure the efficient operation.
The cutting force is more powerful compared to ordinary hydraulic shear performance.
Please check the following car dismantling shear specifications to choose the right model:
| Category | Unit | HM04 | HM06 | HM08 | HM10 |
|---|---|---|---|---|---|
| Weight | Kg | 570 | 1290 | 2200 | 2950 |
| Opening | mm | 502 | 693 | 857 | 882 |
| Setup Pressure | Kg/cm² | 250 | 250 | 280 | 320 |
| Oil Flow | L/Min | 180-190 | 180-190 | 200-250 | 230-260 |
| Max. Cutting Force | Ton | 50 | 60 | 90 | 120 |
| Suitable Excavator | Ton | 5-10 | 12-18 | 18-25 | 26-35 |

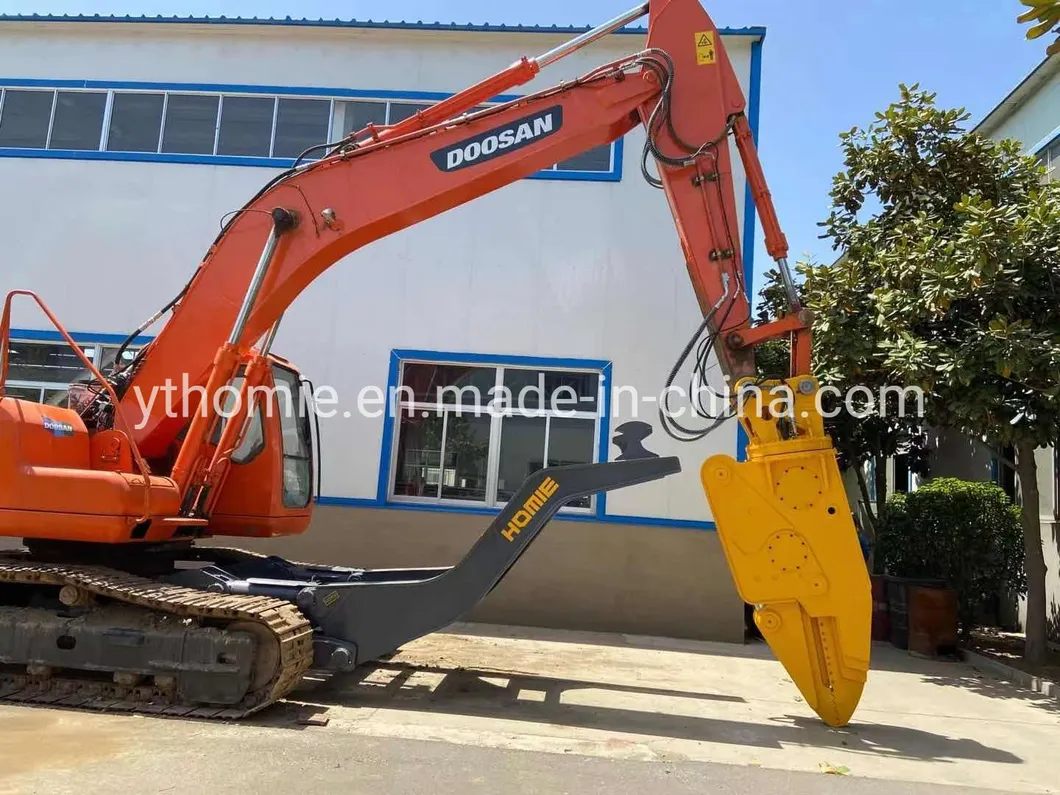

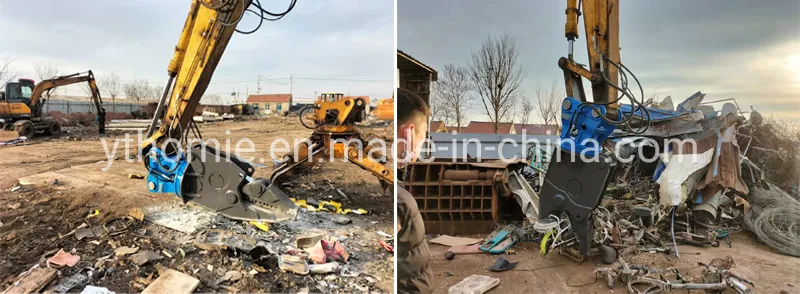

Car Dismantling Shear belongs to Heavy hydraulic shears, mounted on excavators, used for dismantling scrap car, demoliting plant steel structure, removing ship forcible, cutting steel, tank, pipe, iron, cans, etc also can be used in different operations, including the steel structure of forcible entry, scrap steel processing and other applications.
We have electronic types and Eagle Mouth Shear available for your choice.

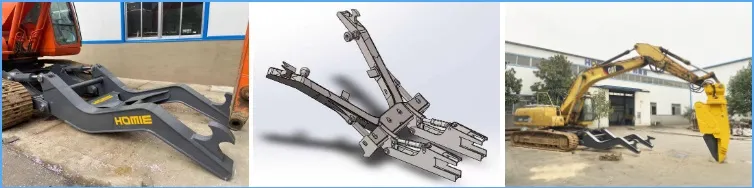

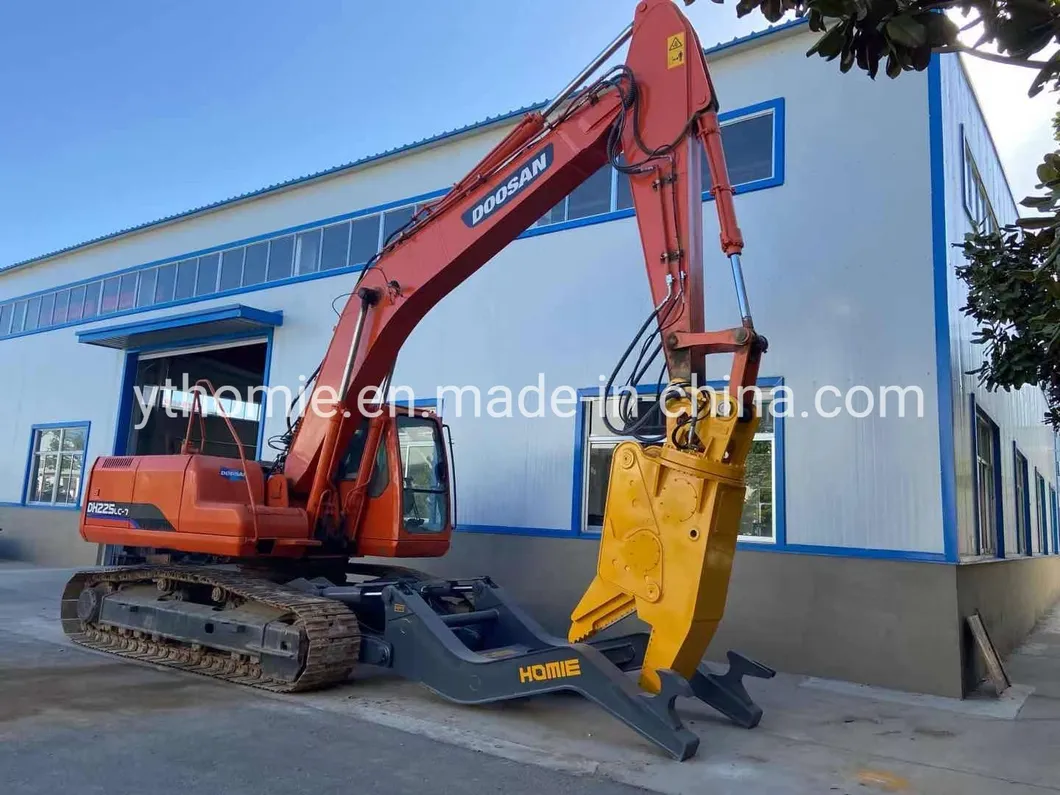

In addition to the basic function of fixing the object for dismantling, the front press frame can be raised and lowered to ensure better grip for work such as shearing. The design of the attachments and steel teeth meets the needs of a wide range of functions and is recognized by the operator.The adjustable front pressure frame is raised to the required height and fixed to allow the car dismantler to form a greater grip.

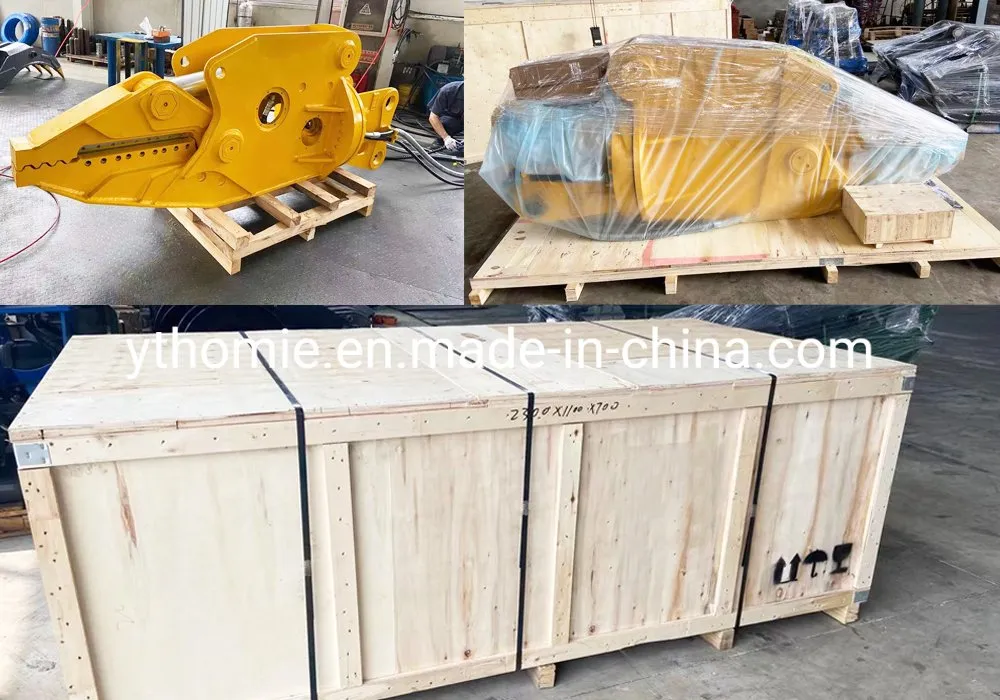

Car dismantling shear packed with Plastic and tensile membranes, can prevent products rusting when sailing on the sea for long time. Packing tape , steel belt and outside wooden box can protect product free from collision.

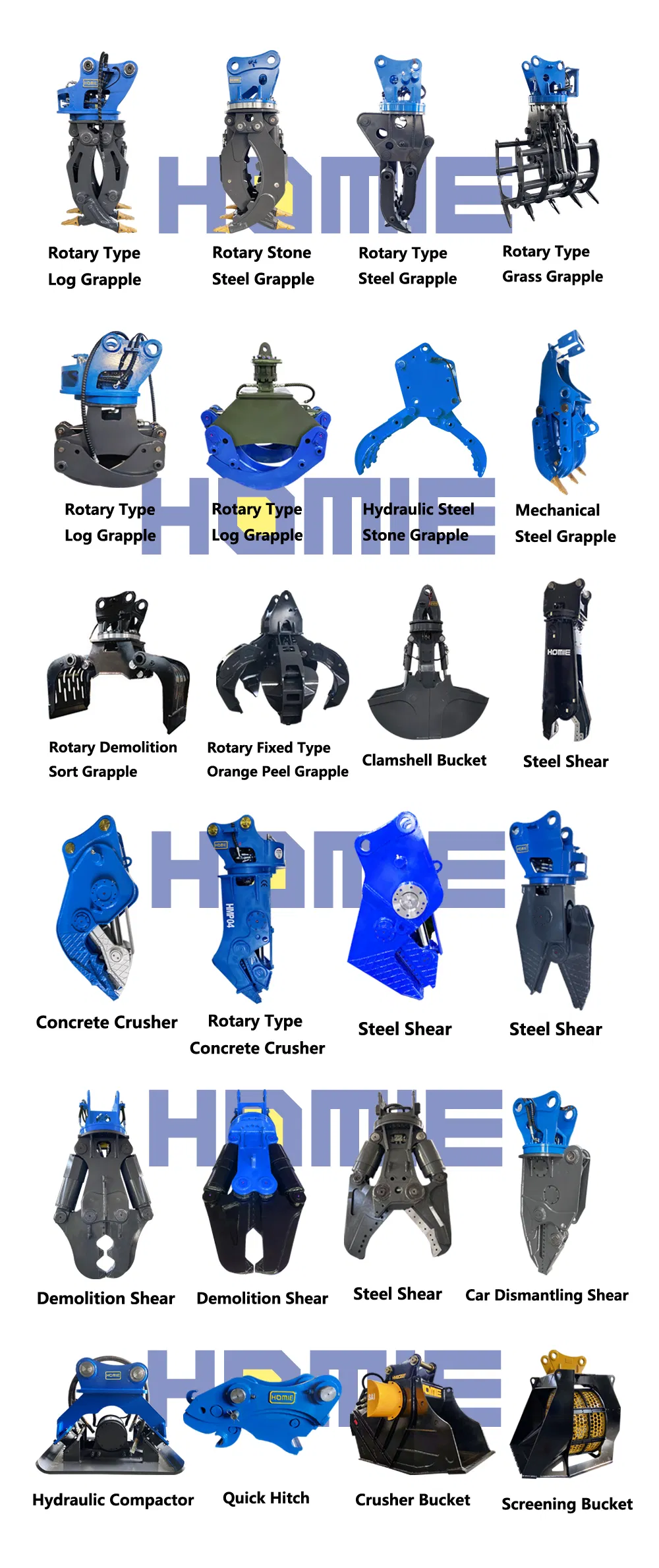

Develop and produce different types of excavator attachments, provide one-stop purchasing service. Our main products are log / wood grapple, rock / stone grapple, steel grapple, quick coupler, hydraulic plate compactor, rotary screening bucket, crusher bucket, heavy duty shear, demolition shear, hydraulic pulverizer, orange peel grapple, car dismantling shear, sleeper changer...
