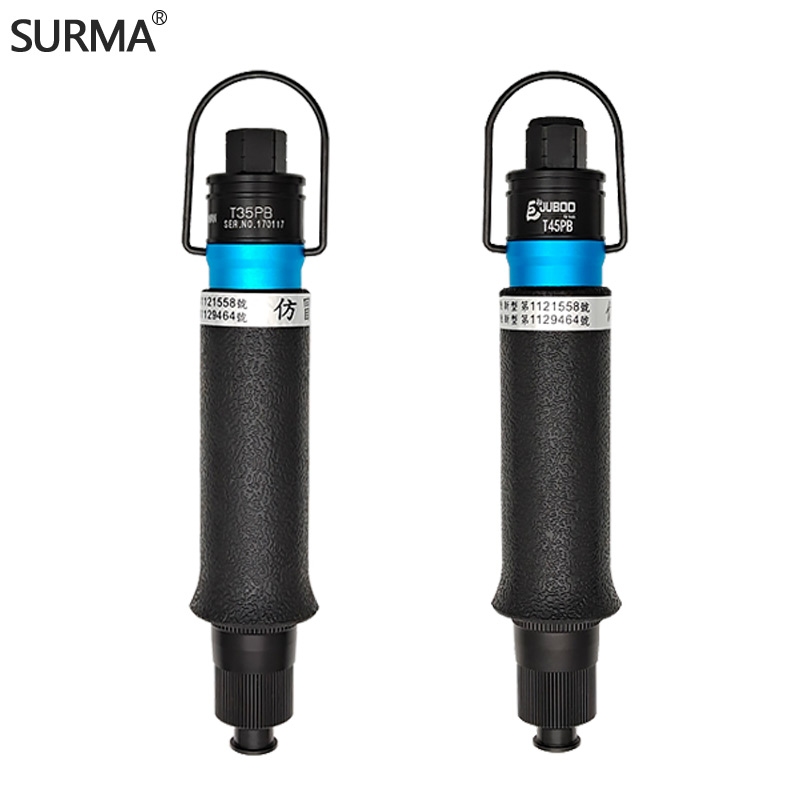

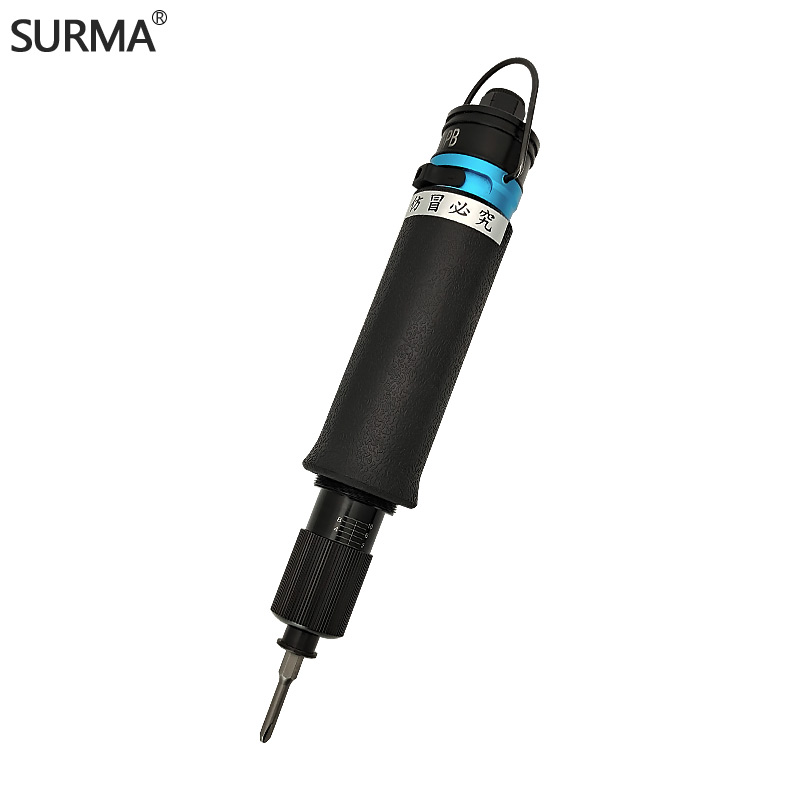

JUBOO Fully Automatic Clutch Type Air Chisel Pneumatic Screwdriver Model T-60/T-65/T-68PB with Torque Adjustment Wrench
JUBOO Fully Automatic Clutch Type Air Chisel Pneumatic Screwdriver Model T-60/T-65/T-68PB with Torque Adjustment Wrench
JUBOO Fully Automatic Clutch Type Air Chisel Pneumatic Screwdriver Model T-60/T-65/T-68PB with Torque Adjustment Wrench
JUBOO Fully Automatic Clutch Type Air Chisel Pneumatic Screwdriver Model T-60/T-65/T-68PB with Torque Adjustment Wrench
JUBOO Fully Automatic Clutch Type Air Chisel Pneumatic Screwdriver Model T-60/T-65/T-68PB with Torque Adjustment Wrench
1 / 5
JUBOO Fully Automatic Clutch Type Air Chisel Pneumatic Screwdriver Model T-60/T-65/T-68PB with Torque Adjustment Wrench
JUBOO Fully Automatic Clutch Type Air Chisel Pneumatic Screwdriver Model T-60/T-65/T-68PB with Torque Adjustment Wrench
JUBOO Fully Automatic Clutch Type Air Chisel Pneumatic Screwdriver Model T-60/T-65/T-68PB with Torque Adjustment Wrench
JUBOO Fully Automatic Clutch Type Air Chisel Pneumatic Screwdriver Model T-60/T-65/T-68PB with Torque Adjustment Wrench
JUBOO Fully Automatic Clutch Type Air Chisel Pneumatic Screwdriver Model T-60/T-65/T-68PB with Torque Adjustment Wrench

JUBOO Fully Automatic Clutch Type Air Chisel Pneumatic Screwdriver Model T-60/T-65/T-68PB with Torque Adjustment Wrench

Send Inquiry

Product Description

!

MAIN TIPS

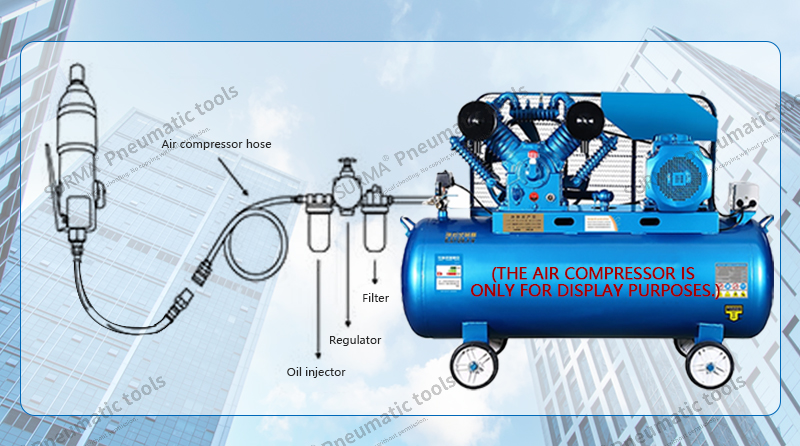

All the products in our store need to be connected to a compressor to be used. They are not electric tools! Please note this.
Output pressure of the air compressor (air pump) is 6-8 kg (with some exceptions). It can ensure that pneumatic tools are used normally.

Main Tips Illustration

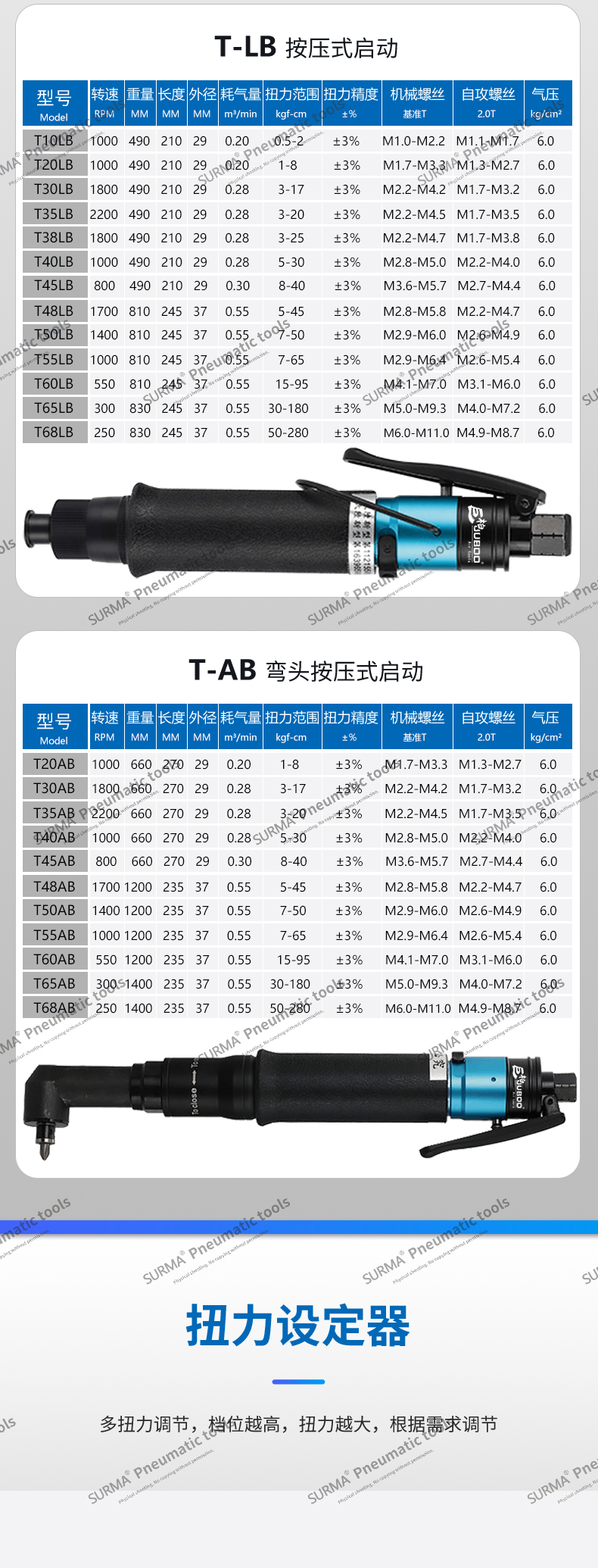

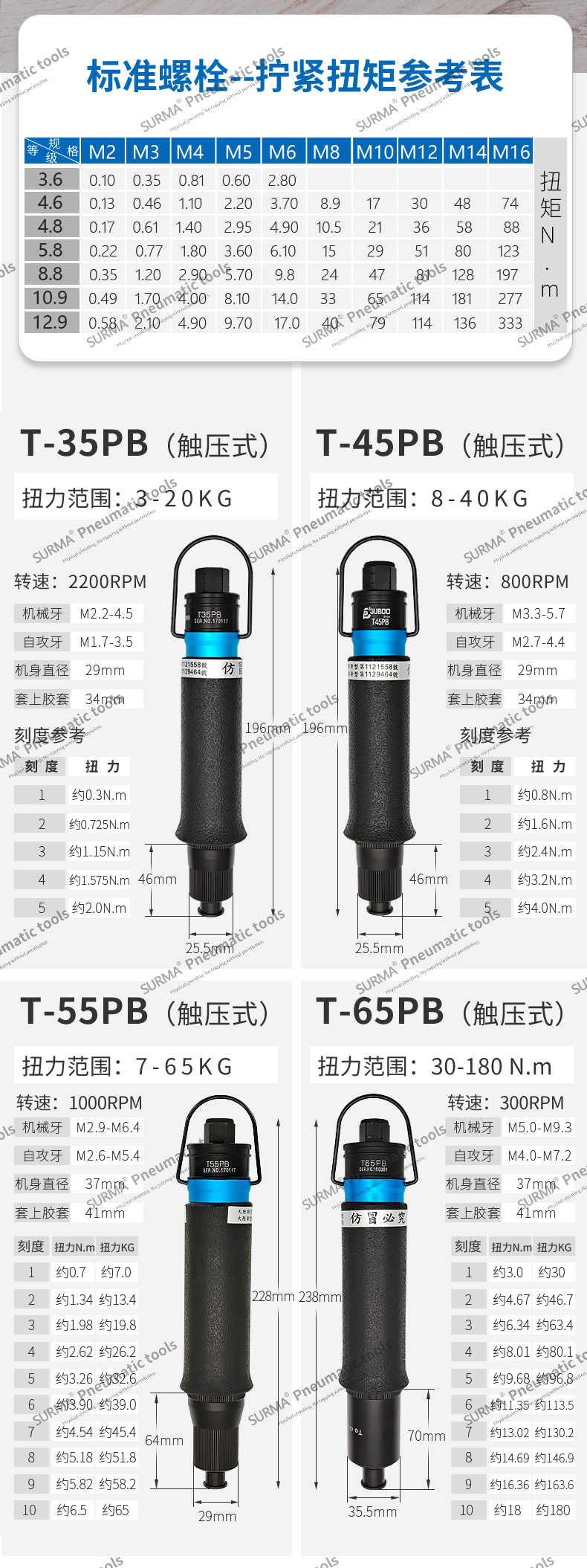

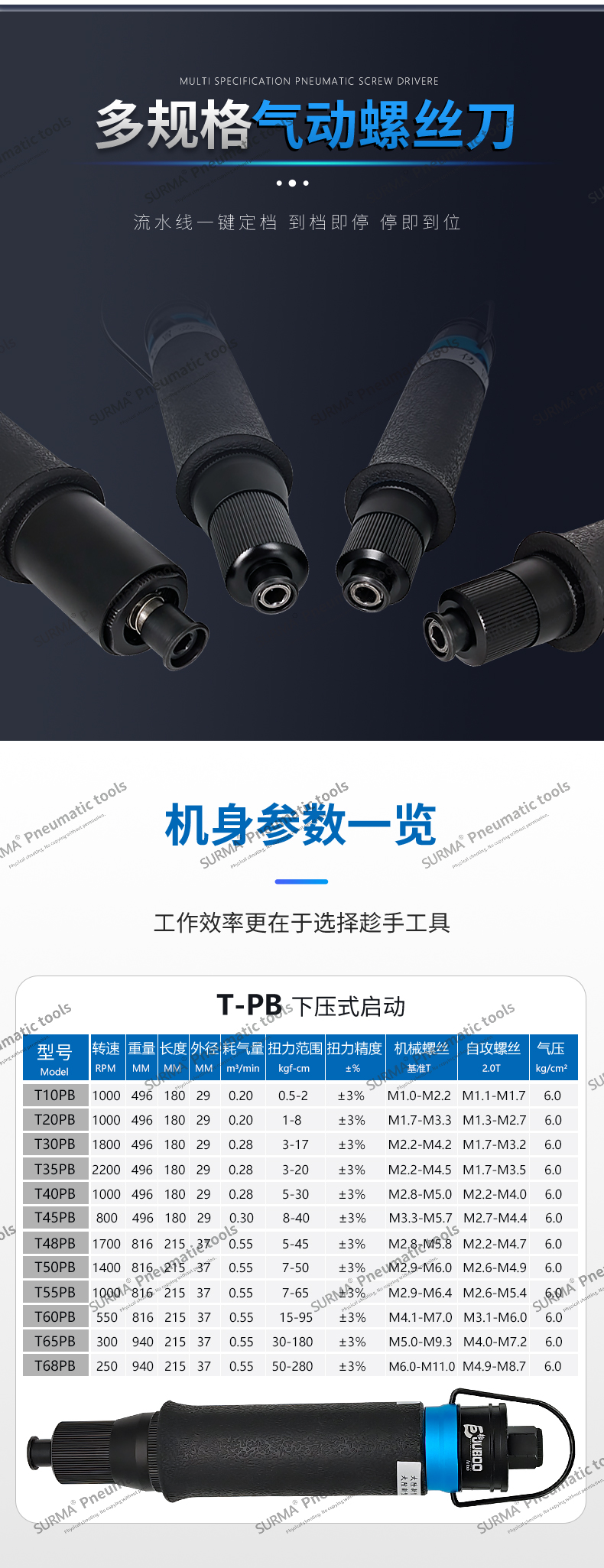

Model Speed Mechanical Screws Torque Range Gas Consumption Length Outer Diameter Torque Accuracy Weight
T10PB 1000RPM M1.0-M2.2 0.5-2kgf-cm 0.2m³/min 180mm 29mm ±3% 496g
T20PB 1000RPM M1.7-M3.3 1-8kgf-cm 0.2m³/min 180mm 29mm ±3% 496g
T30PB 1800RPM M2.2-M4.2 3-17kgf-cm 0.28m³/min 180mm 29mm ±3% 496g
T35PB 2200RPM M2.2-M4.5 3-20kgf-cm 0.28m³/min 180mm 29mm ±3% 496g
T40PB 1000rpm M2.8-M5.0 5-30kgf-cm 0.28m³/min 180mm 29mm ±3% 496g
T45PB 800RPM M3.3-M5.7 8-40kgf-cm 0.3m³/min 180mm 29mm ±3% 496g
T48PB 1700RPM M2.8-M5.8 5-45kgf-cm 0.55m³/min 215mm 37mm ±3% 816g
T50PB 1400RPM M2.9-M6.0 7-50kgf-cm 0.55m³/min 215mm 37mm ±3% 816g
T55PB 1000RPM M2.9-M6.4 7-65kgf-cm 0.55m³/min 215mm 37mm ±3% 816g
T60PB 550RPM M4.1-M7.0 15-95kgf-cm 0.55m³/min 215mm 37mm ±3% 816g
T65PB 300RPM M5.0-M9.3 30-180kgf-cm 0.55m³/min 215mm 37mm ±3% 940g
T68PB 250RPM M6.0-M11.0 50-280kgf-cm 0.55m³/min 215mm 37mm ±3% 940g
Product Detail
Frequently Asked Questions
Do these tools require electricity to operate?
No, these are pneumatic tools. They must be connected to an air compressor to function.
What is the recommended air pressure for these tools?
The standard output pressure of the air compressor should be between 6-8 kg for optimal performance.
How accurate is the torque control?
All models listed offer a high torque accuracy of ±3%, ensuring precision during assembly.
Which model is suitable for M4 screws?
Models such as T30PB, T35PB, and T40PB are designed to handle mechanical screws in the M4 range. Please refer to the specification table for exact ranges.
What is the gas consumption for high-torque models?
High-torque models like the T68PB have a gas consumption of approximately 0.55m³/min.
Are different speeds available for different models?
Yes, speeds range from 250RPM for high-torque models up to 2200RPM for lighter precision models.
