With our European local warehouse, products can be delivered in as fast as 5 days, reducing your lead time and keeping your business running smoothly.
No Import Charges: Enjoy transparent pricing and worry-free ordering with no extra import duties.

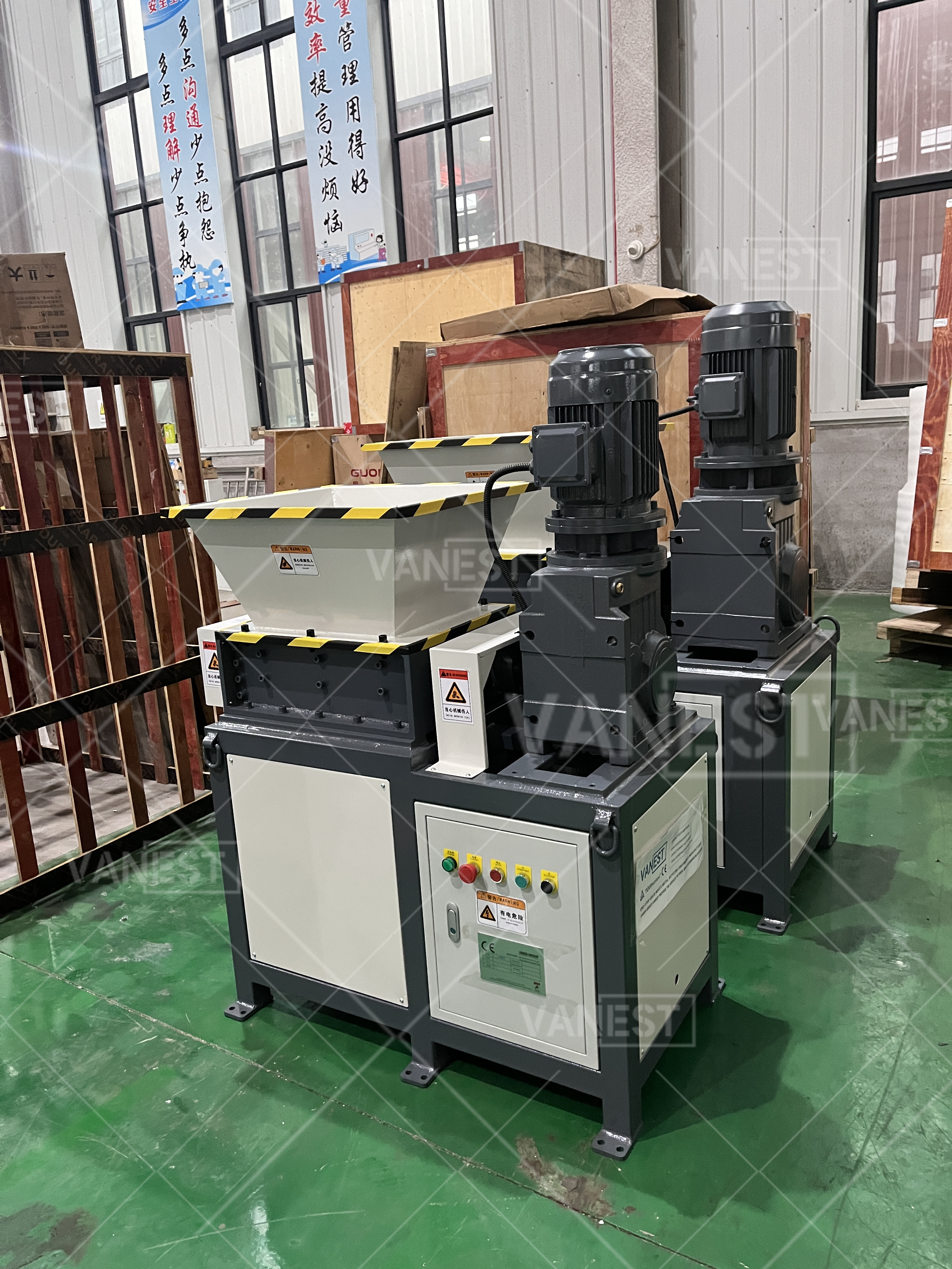

EB180-EBK800 Industrial Metal Shredders are designed for shredding a wide variety of waste materials, including:
We have successfully sold 130 sets of metal shredders worldwide:
• 98 sets of EB series metal shredders
• 29 sets of DB series metal shredders
• 3 sets of CR series metal shredders

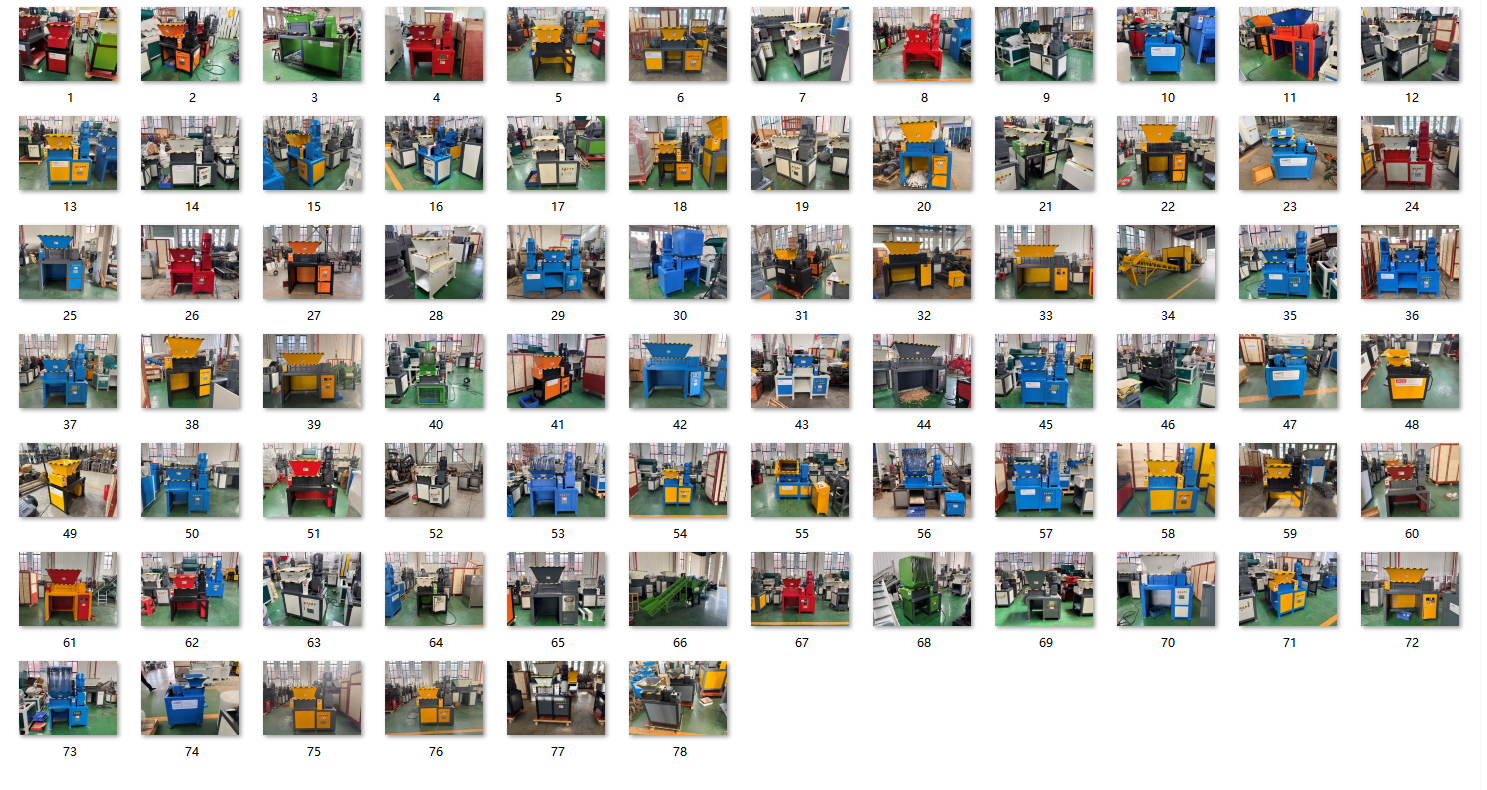

Customer Gallery

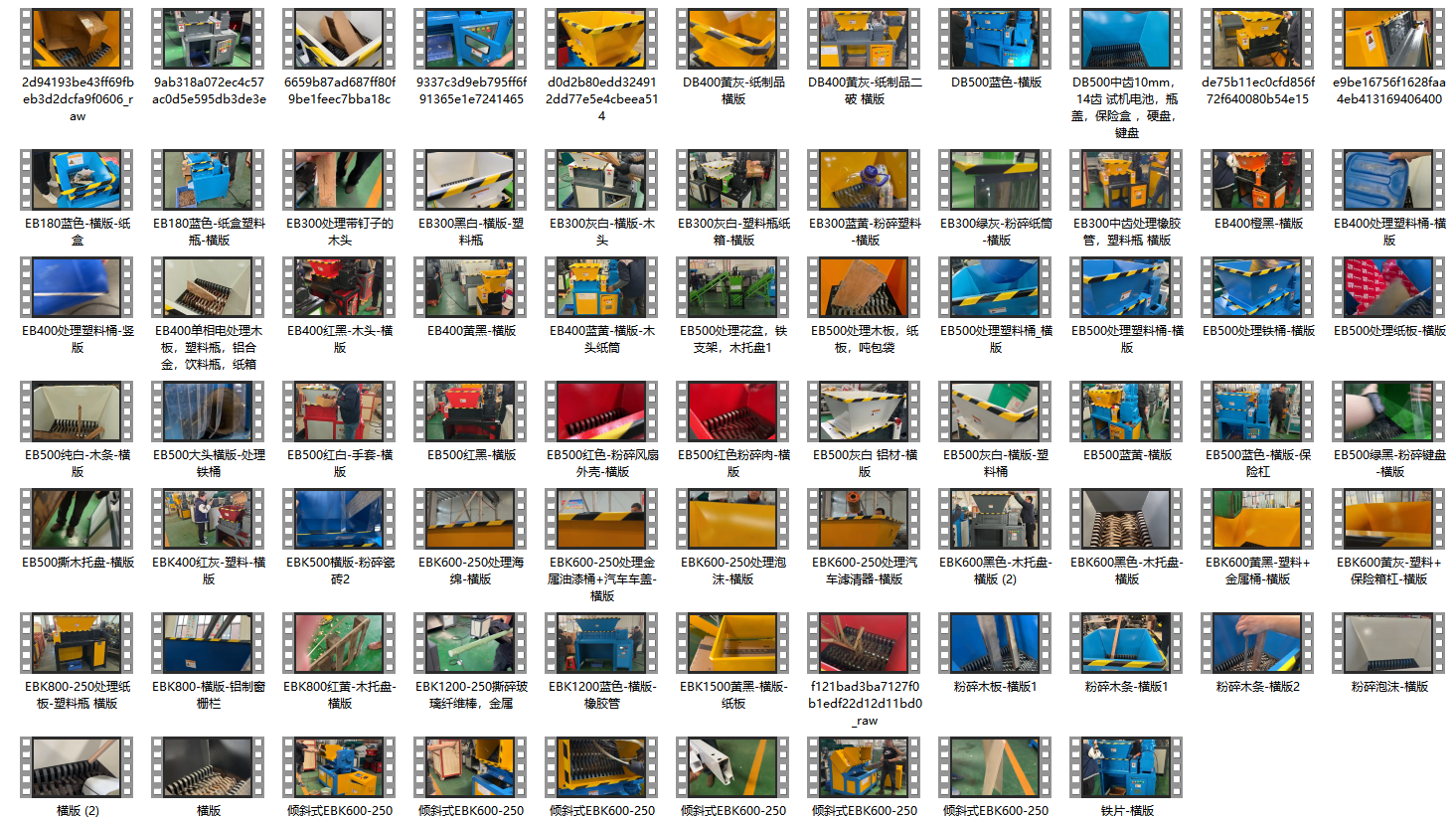

Working Videos

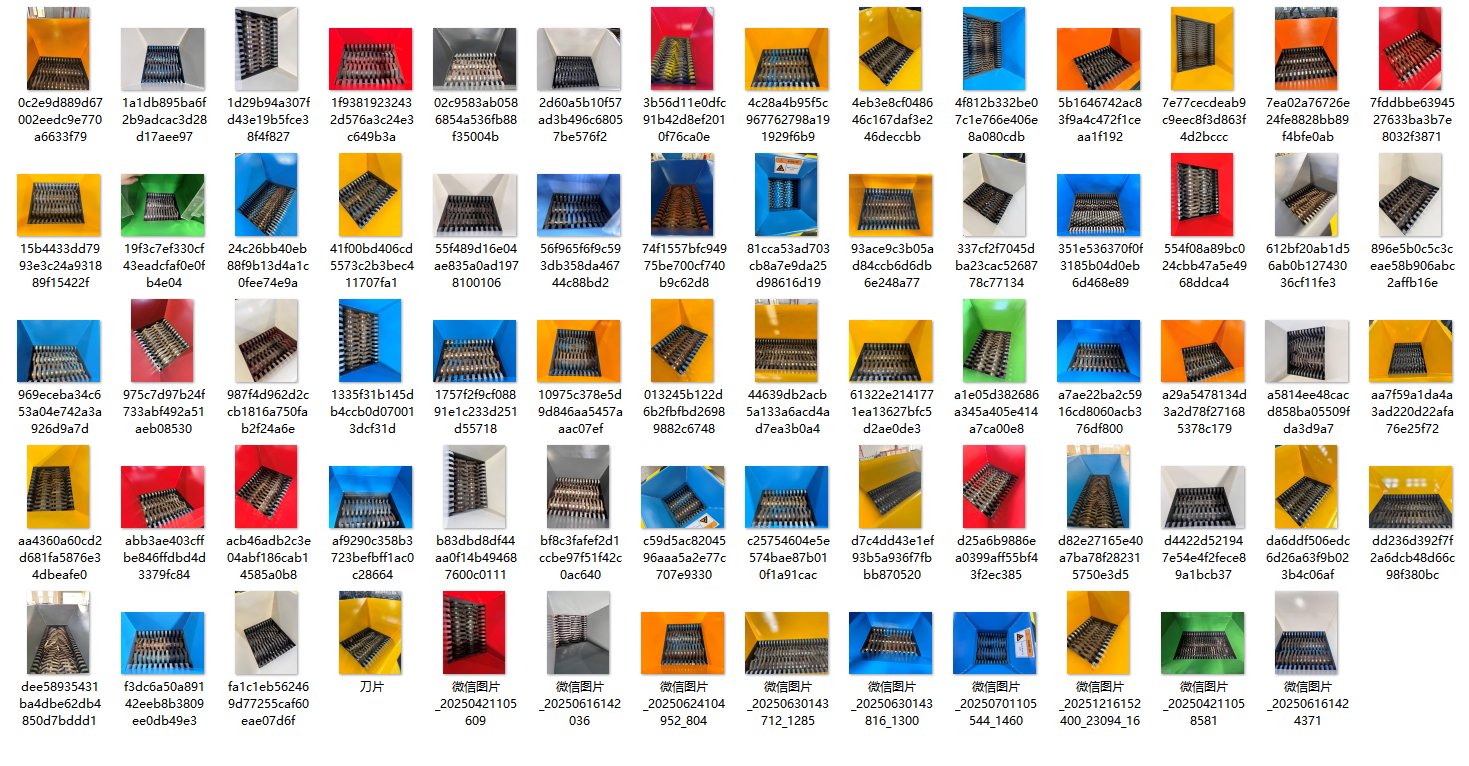

Blade Systems

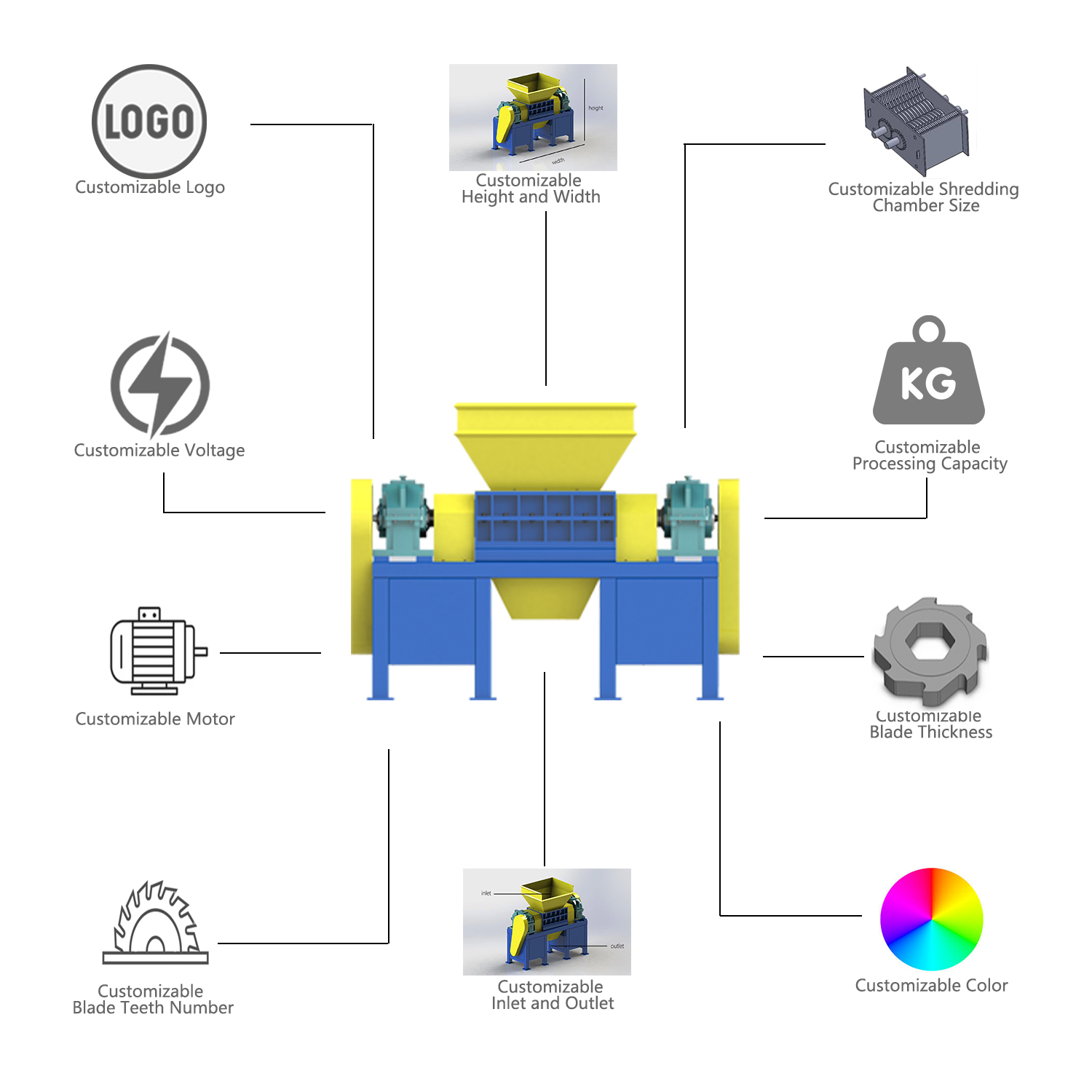

We support full customization, design customization, and sample customization to meet your specific industrial needs.
Siemens, ABB, WEG motors available. Schneider or Siemens electrical components for steady 24-hour operation. PLC systems optional for auto-reverse protection.
Customizable processing capacity, chamber size, and blade configurations (teeth number and thickness).
Customizable inlet/outlet sizes (with curtains, lids, or drawers), adjustable heights, and widths to fit your facility's trash containers.
Customizable colors and logo placement available for all models.

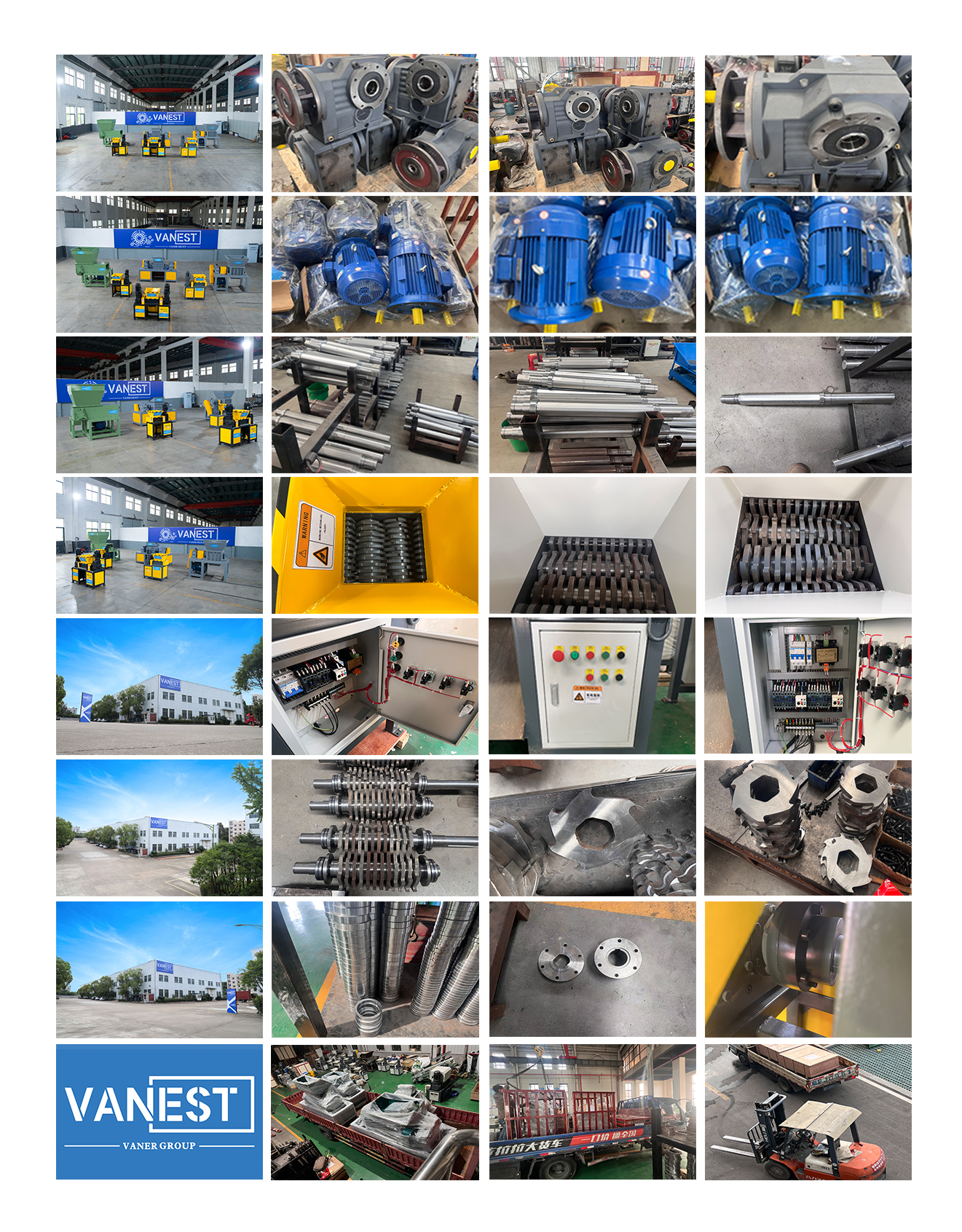

Full copper core motors with low energy consumption and strong power for extended service life.
High-quality planetary gearbox with high torque. Low speed and lower noise operation, suitable for indoor and outdoor use.
Hexagonal or octagonal shafts made of special alloy material for smooth operation and durability.
Made of alloy materials (55SiCr, HD13, SKD-11). Detachable cutting heads for easy maintenance and replacement.
Automatically detects running data and controls forward/reverse functions to ensure smooth operation.
Robust transmission linked by coupling to reduce vibration and protect the spindle and reducer.
| Model | V-EB180 | V-EB300 | V-EB400 | V-EB500 |
|---|---|---|---|---|
| Motor | 1.5KW | 3KW | 4KW | 11KW |
| Voltage | 220v 50hz 1phase | 3phase/1Phase -Plug | 380v 60hz 3phase | 380v 60hz 3phase |
| Reduction box | K47 | K77 | JL3#-12 | JL4#-12 |
| Input rotary speed | 25rpm/min | 16rpm/min | 12rpm/min | 21rpm/min |
| Max input torque | 400Nm | 1628Nm | 2919Nm | 4574Nm |
| Blades details | Φ90*8 / 9CrSi | Φ180*12 / 9CrSi | Φ180*15 / 9CrSi | Φ200*20 / 9CrSi |
| Blades quantity | 21 pieces | 24 pieces | 26 pieces | 24 pieces |
| Feeding hole size | 180*190mm | 500*500*300mm | 600*500*300mm | 700*700*350mm |
| Machine weight | 120KG | 400KG | 500KG | 800KG |
* Different models are used for different materials. Please consult based on your specific raw materials.
