Premium ISO Certified Protective Gear for Molten Metal Safety

1 / 5

Premium ISO Certified Protective Gear for Molten Metal Safety

Customization:	Available
After-sales Service:	Lifetime
Warranty:	365 Days

Send Inquiry

Product Description

Basic Info

Model NO.

MMS

Max Diameter of Workpiece

<500mm

Mass Scope of Workpiece

<900kg

Type

Protective Clothing Test Equipment

Maxcapacity

<1000KN

Accuracy Grade

0.5

Load Way

Electronic Load

Loading Method

Dynamic Load

Display

Digital

Control

Computer Control

Weight

0-100Kg

Power Source

AC220V

Oil Cylinder Position

Reference Standards

ISO 9150, En 348

Description

Molten Metal Splashes Resistant Test Equipment

Function

Determine Behaviour of Splashes of Molten Metal

Test Object

Protective Clothing, Textile

Application Field

Safety Protection

Features

ISO9150 Molten Metal Splashes Resistant Test Equip

Dimension

500mm(W) * 700mm(H) * 500mm(D)

Gas Supply

Oxygen and Acetylene

Power Supply

230 Volts Nominal 10 AMPS

Delivery Lead Time

15 Days

Trade Term

Fob, CIF, DDU, EXW

Payment Term

30% T/T as Deposit, The Balance Before Delivery

Shipping Method

by Air or Express

Customized Service

OEM

Language

English

Transport Package

Packed in Veneer Case

Specification

420mm (W) x 526mm x (H) x 260mm (D)

Origin

China Mainland

HS Code

9031809090

Production Capacity

10 Set / Month

Packaging & Delivery

Package Size

80.00cm * 90.00cm * 80.00cm

Package Gross Weight

70.000kg

Product Description

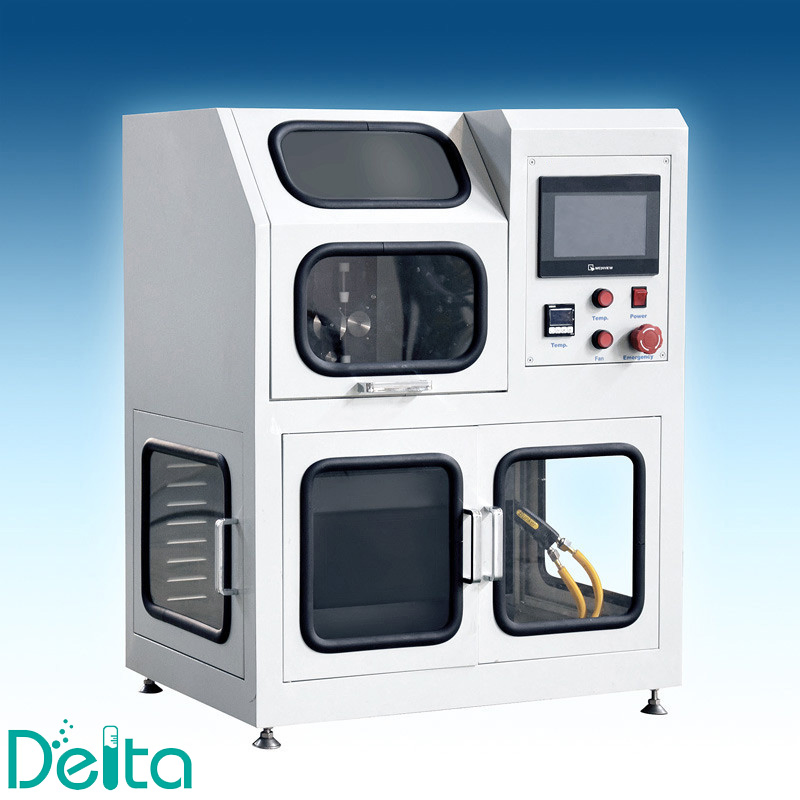

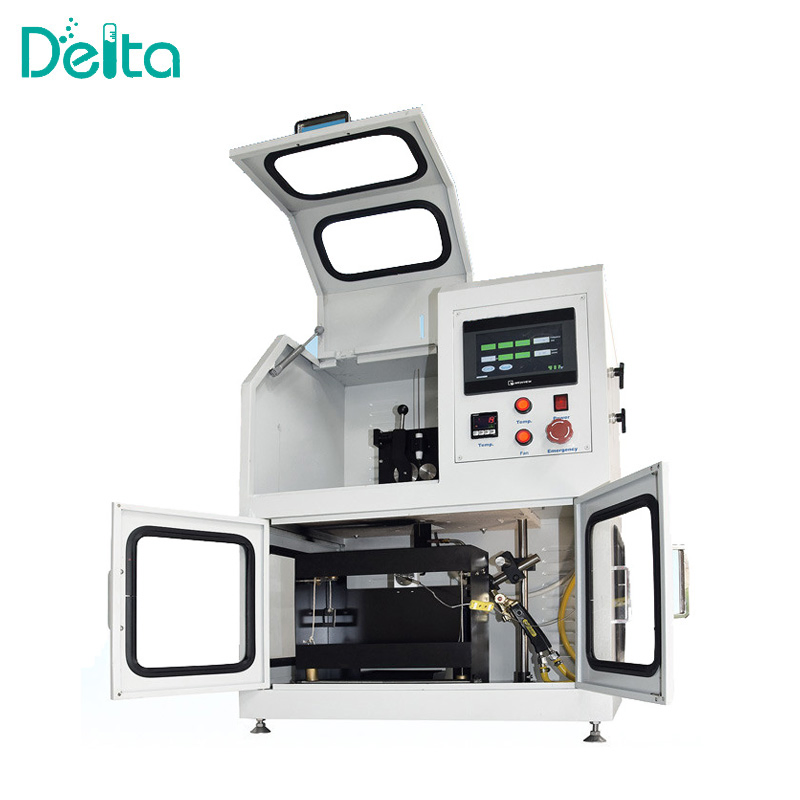

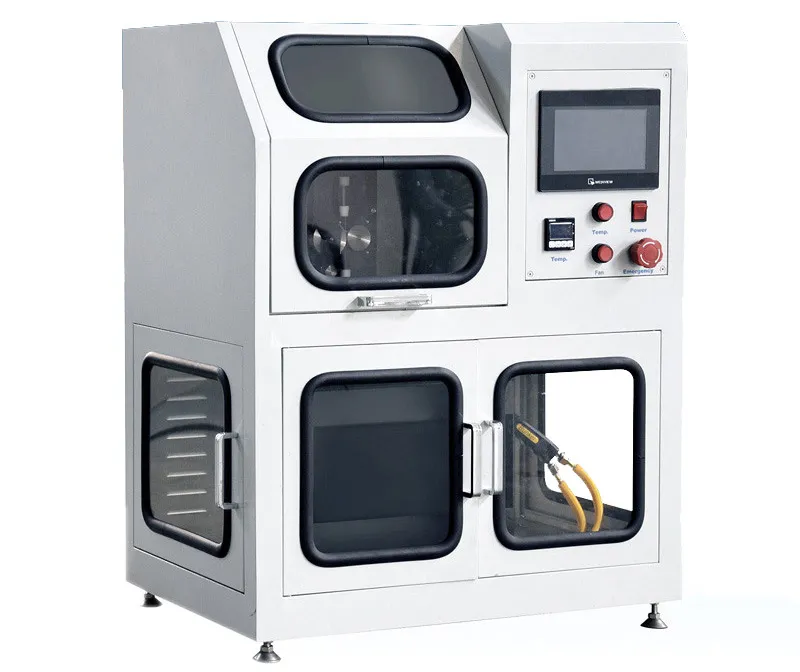

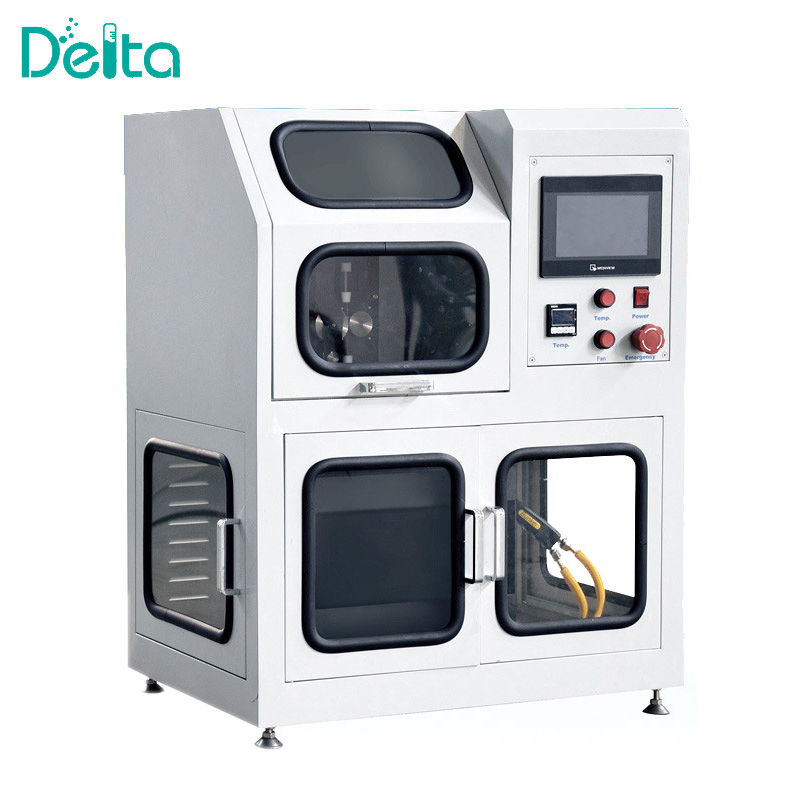

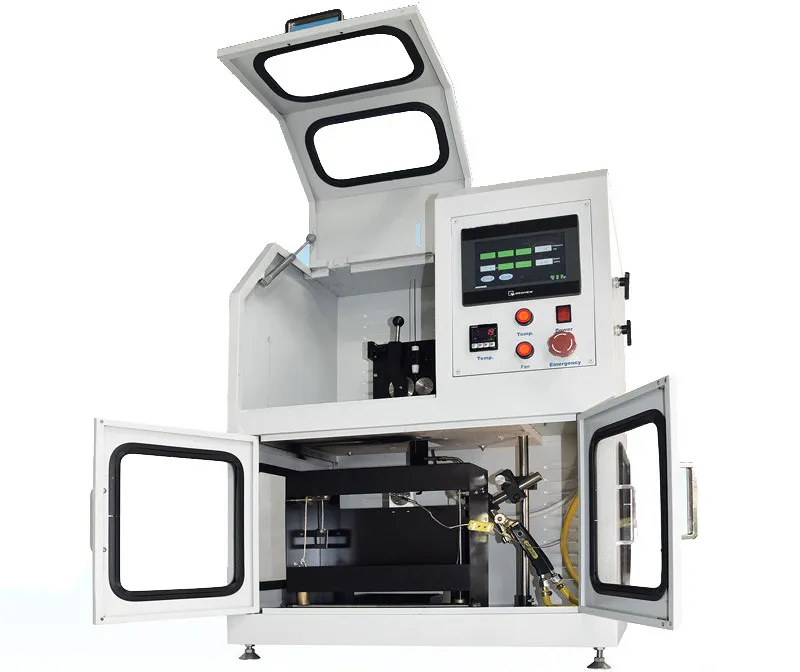

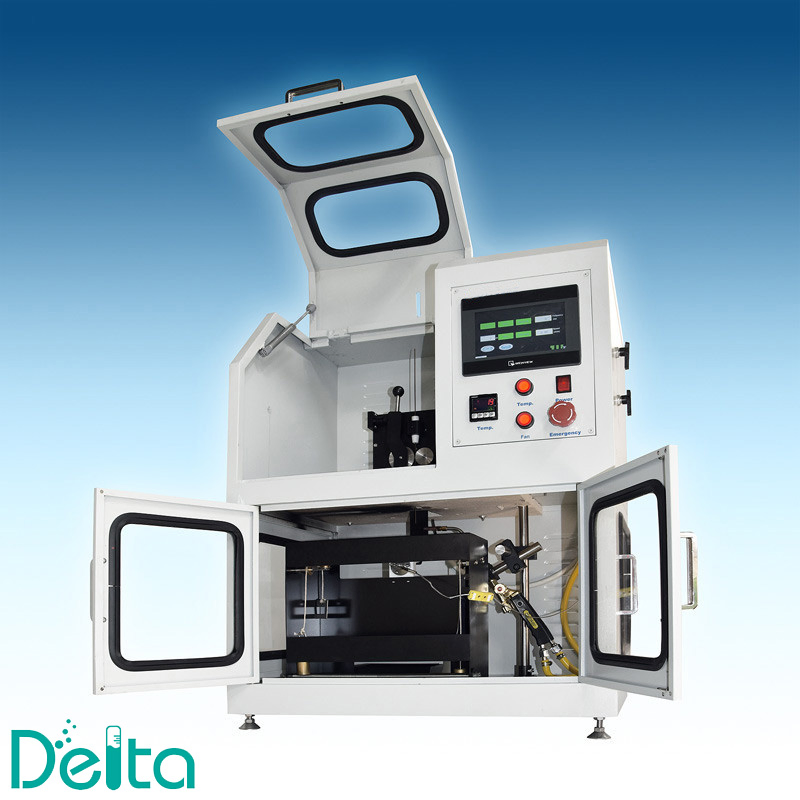

MMS ISO Protective Clothing Molten Metal Splashes Resistant Test Equipment

It is suitable to measure the resistance of protective materials to liquid metal splash. During test, certain molten metal splashes on sample which is installed at specified angel. Put a PVC film on the sample's back to contact it.

Record the change of PVC film after splashing to evaluate the damage situation. According to test result, using bigger or smaller metal to repeat the test until the damage of PVC film is least.

Product Parameters

No.	Item Name	Specifications
1	Application field	Safety protection
2	Reference standards	ISO 9150, EN 348
3	Dimension	500mm(W)X 700mm(H)X 500mm(D)
4	Weight	42kg
5	Power supply	230 volts Nominal 10 Amps
6	Ambient temperature	Operating 25±5ºC
7	Gas supply	Oxygen and acetylene

Features

Melt the metal with furnace having induction coils and high frequency generator.
Far IR temperature measuring device is used to control temperature and measure splashing temperature.
Temperature is set at 700°C~1800° by temperature controller.
Step motor controls inclination speed and angel.
Drop guide to collect the drops and to guide them towards the vertically oriented test specimen.
Senor for measuring the temperature linked to a recording device.
Holding frame and counterweights for the test specimen.
Motor speed can be adjust so that the steel rod is fed at the rate of (10 f 1) g/mm.
Needle valves adjust the O2 and acetylene flow rate.
LCD Screen display and control the motor speed.

Detailed Photos

After Sales Service

• Warranty period for all products is One year;

• Within warranty period, all quality problems of the instrument shall be repaired free of charge;

• Beyond warranty period, responsible for life-time maintenance, only the cost of the accessories will be charged;

• User manual will be sent with the tester, some testers have demo for review.

• If users have question on operation, we supply on-line video training. Users can also get free training.

Frequently Asked Questions (FAQ)

What testing standards does this equipment comply with?

This equipment fully complies with international reference standards including ISO 9150 and EN 348 for determining the behavior of materials impacted by molten metal splashes.

How is the temperature controlled during the splash test?

The system features a high-precision Far IR temperature measuring device and temperature controller, enabling exact adjustments within a range of 700°C to 1800°C.

What utility and gas supplies are required to operate the system?

The equipment requires a power supply of 230 Volts Nominal 10 AMPS (or AC220V) and a steady gas supply of Oxygen and Acetylene to perform the induction heating processes.

How does the device assess the level of material damage?

A PVC film is attached to the back of the test sample. After the molten metal impacts the sample at a specified angle, the physical changes on the PVC film are inspected to evaluate resistance performance.

What does the after-sales service and warranty cover?

We offer a comprehensive 1-year warranty covering all quality-related instrument issues free of charge. Beyond the warranty period, we provide life-time maintenance support where only accessory costs are charged.

Is training provided for operators unfamiliar with the system?

Yes, each tester comes with a comprehensive user manual, and selected systems include demo materials. We also offer online video training sessions as well as factory training opportunities.
