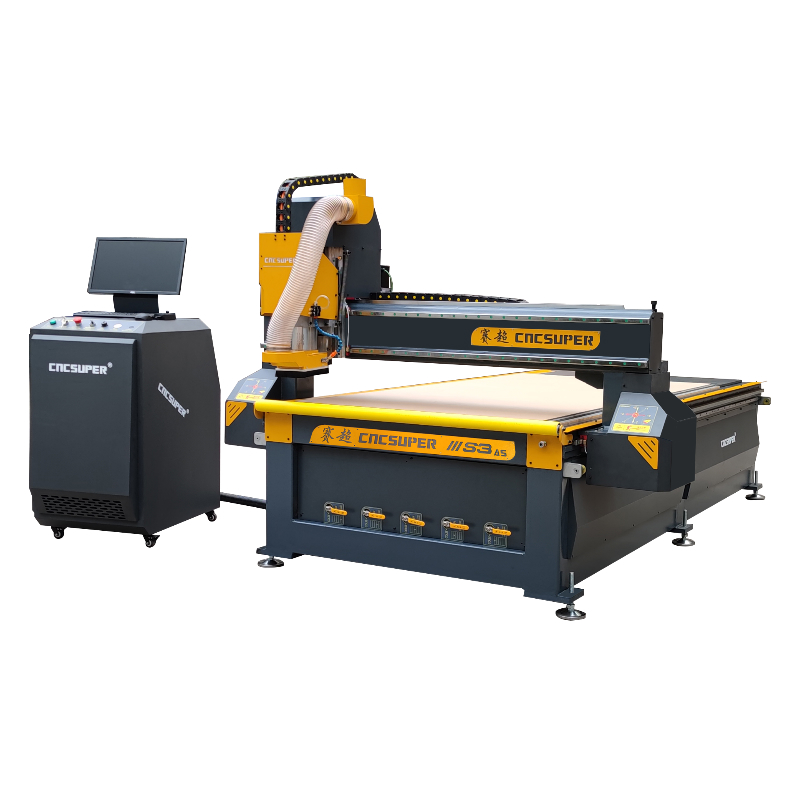

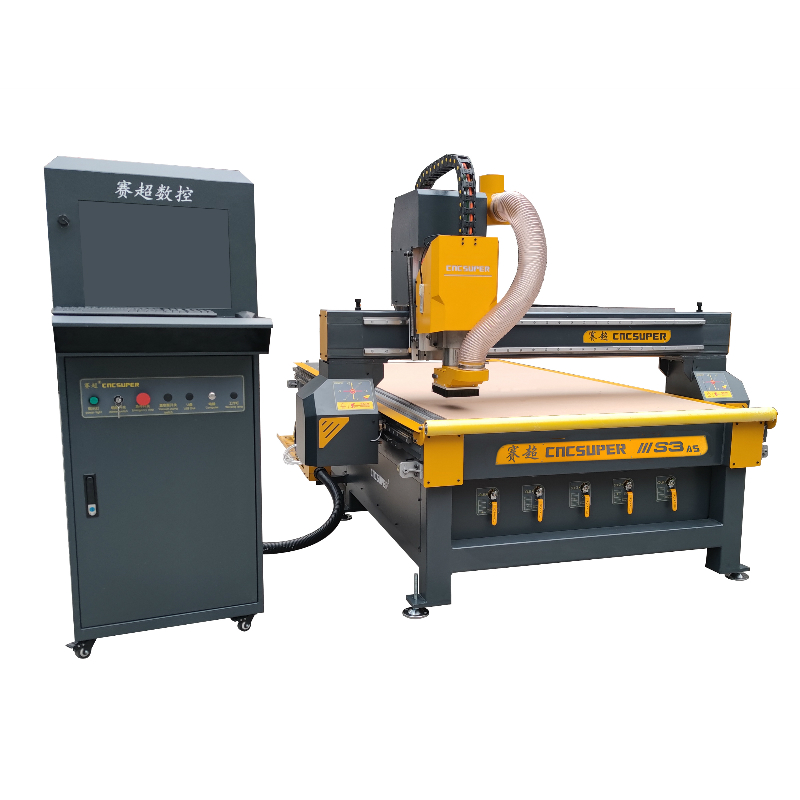

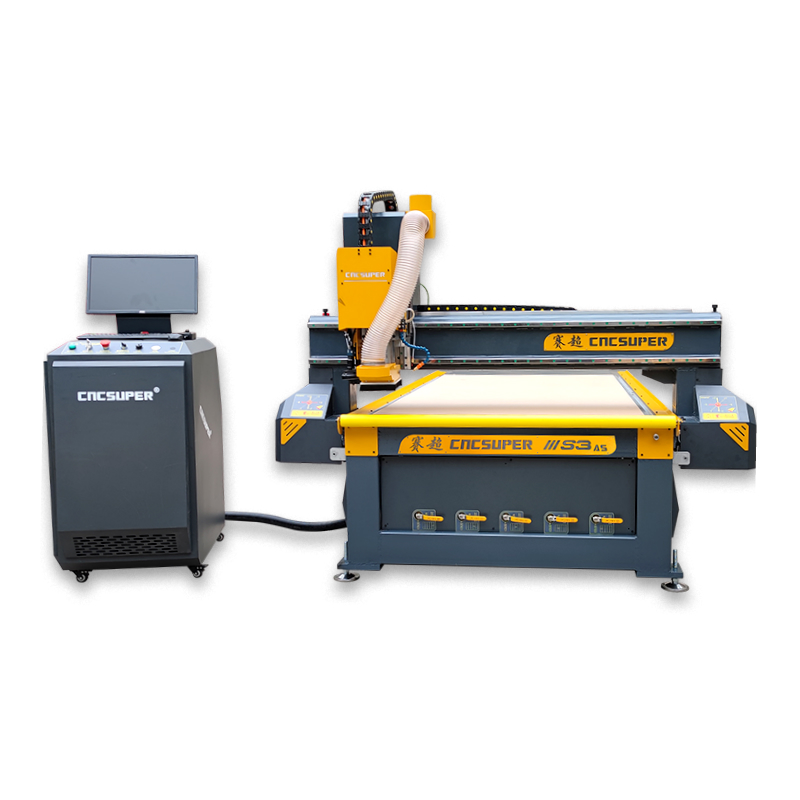

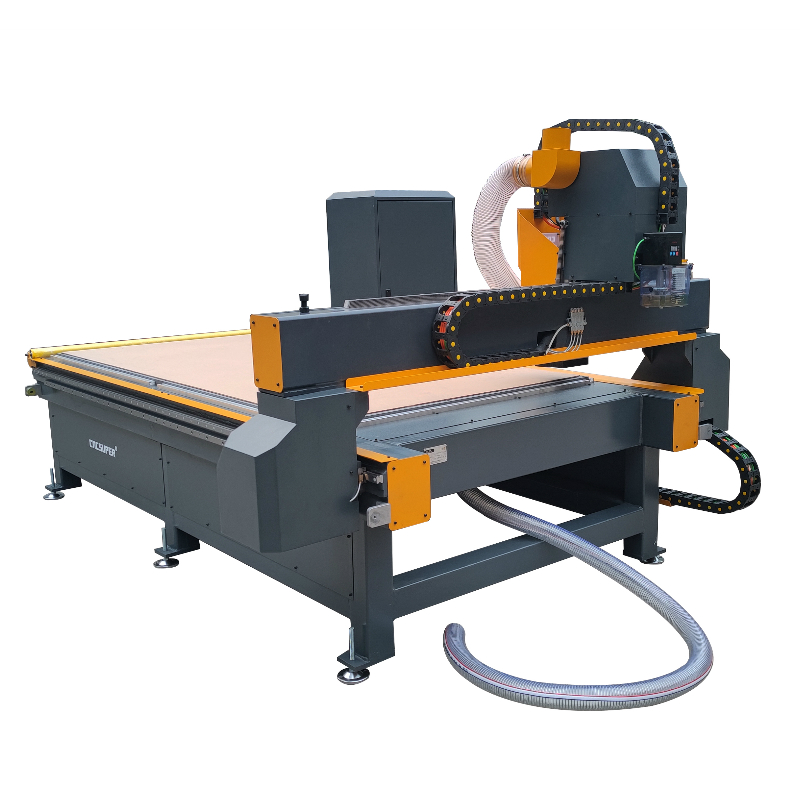

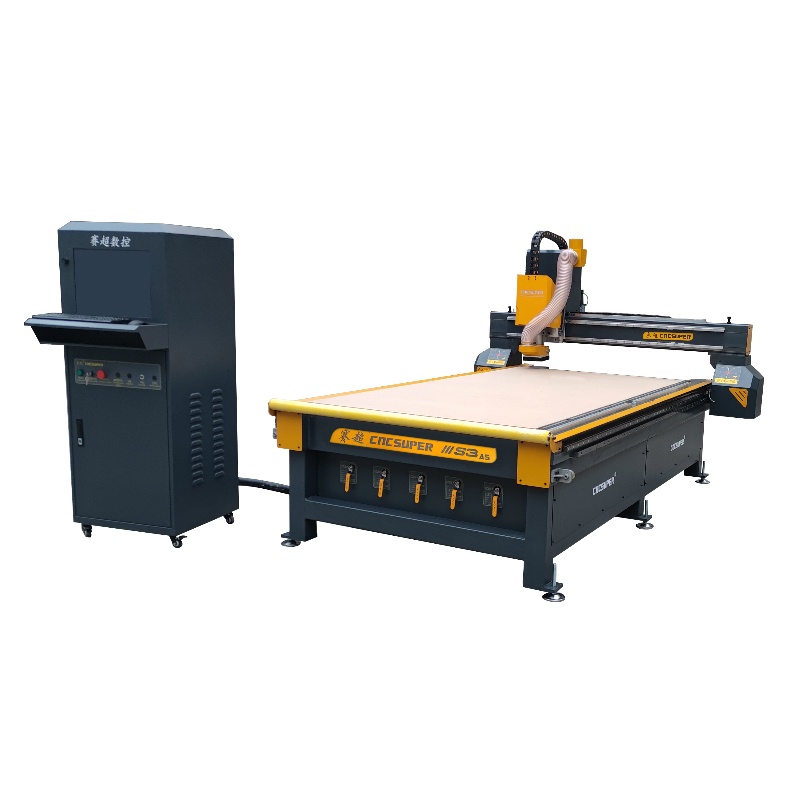

2024 New High Precision Furniture Woodworking 1530 Woodworking CNC Machine
2024 New High Precision Furniture Woodworking 1530 Woodworking CNC Machine
2024 New High Precision Furniture Woodworking 1530 Woodworking CNC Machine
2024 New High Precision Furniture Woodworking 1530 Woodworking CNC Machine
2024 New High Precision Furniture Woodworking 1530 Woodworking CNC Machine
1 / 5
2024 New High Precision Furniture Woodworking 1530 Woodworking CNC Machine
2024 New High Precision Furniture Woodworking 1530 Woodworking CNC Machine
2024 New High Precision Furniture Woodworking 1530 Woodworking CNC Machine
2024 New High Precision Furniture Woodworking 1530 Woodworking CNC Machine
2024 New High Precision Furniture Woodworking 1530 Woodworking CNC Machine

2024 New High Precision Furniture Woodworking 1530 Woodworking CNC Machine

Send Inquiry

Product Description

High Precision Woodworking 1530 CNC Machine

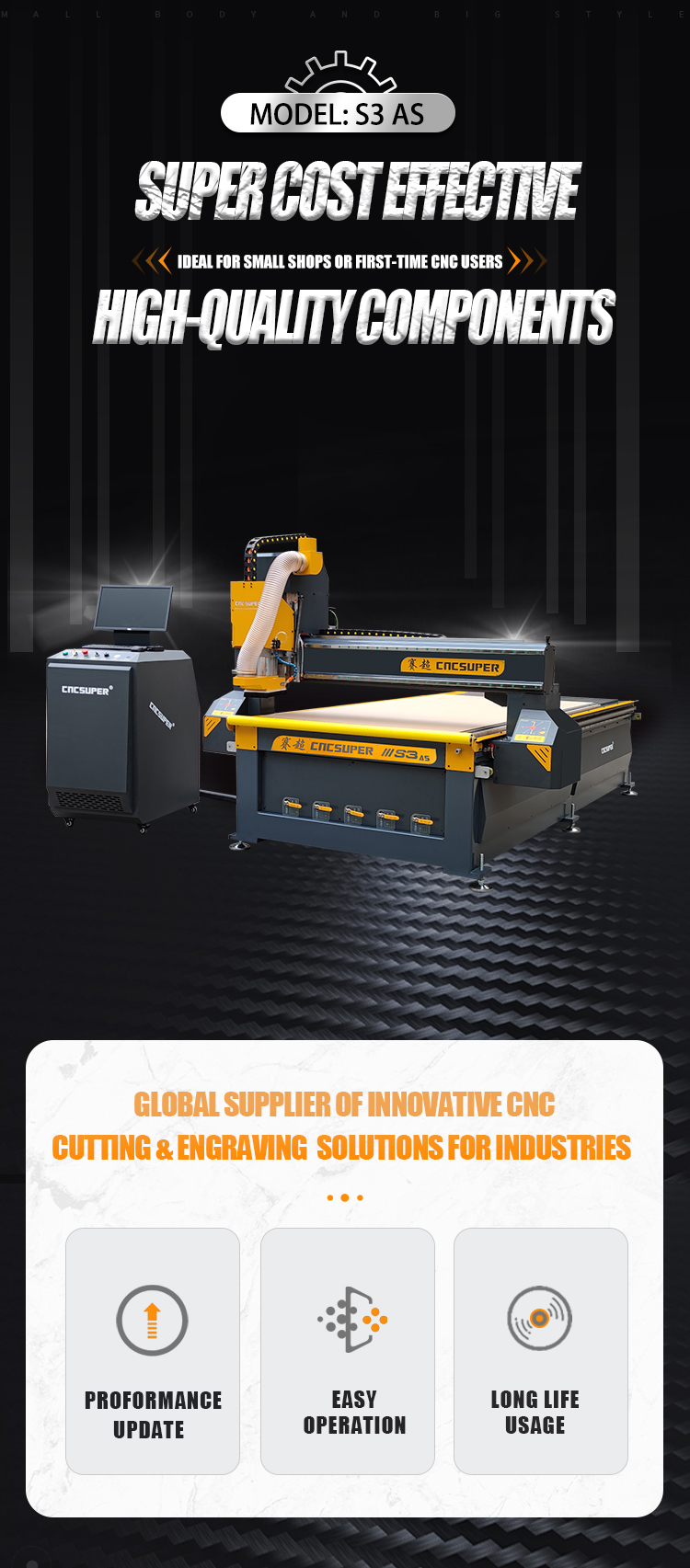

Woodworking CNC Machine
⚙️ Main Features
01
Industrial seamless welded structures design with finite element analysis and low temperature annealing for maximum strength and rigidity.
02

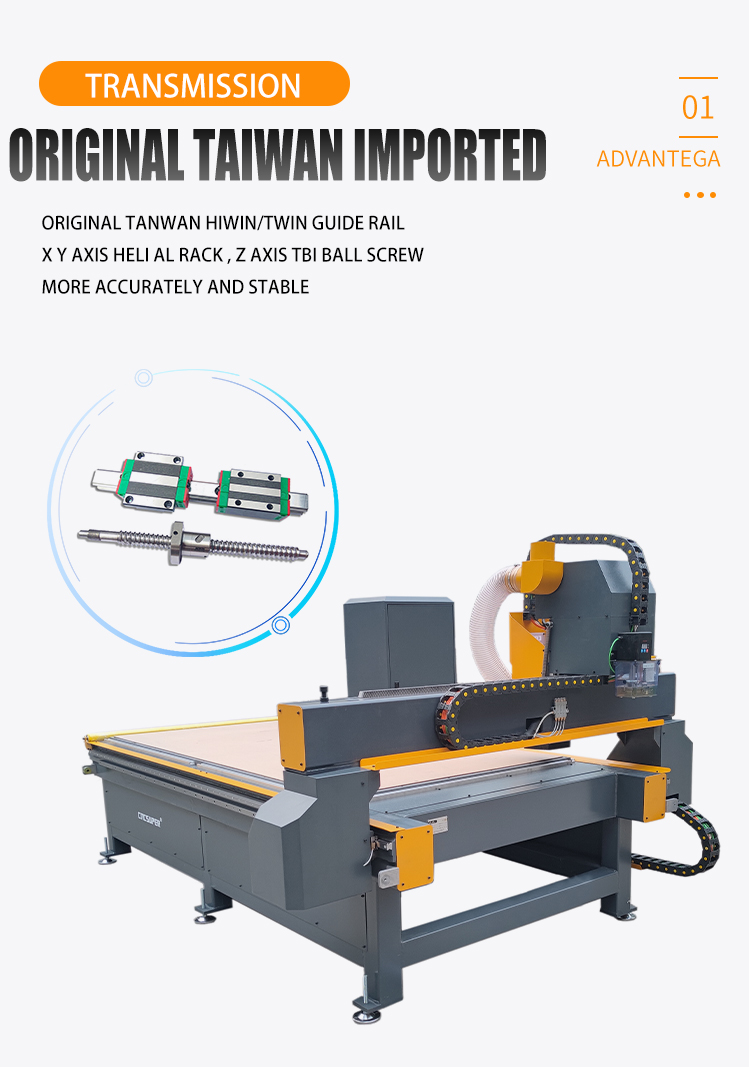

X, Y axis feature imported high precision helical rack and pinion; Z axis utilizes TBI ball screw transmission.
03
6PCS adjustment footpad design ensures perfect leveling and long-term processing precision.
04
Independent control cabinet isolates heavy and weak currents for simplified maintenance and safety.
05
Excellent Software Compatibility: Works with Type3, Casmate, Artcam, Wentai, JD paint, and more.

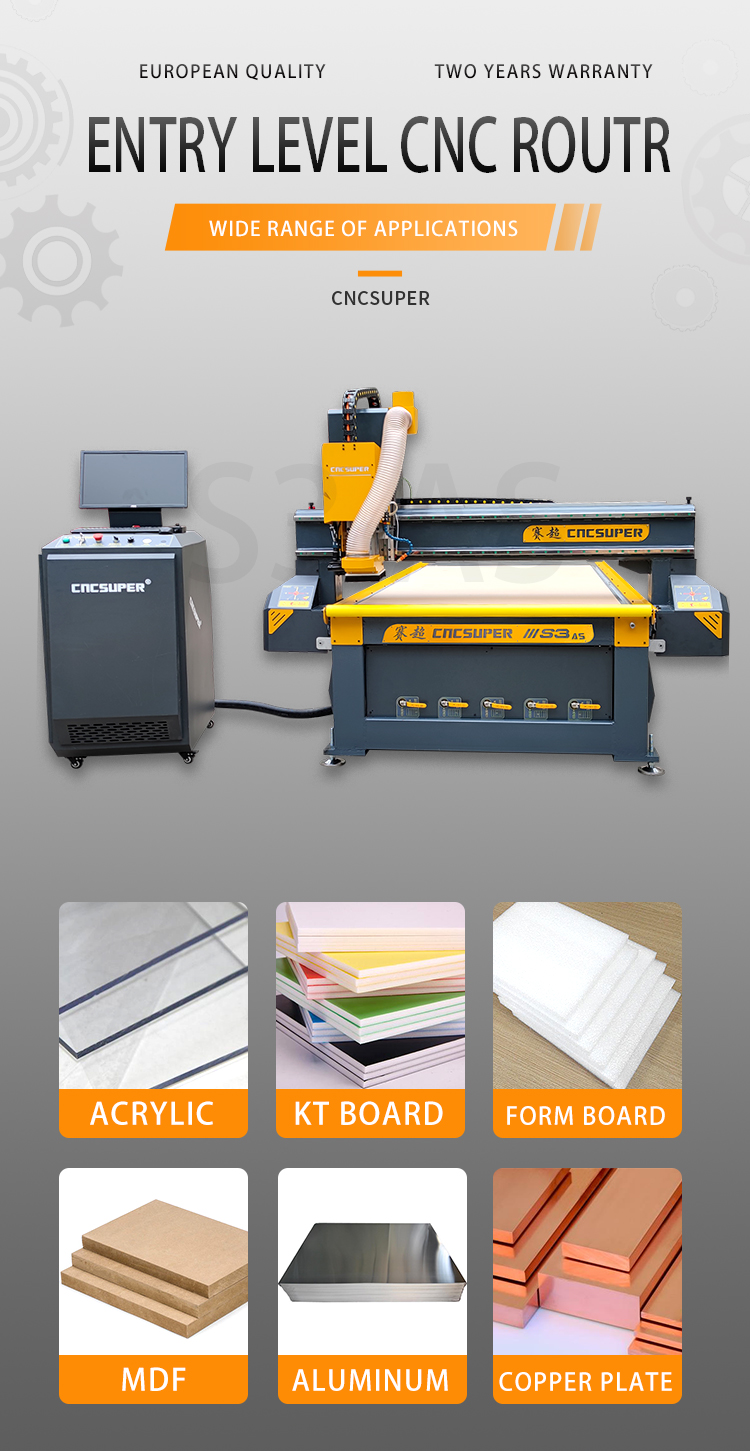

Features Detail
📊 Technical Parameters
Description Parameter Details
XYZ Working Area1300*2500*200mm (4*8ft)
Optional Working Area1500*3000mm / 2000*3000mm / 2000*4000mm
Lathe StructureStandard seamless welded structure
GuidesOriginal TAIWAN guide (XY 25#, Z 20#)
Z StructureOriginal TAIWAN TBI Ball Screw
Positioning Accuracy±0.05/300mm
Table Type5 zones vacuum table plus T-slot
Vacuum Pump7.5KW water vacuum pump
Max. Speed25000mm/min

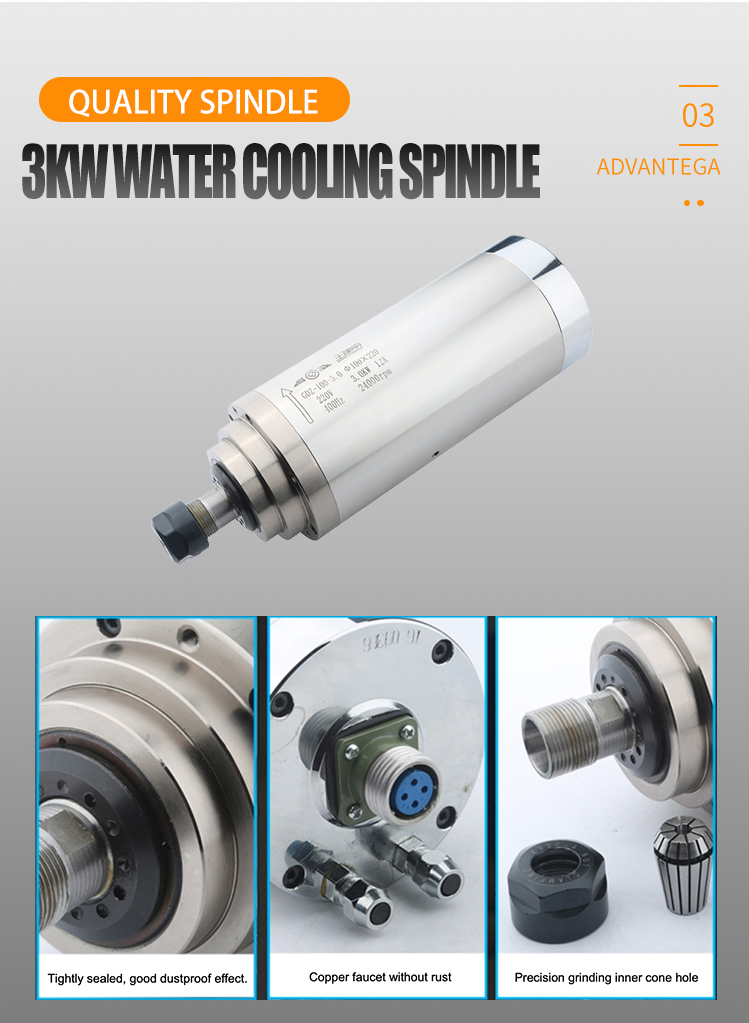

Spindle Power3KW water cooling (optional 5.5/7.5KW or air cooling)
Spindle Speed24000RPM

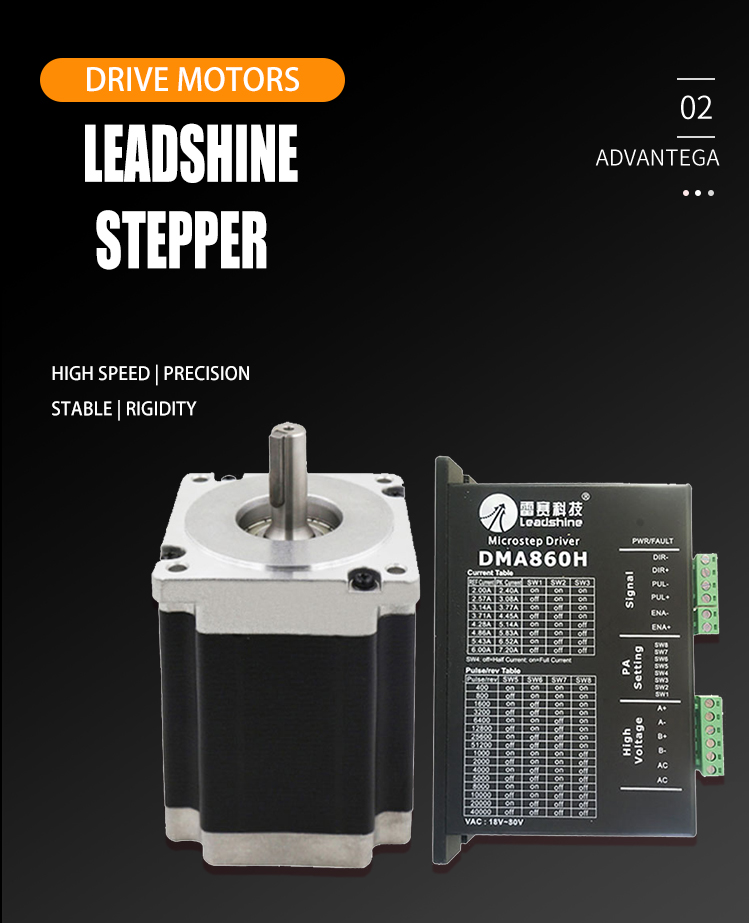

Drive SystemFL118 Motor and Leadshine 860Hs

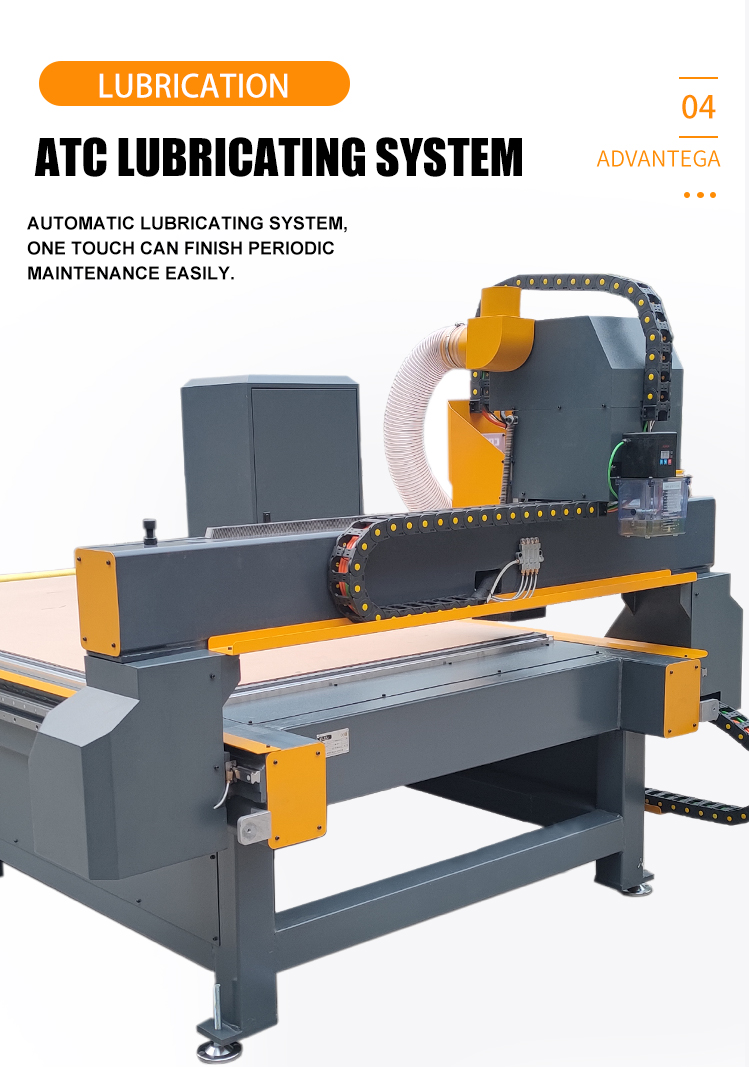

LubricationAutomatic lubrication system
Working Voltage220V / 380V
Operating SystemNC STUDIO / DSP control system
Weight1200KG
⭐ Advantages
Advantage 1
Advantage 2
Advantage 3
Advantage 4
🛠️ Applications
1. Wood/Furniture: Wave Plate, MDF, antique furniture, wooden doors, screens, cupboard doors, interior doors, and headboards.
2. Advertising: Identification, sign making, acrylic engraving/cutting, crystal words, and display derivatives.
3. Industry: Sculptures of copper, aluminum, iron, artificial marble, granite, plastic sheeting, PCB, and PVC.
4. Artwork: Wood crafts, gift boxes, and jewelry boxes.
5. Others: Relief sculpture and 3D engraving.
Applications
🔥 Hot Sales
Product 1 1

220V/380V Advertising CNC Router

Product 2 2

High Precision ATC Wood Router

Product 3 3

Automatic Tool Sensor ATC Router

🏢 Production & Packing

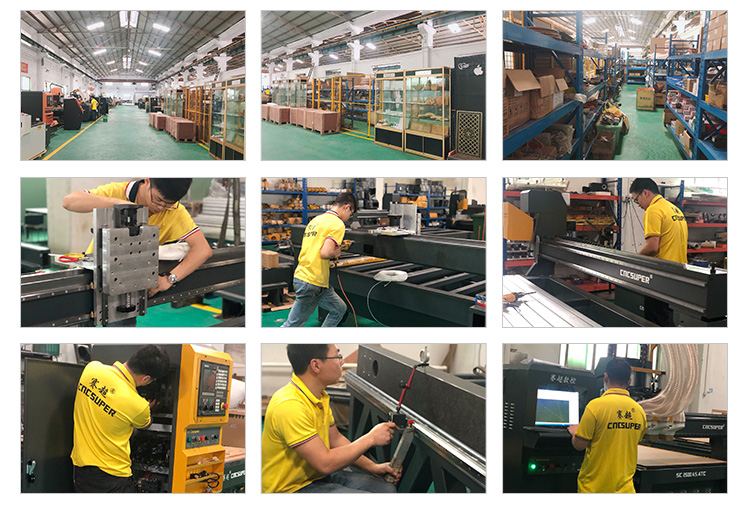

Production
Factory 1
Factory 2
Factory 3
Factory 4
Packing Delivery

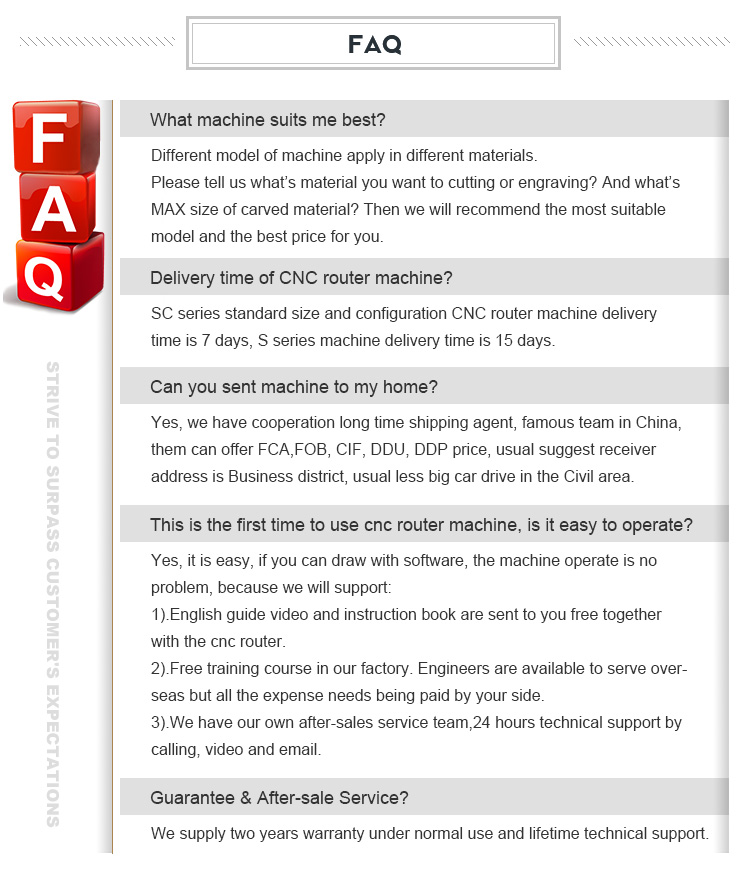

Frequently Asked Questions
What is the main working area of this machine?
The standard working area is 1300*2500*200mm (4*8ft), but we also offer larger options such as 1500*3000mm and 2000*4000mm.
What materials can this CNC machine engrave and cut?
It is highly versatile, capable of processing wood, MDF, acrylic, copper, aluminum, PVC, and various composite materials.
Which control systems are compatible with this model?
The machine supports NC STUDIO and DSP control systems, providing flexibility depending on your operational needs.
Does the machine include a vacuum table?
Yes, it features a 5-zone vacuum table combined with T-slots to provide superior workpiece stability during high-speed processing.
What design software can I use with this CNC machine?
The machine is compatible with popular industry software including Type3, Artcam, Casmate, and Wentai.
Is maintenance difficult for this industrial structure?
No, the machine is designed with an independent control cabinet and automatic lubrication system to make routine maintenance simple and efficient.
