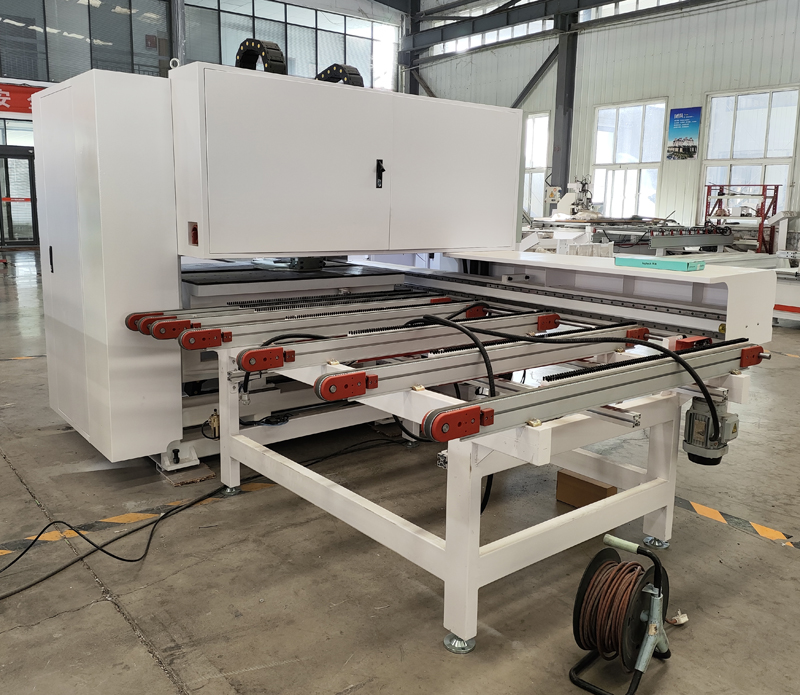

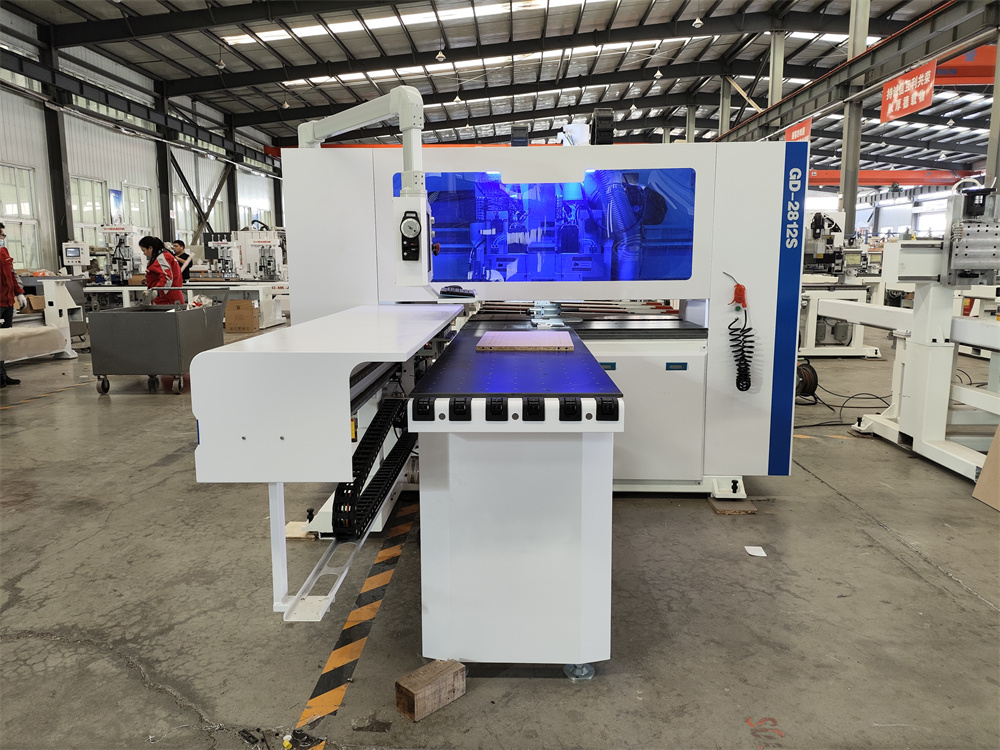

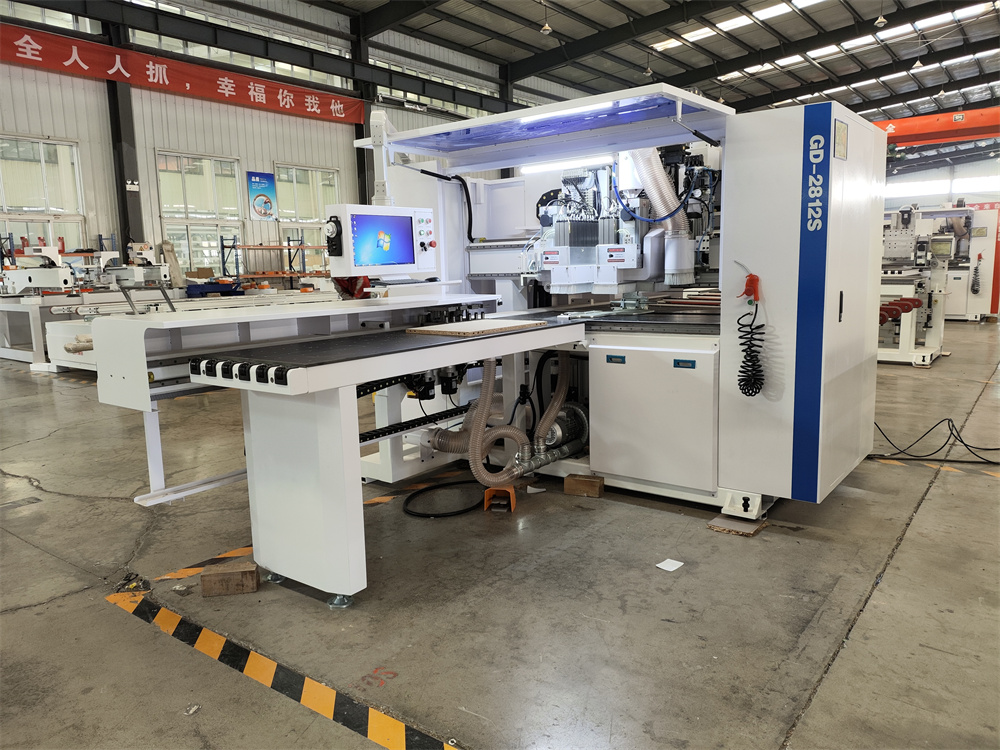

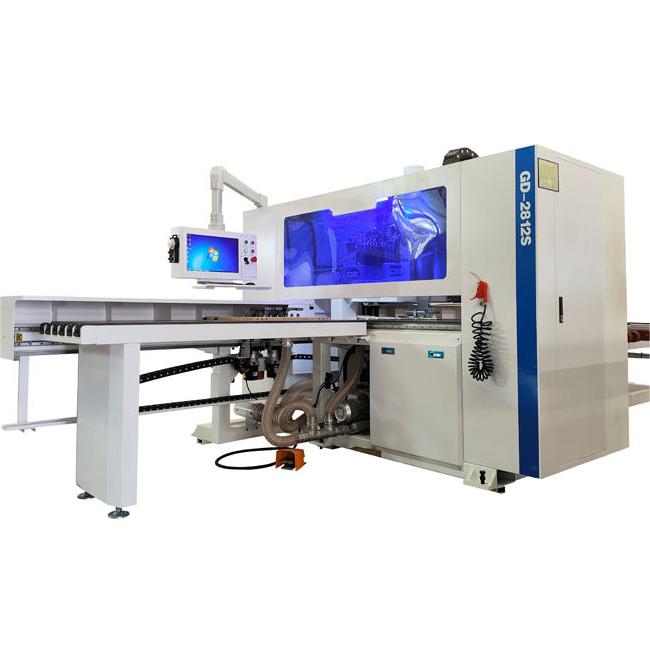

Kdt Woodworking Machinery Cnc Six Side Drilling Machine for Fluting

Send Inquiry

Product Description

Complete six sides processing and slotting and milling at one time; Easy to operate, flexible to use, and free from manual intervention.
Equipped with a rear feed roller, so the processing plate supports two directions (front and rear) to come out. As for rear direction, an optional power expenditure roller or a side roller can be selected;
Equipped with front, rear, left, right and horizontal hole machining auxiliary pressure rollers; With alll-round auxiliary pressure processing to ensure the accuracy of horizontal hole machining during workpiece processing.
Designed with vertical pressure roller to ensure the machining accuracy of vertical hole and slotting.
Manufactured with upper and lower spindles, so there is no need to turn the plate for forward and reverse slotting.
With automatic dust collector; With extra long X slide rail (5.1 m), which can reduce times of feeding and picking during long workpiece processing, and improve processing efficiency.
Allowed to be used for joint processing of hinge holes; The sheet can be mirrored on both sides within a certain thickness range. New style CNC 6 Side Multi Boring wood cabinets door woodworking six-sided drilling machine.

Specification

Working size	1300x2500mm
Spindle type	3.5KW Air Cooling Spindle*2
Number of tools	12 Vertical top drilling+8 horizontal drilling +9 bottom vertical drilling
Control system	Custom System
Driver system	Absolute servo motor
Transmission	Taiwan helical rack
X axis Travel speed	120m/min
Y axis Travel speed	80m/min
Re-positioning accuracy	±0.03mm
Software	Custom System
Working voltage	220V /380V/ 50-60HZ
Machine overall size	583227272367mm

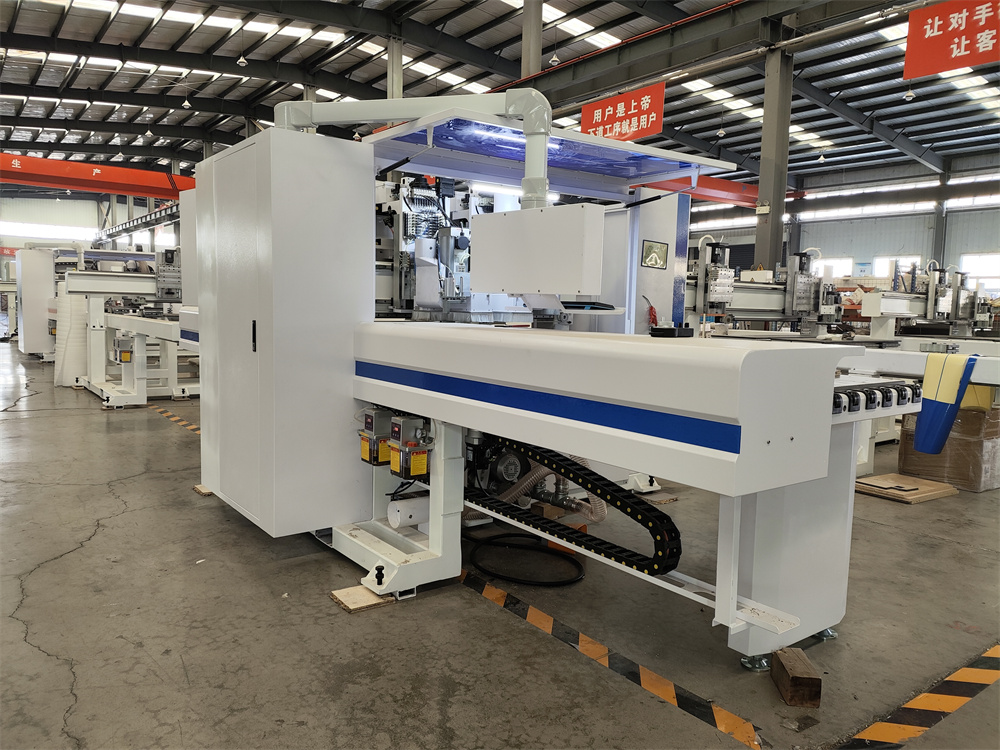

Show details

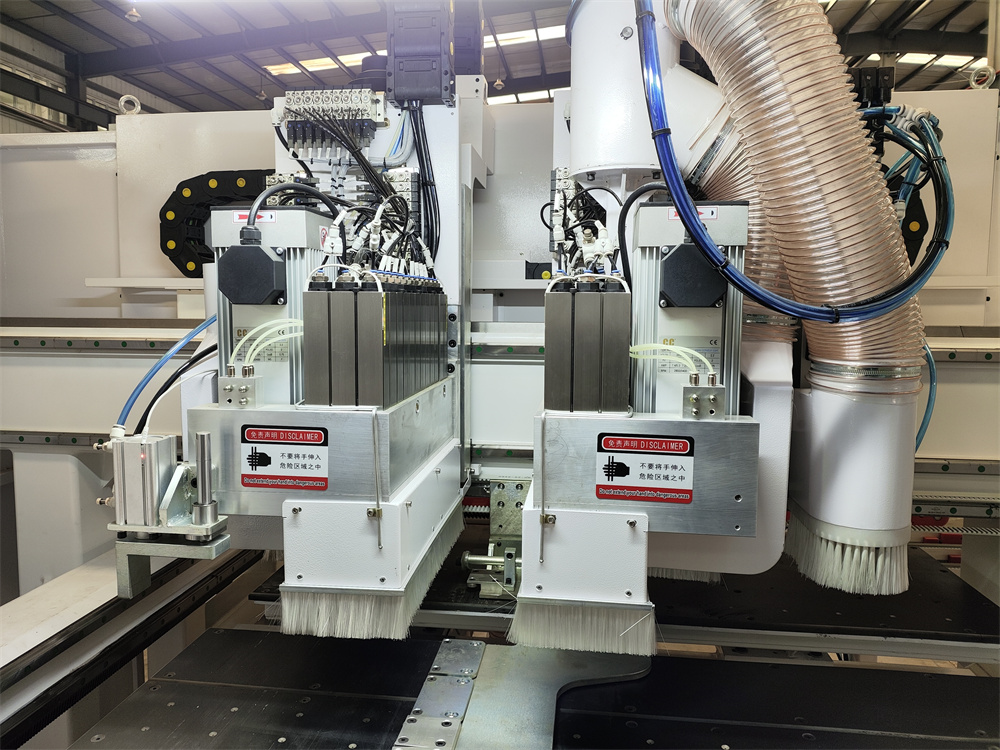

6 Sides Drilling And 2 Sides Milling

One time processing can complete panel 6-side drilling & 2-side grooving works. Six-sided machining, drilling, grooving, milling, to meet the needs of different productions.

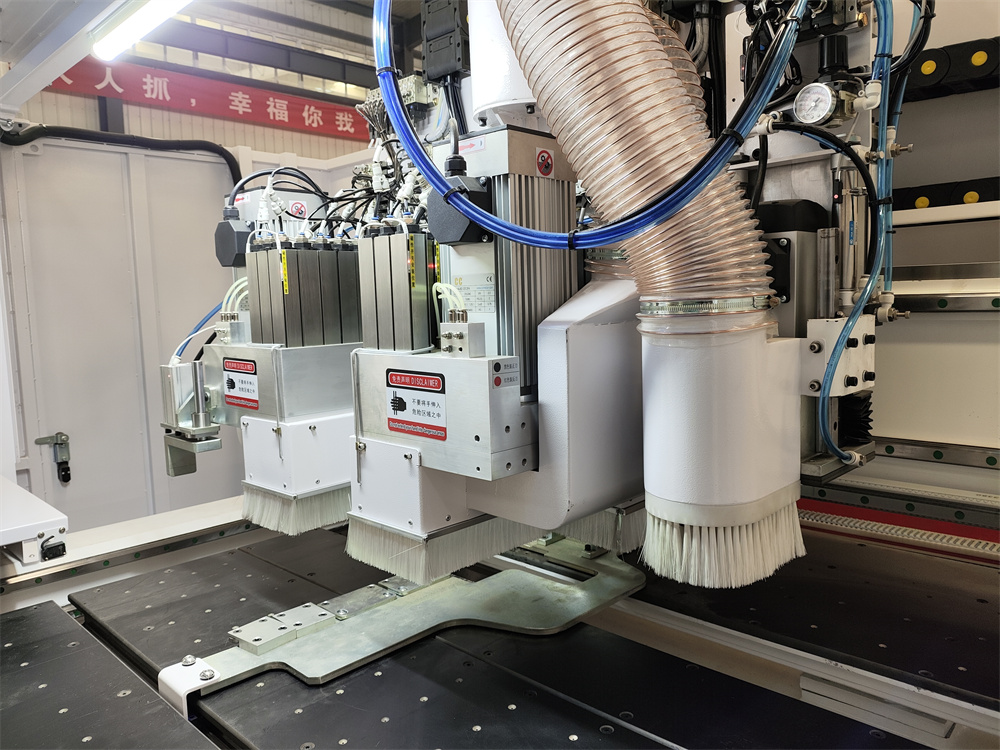

Precision Drilling Heads

Using independently developed CNC drilling heads, Manufacturing in accordance with international standards, After three-coordinate detection, the accuracy is guaranteed. One time processing can complete panel 6-side drilling & 2-side grooving works.

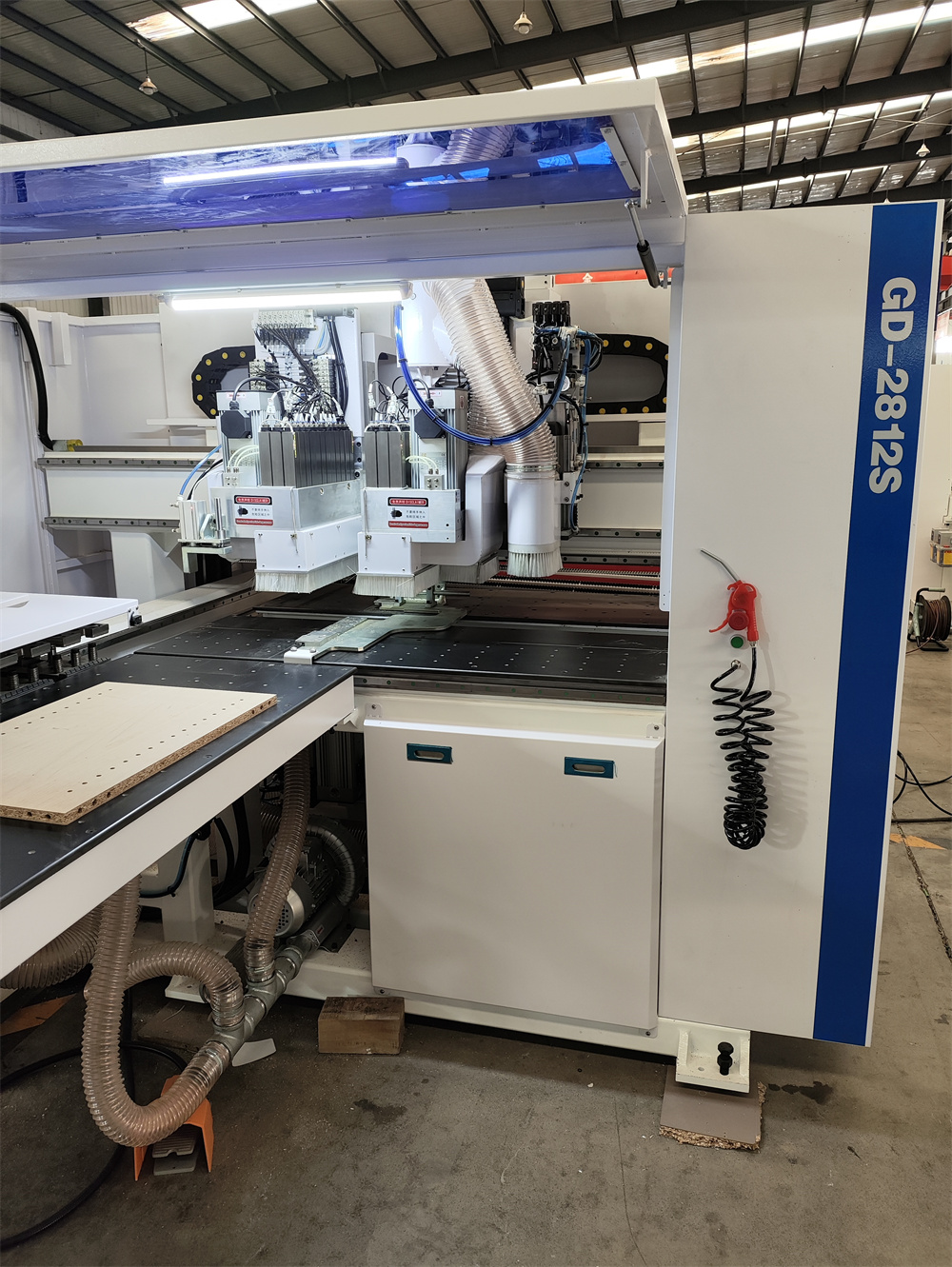

Double Clamp Feeding

Double clamps continuously feeding, automatically control the panel feeding and positioning according to the computer drilling program.
Min. process size: 250*50mm;
Max. process size: 2800*1200mm.

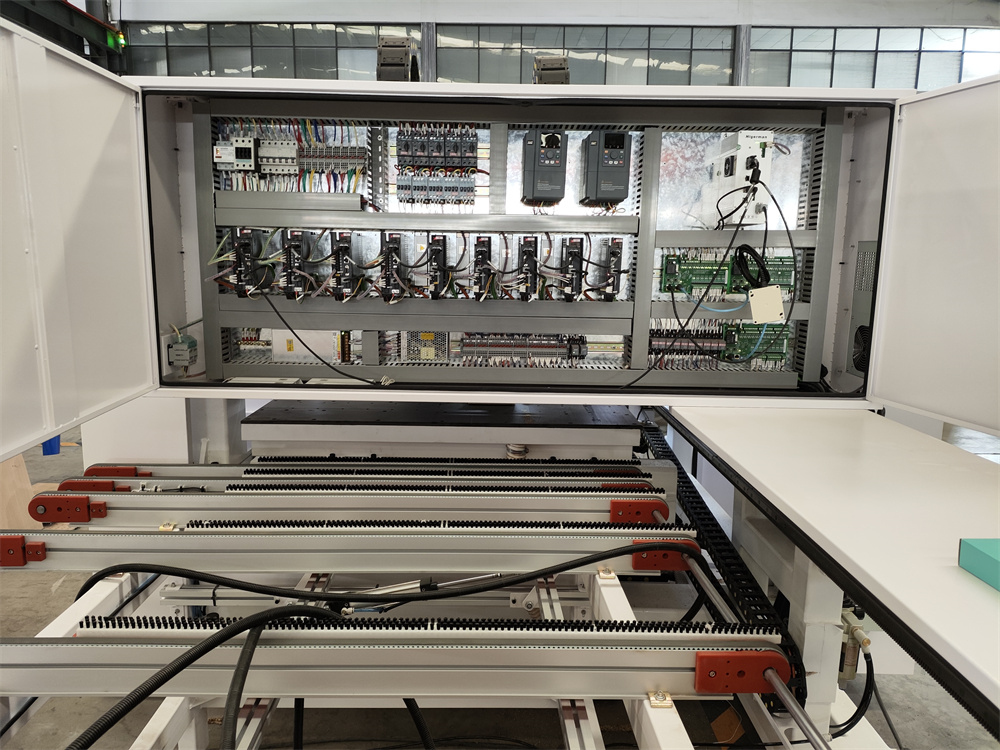

Taiwan Syntec Control System

1.Taiwan Syntec absolute value control, no need for homing, machine can be used immediately once power on.
2. High performance and stability during long service life;
3. Syntec after-sales service branches all over the world.

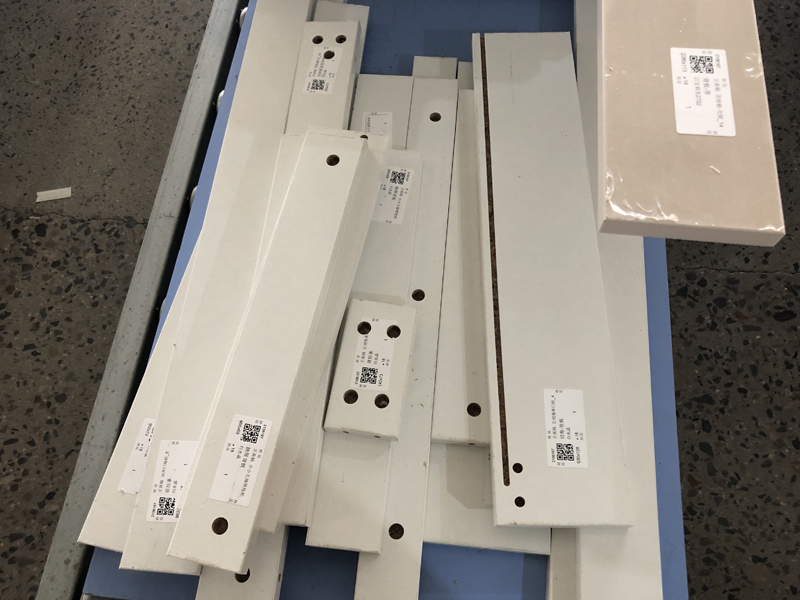

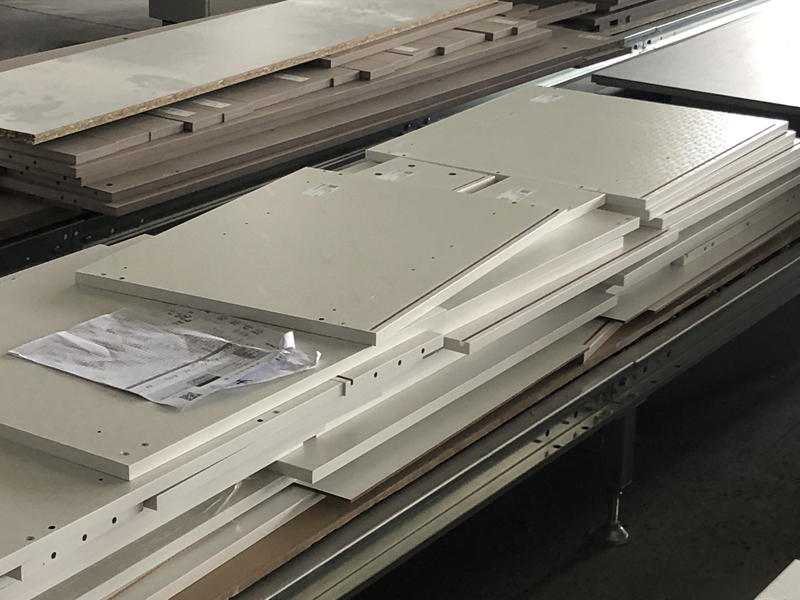

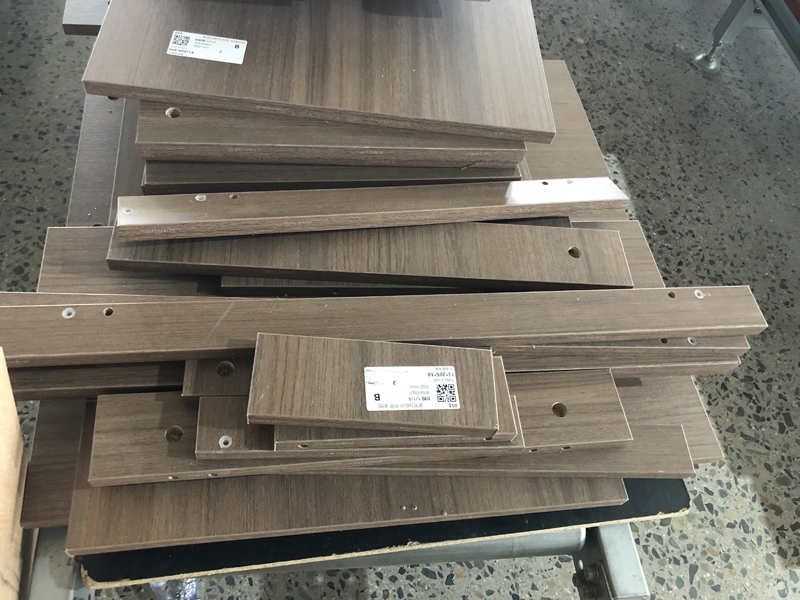

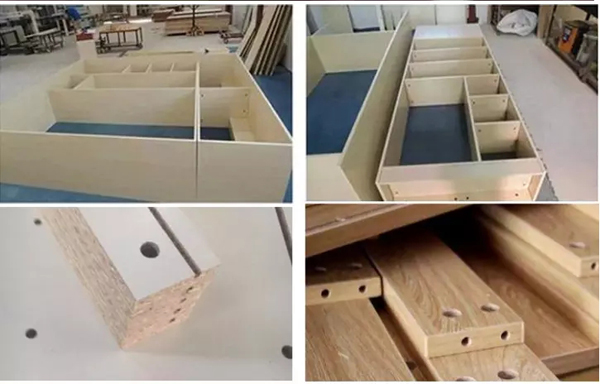

Application

Certifications

Packing and Shipping

Our Services

Frequently Asked Questions

What operations can the six-sided drilling machine complete in a single cycle?

The machine can complete panel 6-side drilling, 2-side grooving, slotting, and milling works concurrently in a single processing cycle without requiring manual flipping intervention.

What are the minimum and maximum processing panel dimensions for the double clamp feeding system?

The double clamp feeding system can process panels with a minimum size of 250*50mm and up to a maximum size of 2800*1200mm.

What are the advantages of the integrated Taiwan Syntec Control System?

The system utilizes Taiwan Syntec absolute value control, eliminating the need for homing cycles upon startup, and ensuring prolonged system stability and performance output.

How does the machine maintain accuracy for horizontal hole machining?

It is configured with dedicated front, rear, left, right, and horizontal hole machining auxiliary pressure rollers to provide full-surface pressure and optimize positioning accuracy.

Does the machine feature automated waste control mechanisms?

Yes, it comes equipped with an automatic dust collector alongside an extended 5.1-meter X-axis slide rail designed to reduce manual feeding sequences and clean internal debris automatically.
