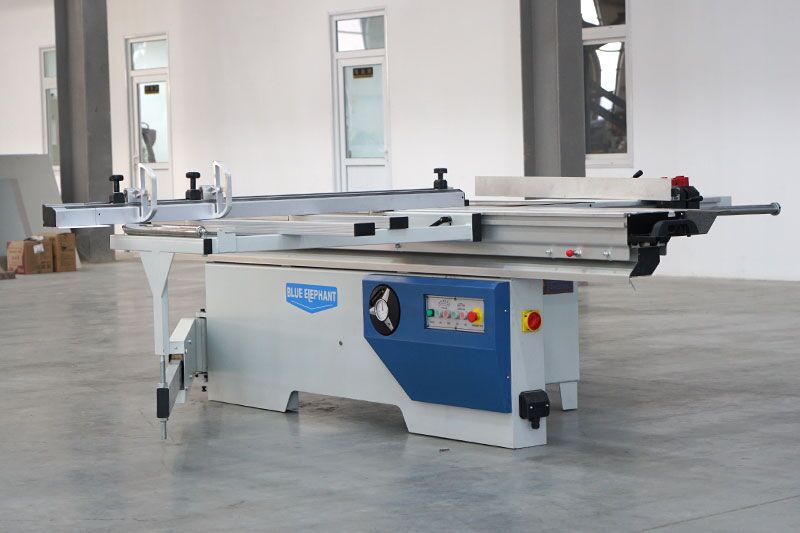

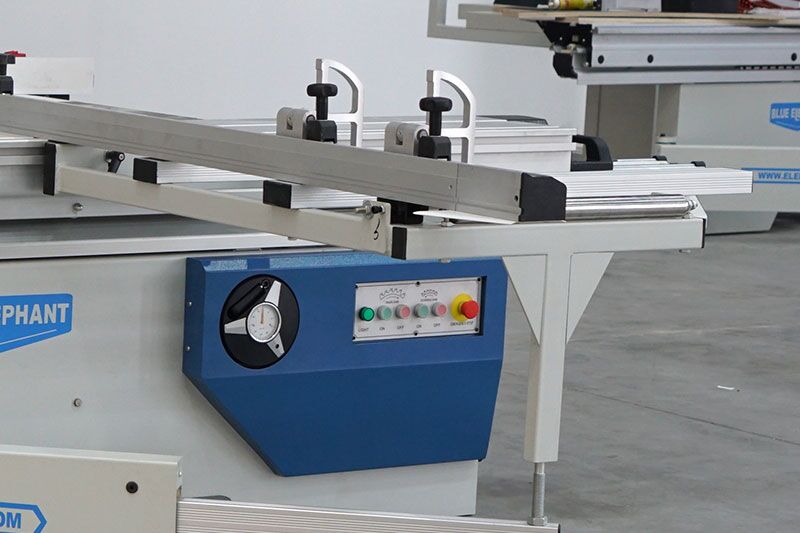

Sliding Table Saw Machine

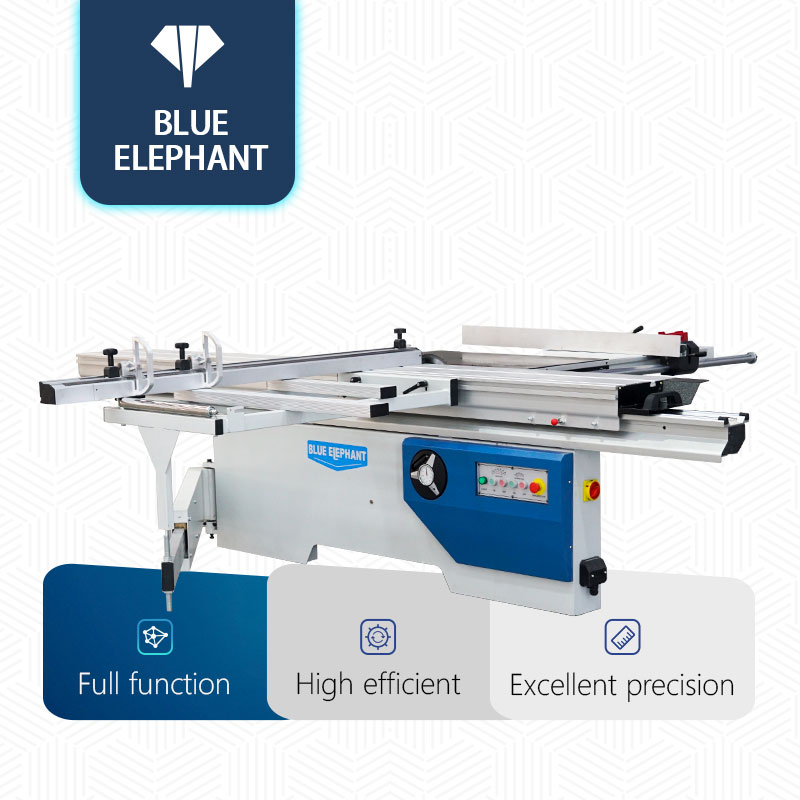

Precision 45 90 Degree Sliding Table Saw Machine Cabinet Panel Saw Wood Carpentry Machine Export to Europe America
Features:
Precision panel saws are also called sliding table saws, precision sliding table saws, woodworking precision panel saws, and precision saw panel sliding table saws. They are easy to operate, stable and safe. It is an indispensable machine for mass production, standardization, mechanization and specialization of furniture.
  • It is suitable for processing various wood structures such as density board, particle board, man-made board, ABS board, PVC board.
  • The internal structure of the sawing machine adopts the international mainstream linear slide rail configuration, which runs smoothly.
  • Equipped with a fine-tuning device, it is easy to operate and very convenient to use.
  • The main saw adopts electric control up and down, manual tilt digital display tilt angle.
Product Parameters
Dimensions3200*2540*900mm
Sliding table size3200*375mm
Sawtooth length3000mm
Sawtooth width1200mm
Sawtooth thickness78mm
Main saw diameter300mm
Scribing saw diameter120mm
Main saw speed4000/6000rpm
Scribing saw speed7000rpm
Spindle diameter30mm
Counter spindle diameter20mm
Main motor power5.5kw
Counter motor power0.75kw
Saw blade angle0-45°
Net weight700/800kg
Product Details & Features

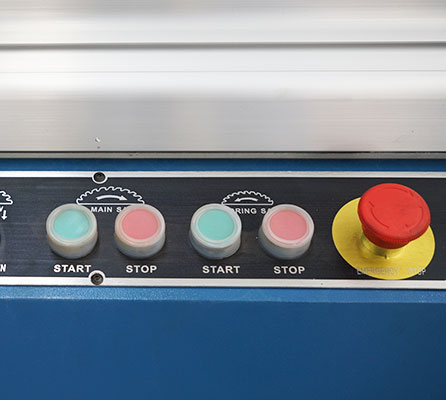

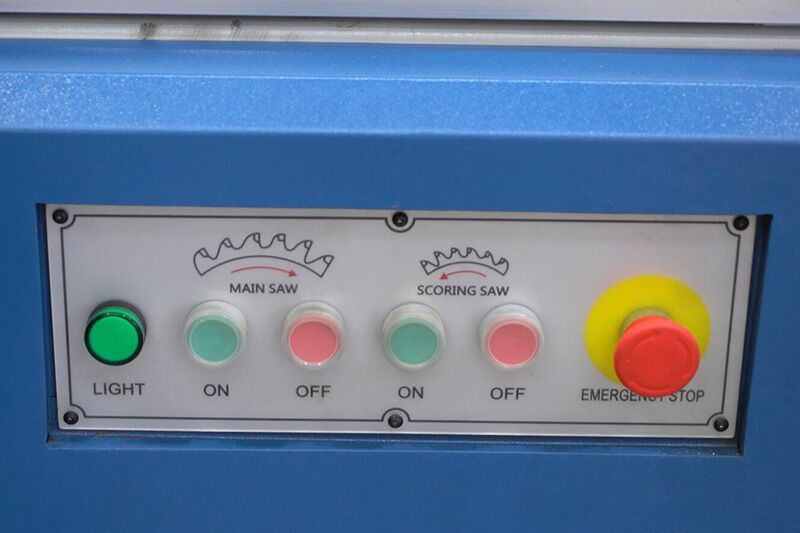

Console
Console

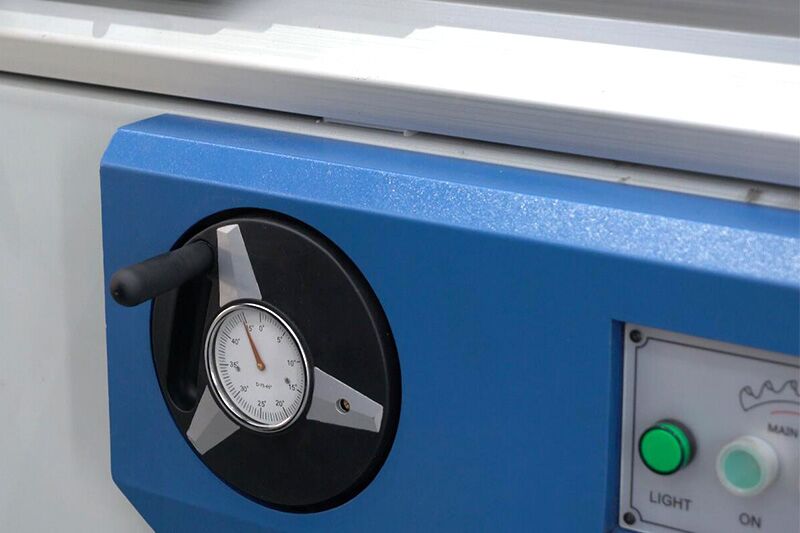

Electric lifting, digital display function, digital display angle adjustment.

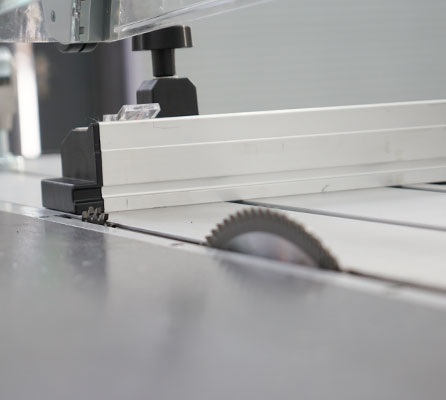

Double saw blade structure
Double saw blade structure
Double saw blade structure, clear division of labor, small saw marking, large sawing to prevent board burr and edge collapse.

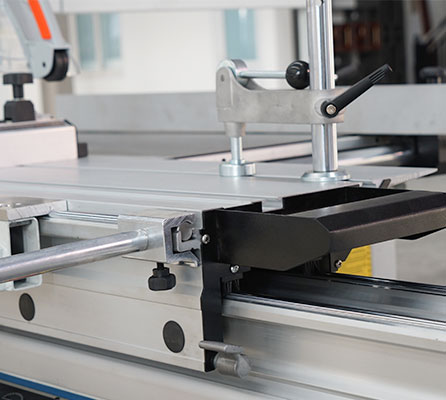

Fixed well
Fixed well
Cast iron structure, will not slide, convenient and accurate cutting.

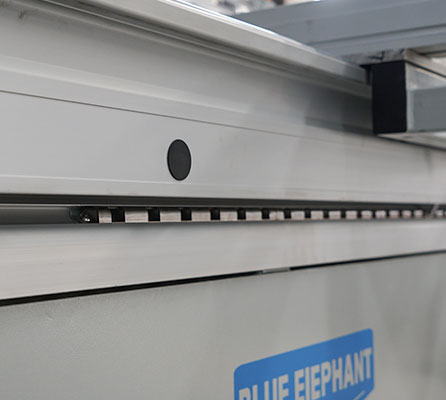

Guide rail
Guide rail
Double-layer thick round rod chromeplated guide rail, high pressure bearing capacity.

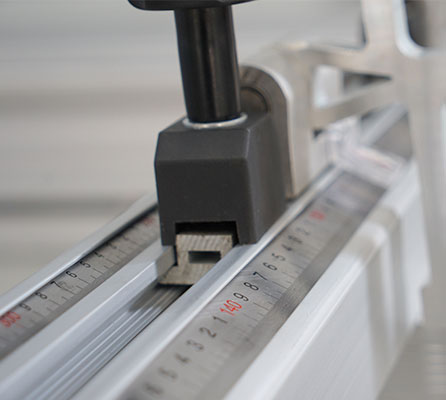

Positioning
Positioning
Baffle gauge positioning.
Workbench
Workbench
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Customer Feedback
Customer Video Feedbacks
Customer Success Story
Production Showcase

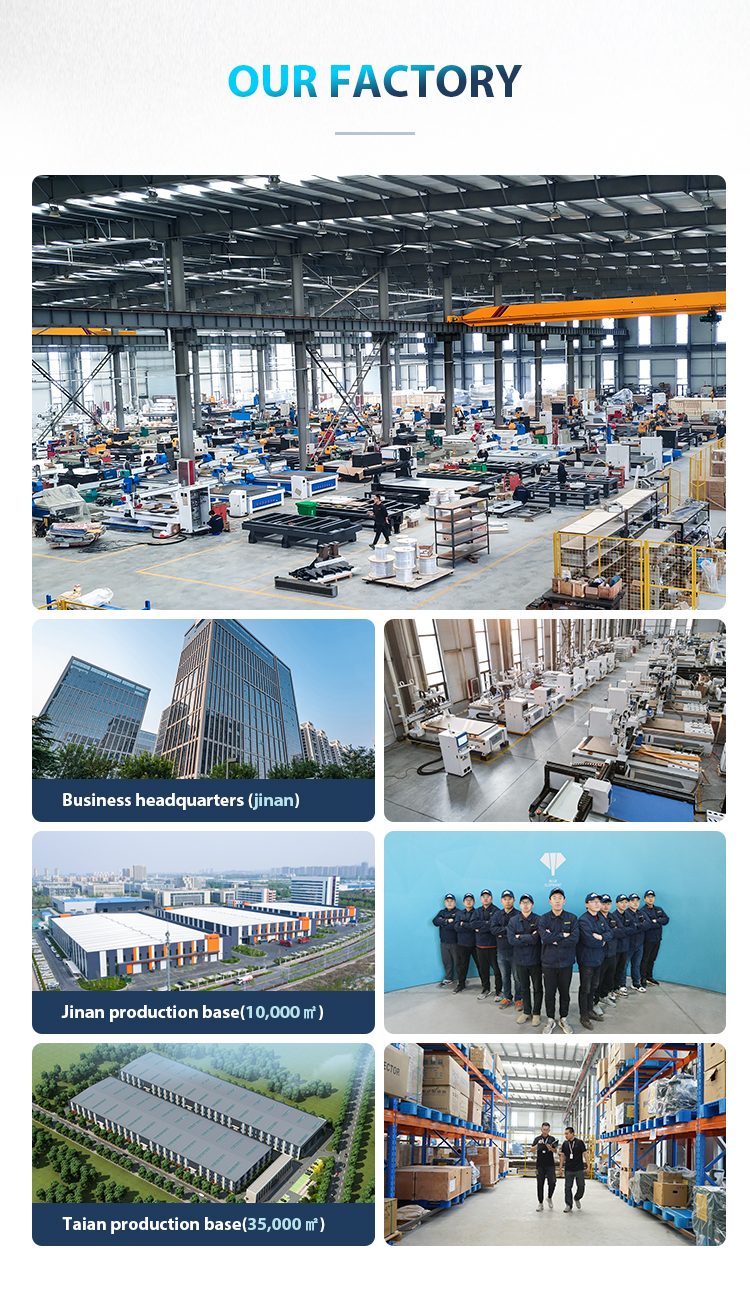

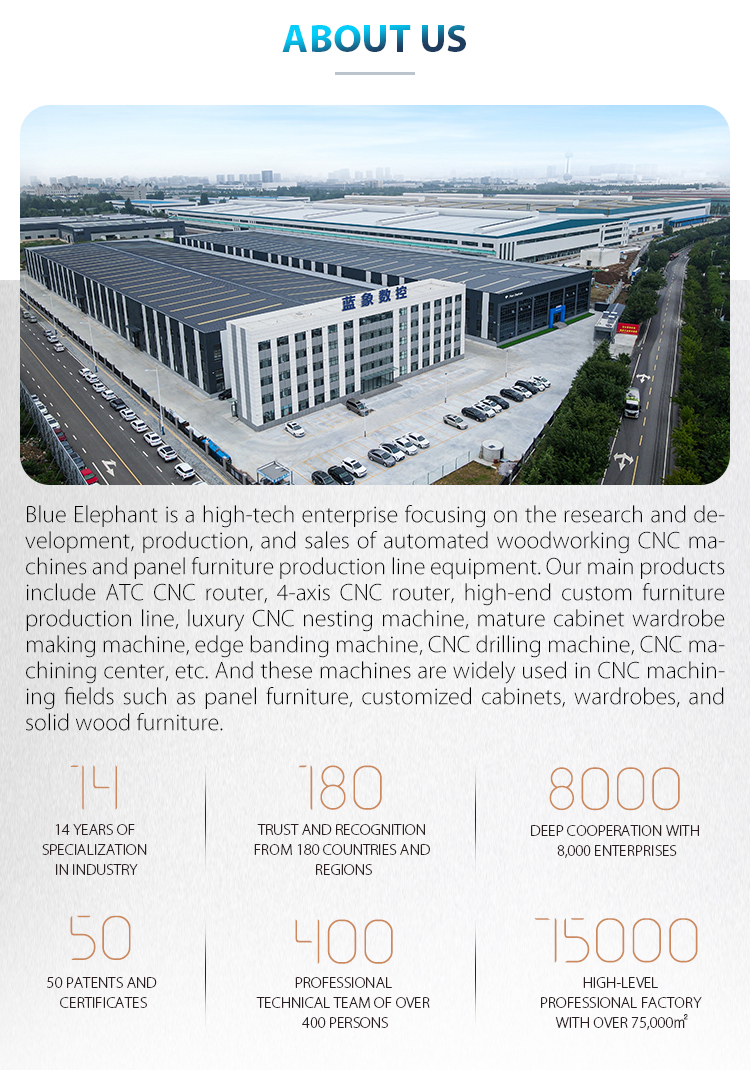

Factory Environment 1 Factory Environment 2 Factory Environment 3 Factory Environment 4
