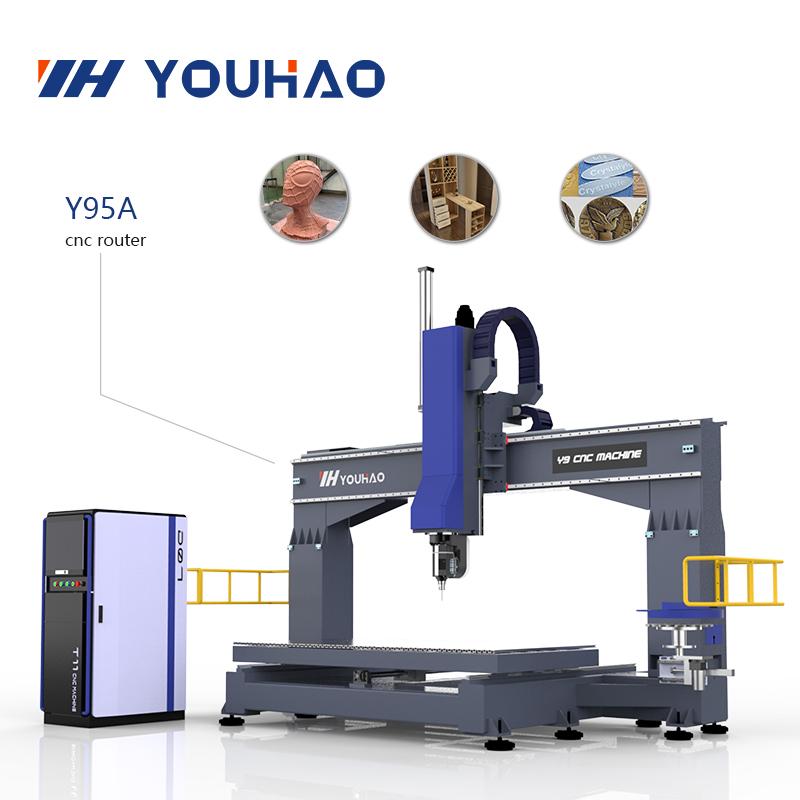

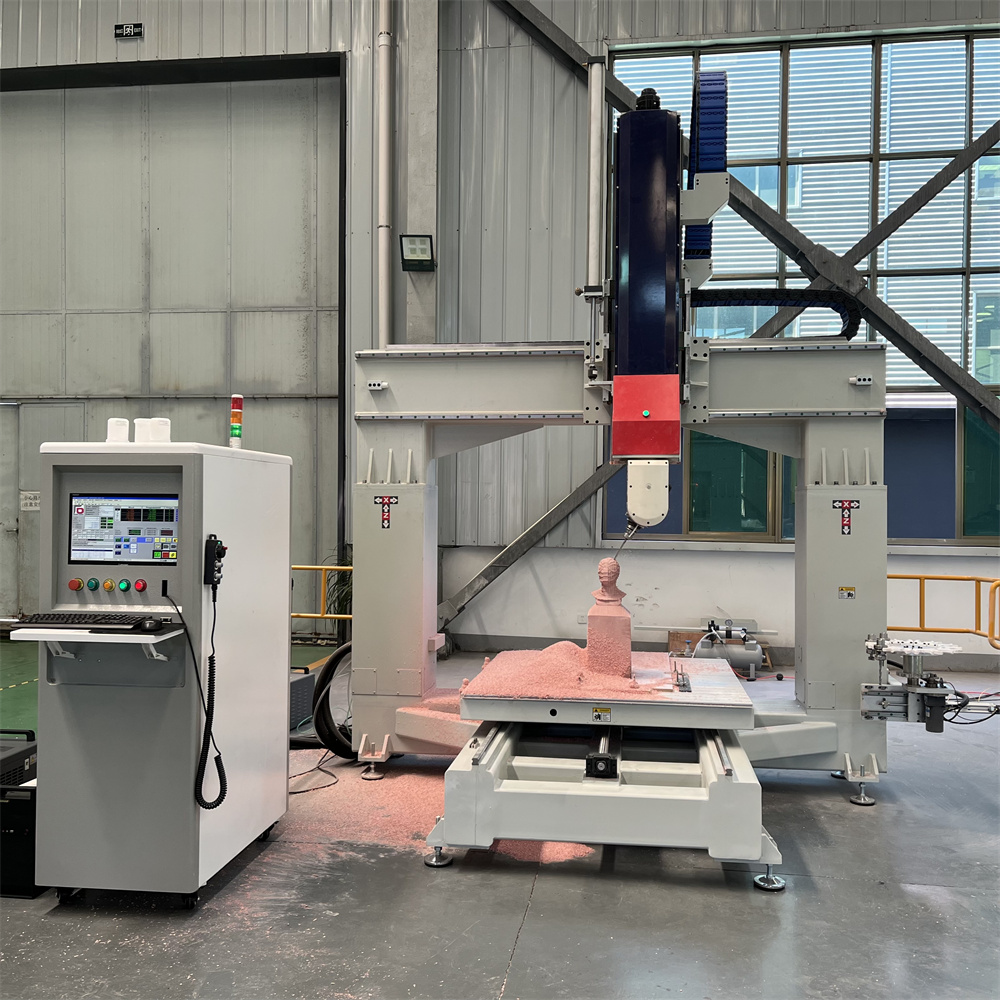

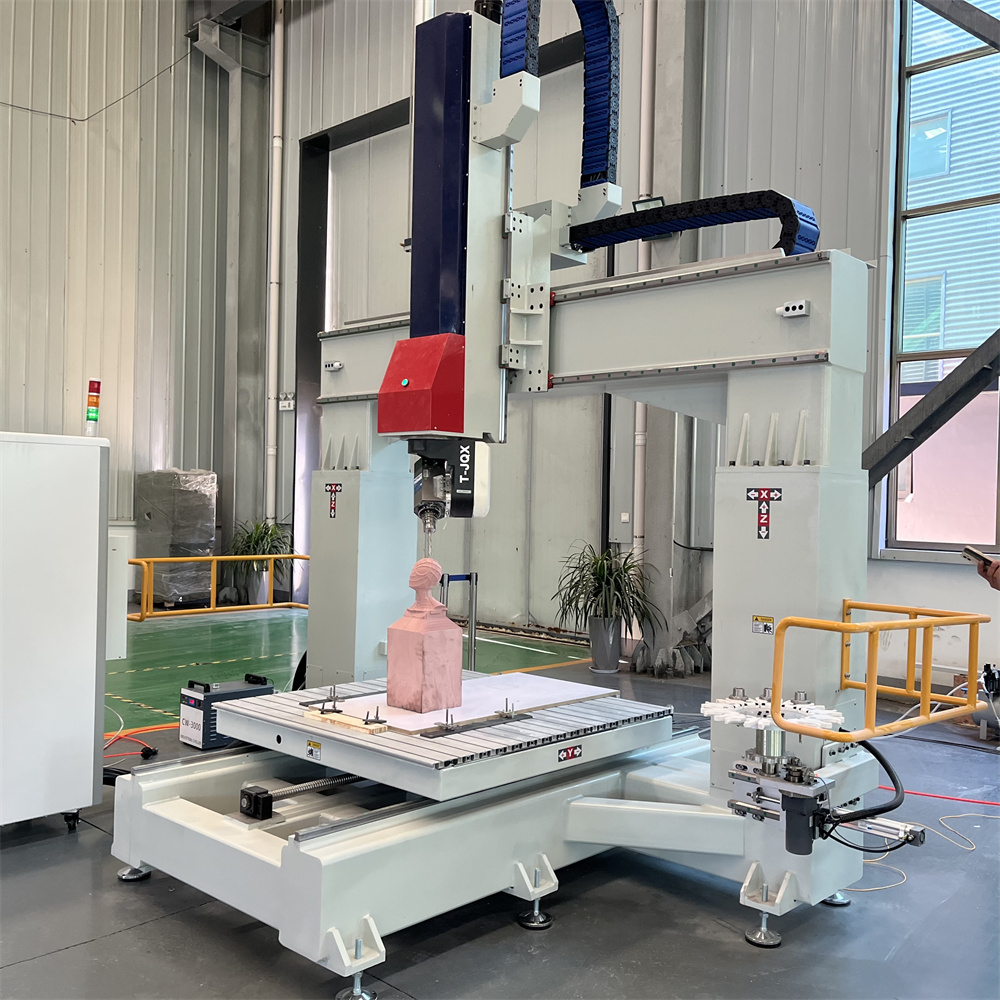

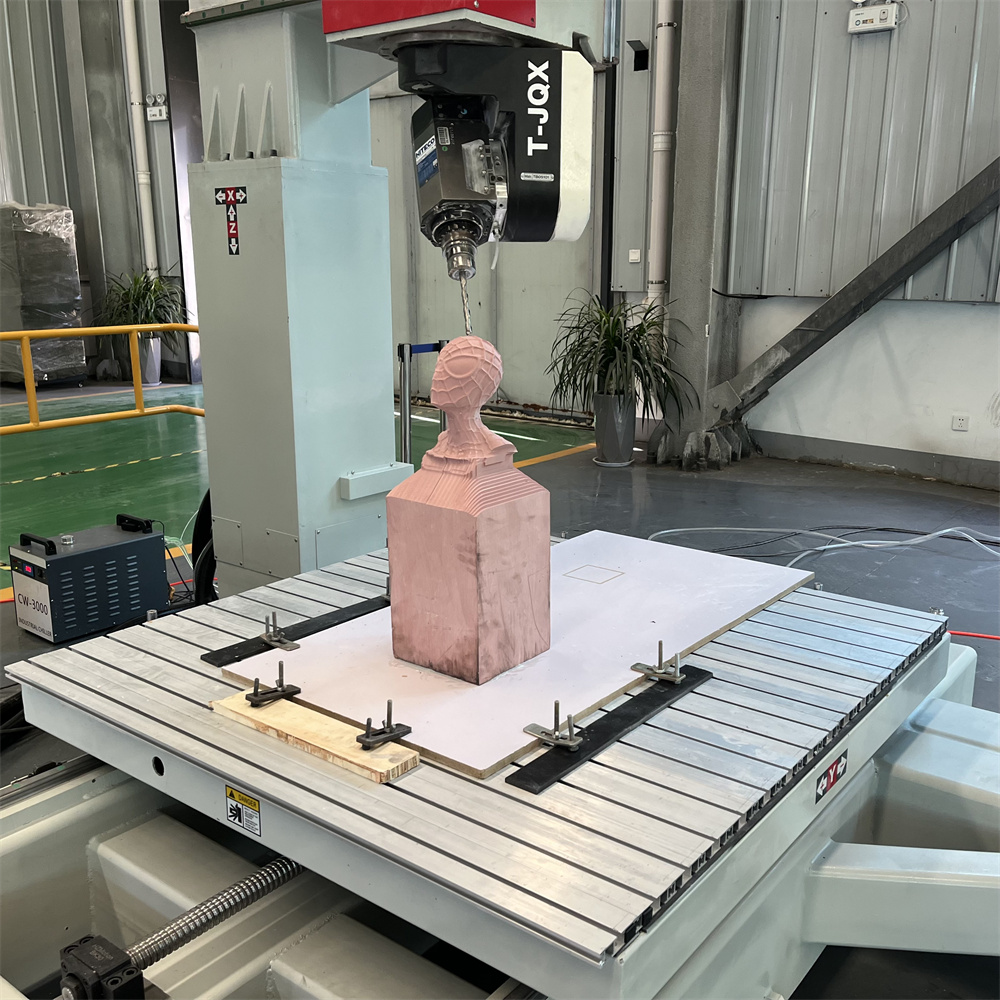

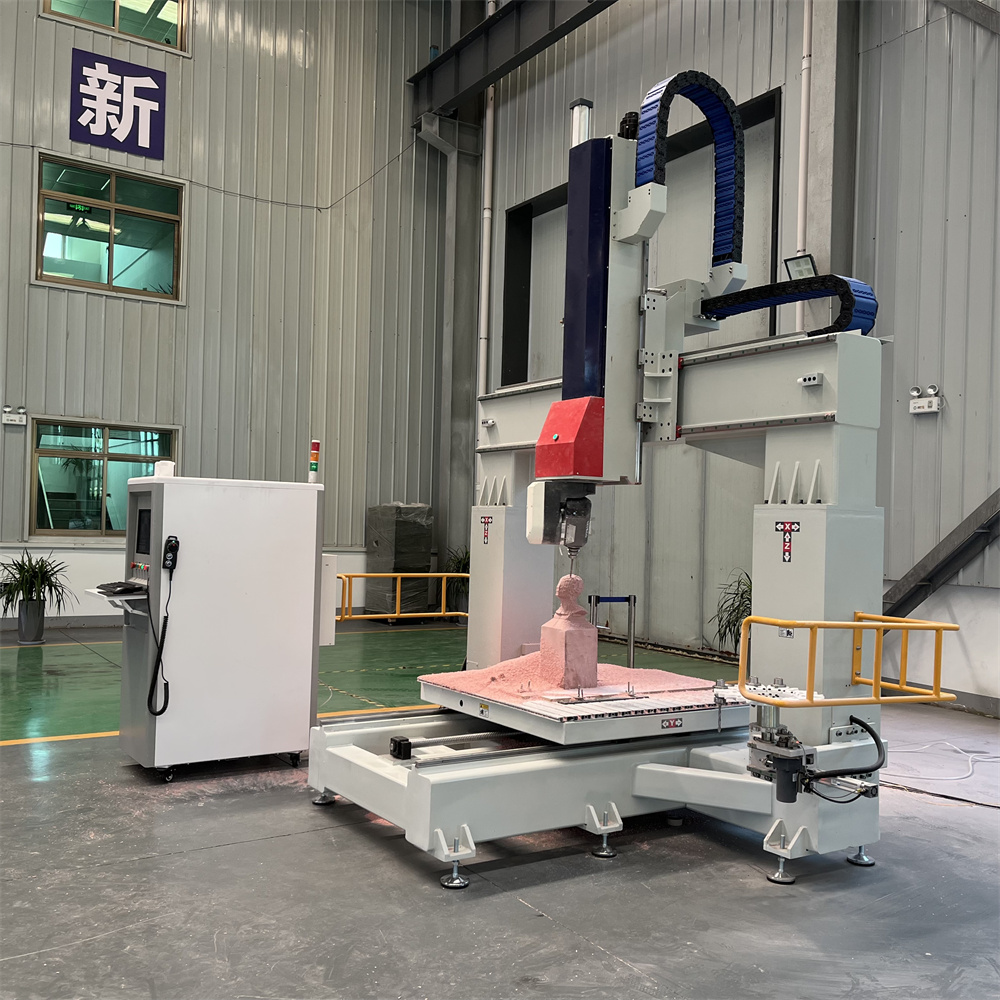

Wood Mould Carving Woodworking CNC Router Machine 5 Axis Syntec Control Single Spindle Heavy Duty Frame 9kw High Rigidity
Wood Mould Carving Woodworking CNC Router Machine 5 Axis Syntec Control Single Spindle Heavy Duty Frame 9kw High Rigidity
Wood Mould Carving Woodworking CNC Router Machine 5 Axis Syntec Control Single Spindle Heavy Duty Frame 9kw High Rigidity
Wood Mould Carving Woodworking CNC Router Machine 5 Axis Syntec Control Single Spindle Heavy Duty Frame 9kw High Rigidity
Wood Mould Carving Woodworking CNC Router Machine 5 Axis Syntec Control Single Spindle Heavy Duty Frame 9kw High Rigidity
1 / 5
Wood Mould Carving Woodworking CNC Router Machine 5 Axis Syntec Control Single Spindle Heavy Duty Frame 9kw High Rigidity
Wood Mould Carving Woodworking CNC Router Machine 5 Axis Syntec Control Single Spindle Heavy Duty Frame 9kw High Rigidity
Wood Mould Carving Woodworking CNC Router Machine 5 Axis Syntec Control Single Spindle Heavy Duty Frame 9kw High Rigidity
Wood Mould Carving Woodworking CNC Router Machine 5 Axis Syntec Control Single Spindle Heavy Duty Frame 9kw High Rigidity
Wood Mould Carving Woodworking CNC Router Machine 5 Axis Syntec Control Single Spindle Heavy Duty Frame 9kw High Rigidity

Wood Mould Carving Woodworking CNC Router Machine 5 Axis Syntec Control Single Spindle Heavy Duty Frame 9kw High Rigidity

Send Inquiry

Product Description

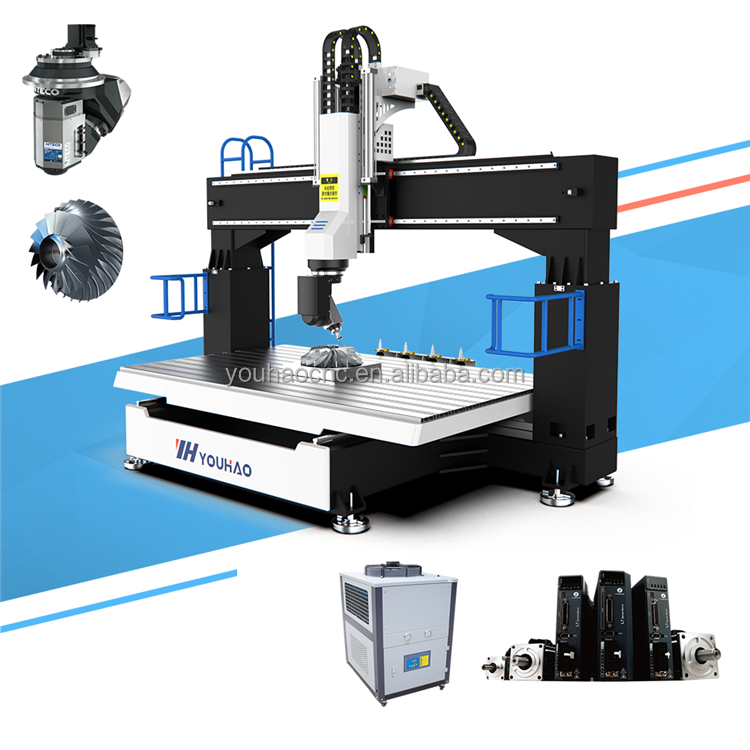

Wood mould and carving woodworking cnc router machine 5 axis
Product Description

Wood mould and carving woodworking cnc router machine 5 axis

With 4 axis spindle (which can be rotated ± 180 degrees), this machine is specially designed for curve surface cabinet, doors and indoor decoration. It can also work for some mold processing, like foam mold.

⚙️
Spindle Rotary: It can engrave a cylindrical object. The rotary device's diameter, length, and position can be customized according to your requests.
⚙️
ATC CNC Router Machine: Auto tool changer, save time, and high efficiency. Carve on different tools, no need to change tools manually.
⚙️
Machine Body Design: Ruggedly constructed machine structure. Material is stress relieved and annealed for deformation free, thus always keeping machine accurate.
⚙️
Precision Base: The machine base is produced by CNC machine, and the five sides are produced at once to ensure standard tolerance and accuracy.
⚙️
Automatic Tool Calibration: Precisely detect the tool checking spot and automatically input tool length data. Equipped with a crash-proof function to protect tools.
⚙️
Precision Components: Features HIWIN/PMI Taiwan precision liner guides and C5 class ball screws (precision < 0.03mm) with dust protection for prolonged life.

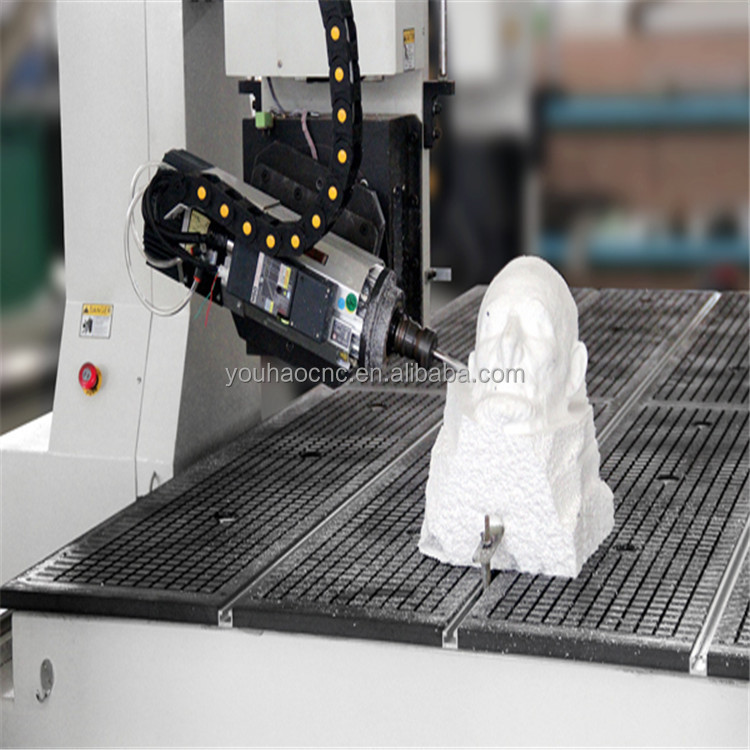

Woodworking CNC details
Technical Specification
No. Description Parameters
1Working Area2100x4200x1200mm
2Table Size3200*5700mm
3X,Y,Z Traveling Positioning Accuracy±0.02/300mm
4X,Y,Z Repositioning Accuracy±0.02 mm
5Table SurfaceMoveable Milling Steel with T-slot Table
6FrameHeavy steel welding
7X,Y,Z StructureBall Screw and gear rack
8Max. Power Consumption14.2kw
9Max. Rapid Travel Rate25,000mm/min
10Max. Working Speed15,000mm/min
11Spindle Speed0-24000 RPM
12Drive MotorsYaskawa Servo
13Working VoltageAC380V, 50/60Hz, 3PH (Option:220V)
14Command LanguageG Code
15Operating SystemSyntec Control System or NC studio/Mach3/D
16Computer InterfaceCF Card, Ethernet
17Flash Memory512M (U Disk)
18X,Y Resolution< 0.02mm
19Software CompatibilityUGS, Alpha Cam, Becam, Type3, Ucancam V9
20Running Environment Temperature0°-45°
21Relative Humidity30%-75%
22Packing Size5700x4800x2000mm (in parts)
23N.W.10000kg
24G.W.11000kg
Applications
Versatile Processing Capabilities
Mould Furniture Wood Products Plate Processing Decoration Industry
  • Mould: wood, wax, gypsum, foams, wax.
  • Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
  • The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
  • Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
  • Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.

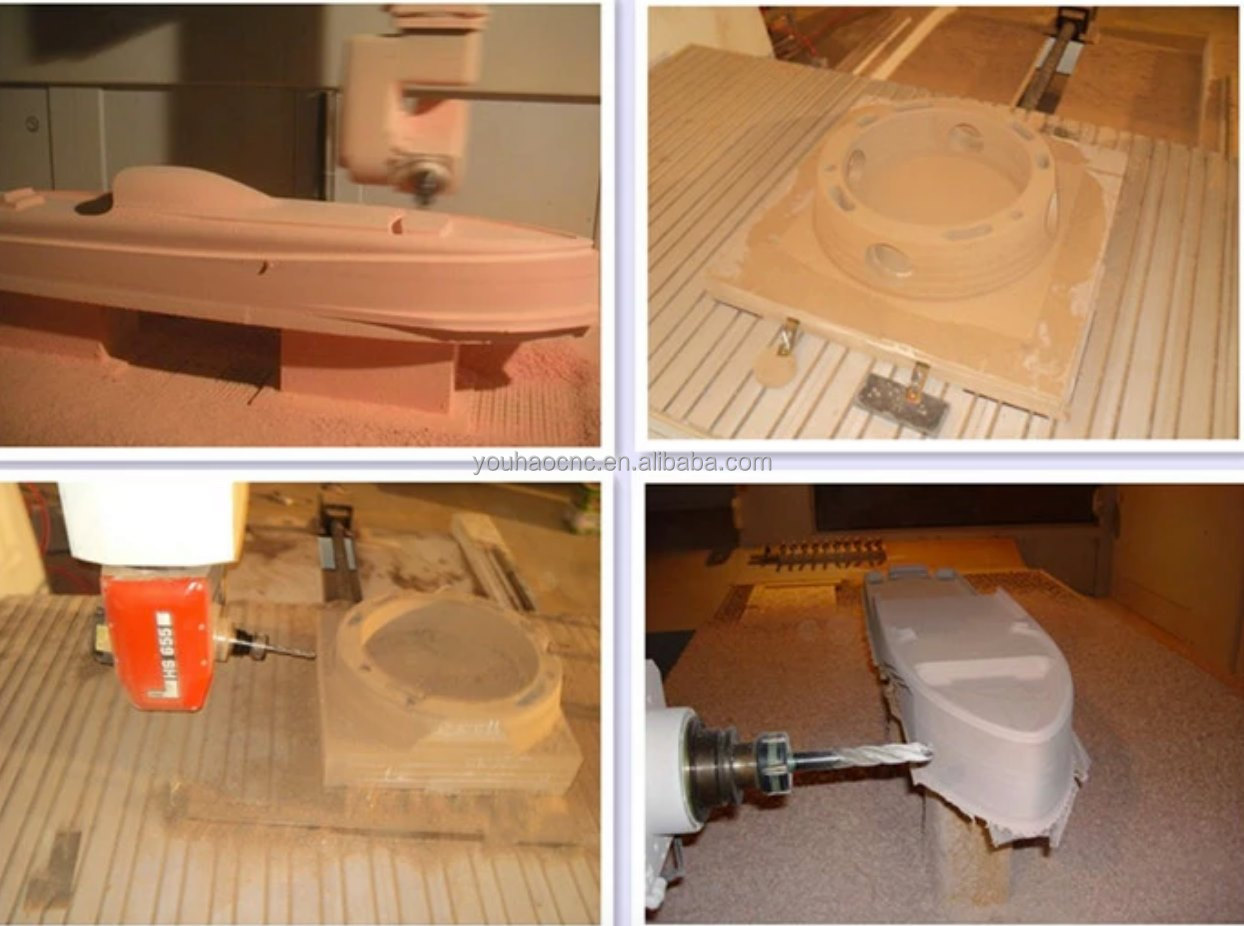

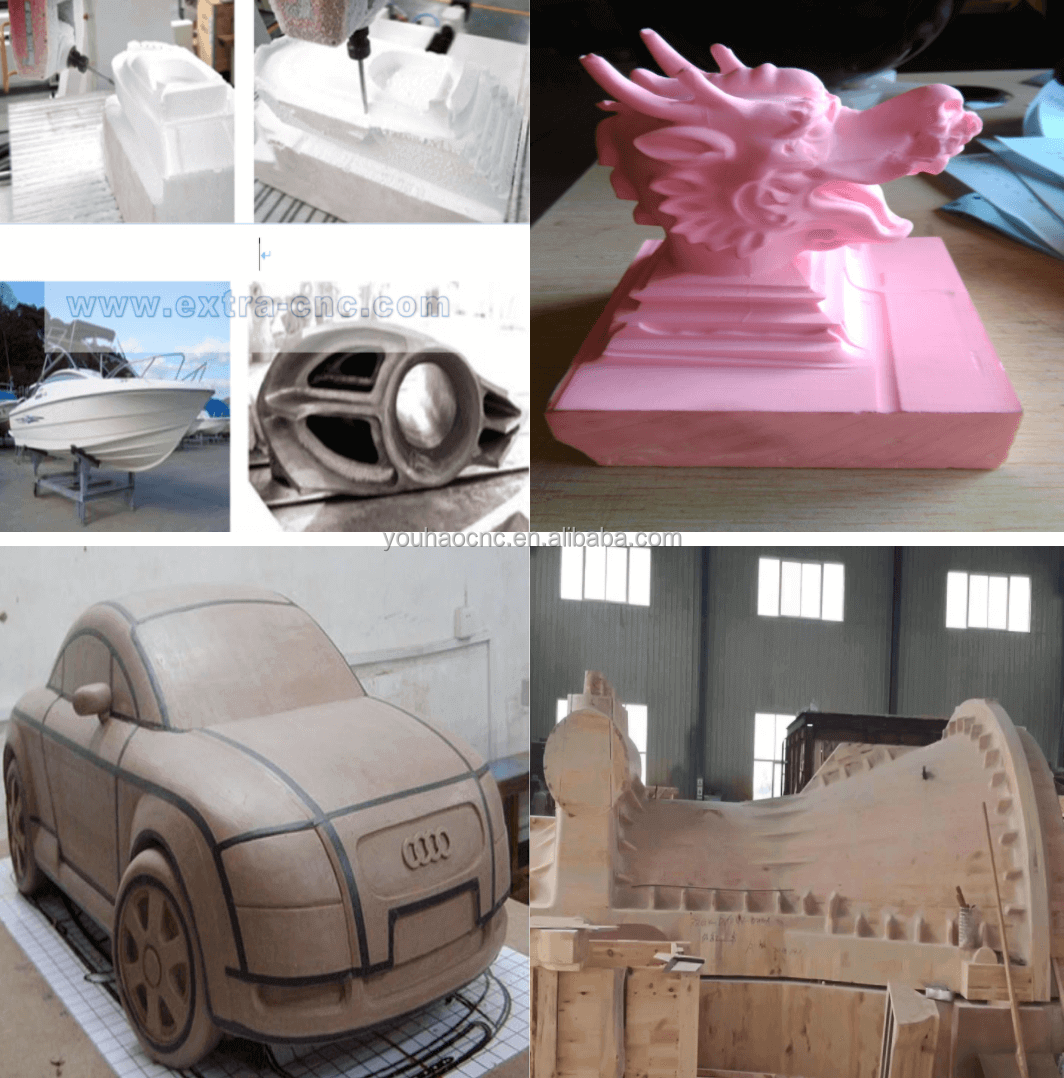

Application 1 Application 2 Application 3
Frequently Asked Questions
Will the package be damaged during transportation?
Our package considers all damage factors to ensure safety. Our shipping agents are fully experienced in safe transportation to 180 countries worldwide. You will receive the parcel in good condition.
How to install and run the machine?
Our technicians perform full installation and testing before shipping. We provide detailed training videos and user manuals. approximately 95% of customers learn to operate it by themselves.
What is the production time after ordering?
The production time is approximately 10-20 days, depending on the specific machine configuration.
Can you provide training if we don't know how to use it?
Yes, we offer free training at our facility until you can use the machine freely. We can also send engineers to your country for on-site training (associated costs like tickets and accommodation apply).
How about your after-sales service?
We offer 24-hour service via phone, Skype, or WhatsApp. Our engineers are also available for on-site installation and training.
Can the machine be customized?
Yes, we have many kinds of machines and highly experienced engineers. We can customize every machine according to your specific requirements.
