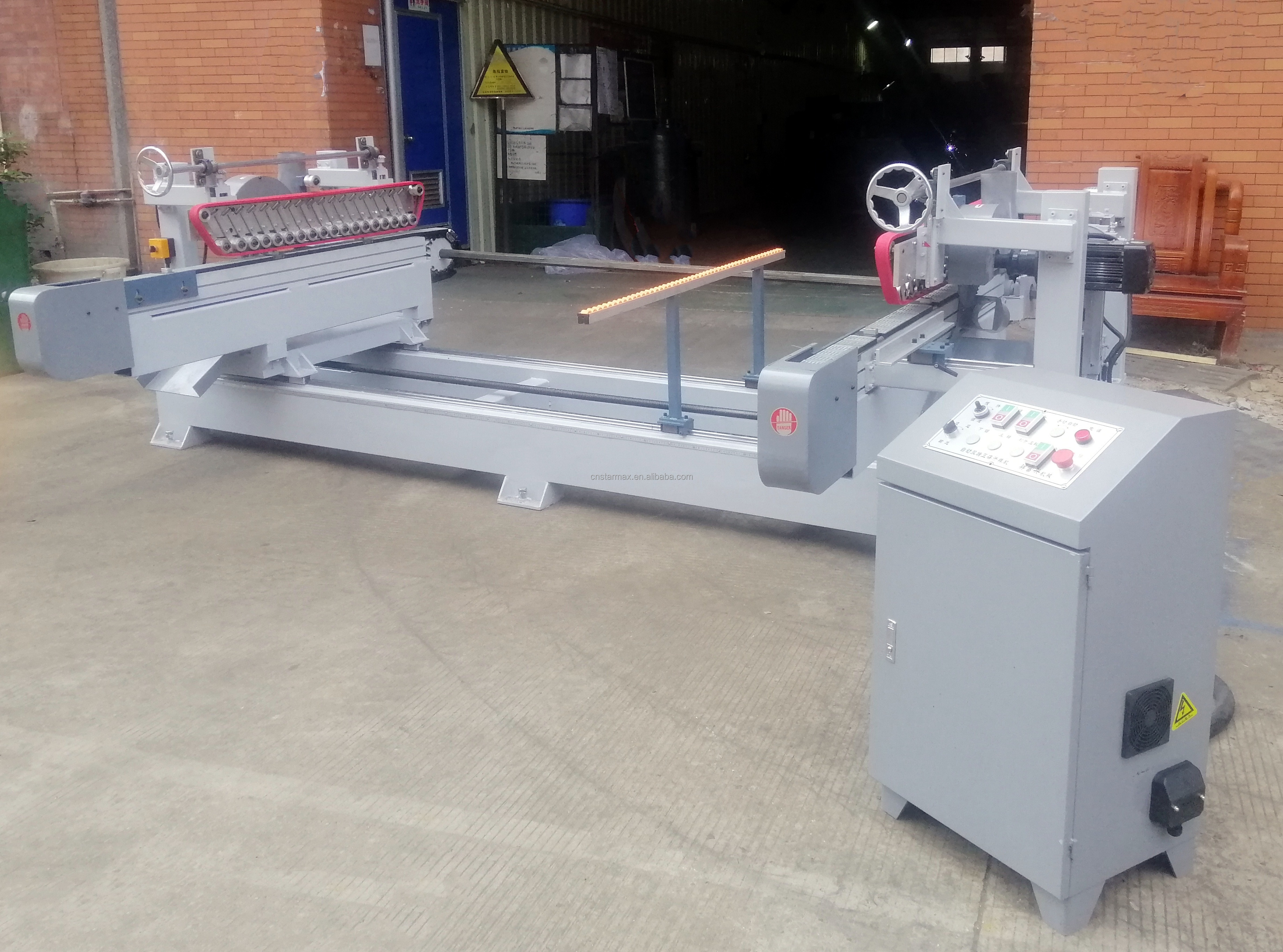

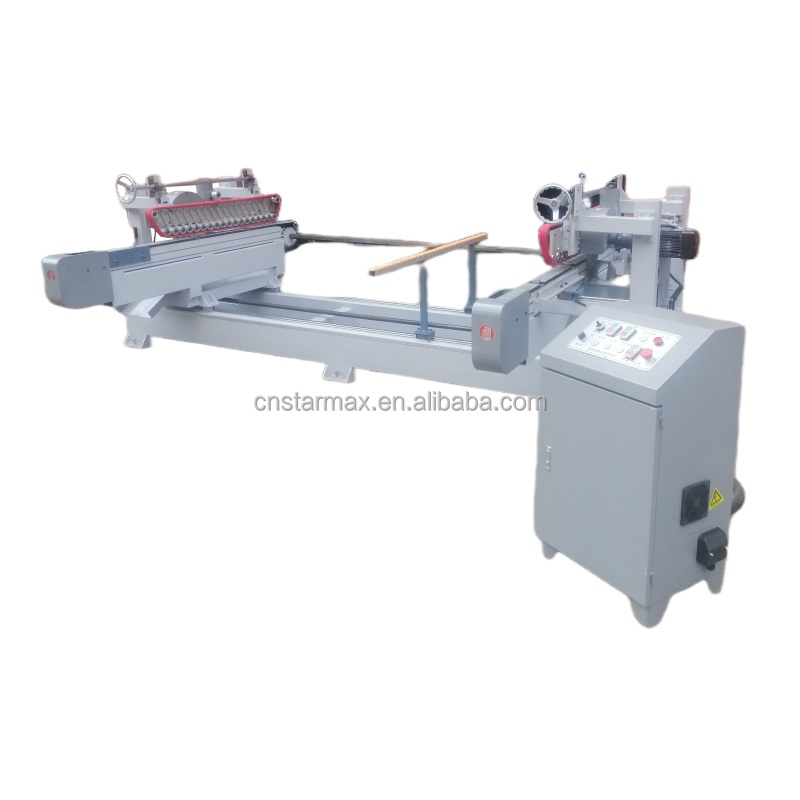

Horizontal Double-End Trim Saw Wood Cutting Machine Butting Panel Saw Circular Saw With Core Motor Component
Horizontal Double-End Trim Saw Wood Cutting Machine Butting Panel Saw Circular Saw With Core Motor Component
Horizontal Double-End Trim Saw Wood Cutting Machine Butting Panel Saw Circular Saw With Core Motor Component
Horizontal Double-End Trim Saw Wood Cutting Machine Butting Panel Saw Circular Saw With Core Motor Component
1 / 4
Horizontal Double-End Trim Saw Wood Cutting Machine Butting Panel Saw Circular Saw With Core Motor Component
Horizontal Double-End Trim Saw Wood Cutting Machine Butting Panel Saw Circular Saw With Core Motor Component
Horizontal Double-End Trim Saw Wood Cutting Machine Butting Panel Saw Circular Saw With Core Motor Component
Horizontal Double-End Trim Saw Wood Cutting Machine Butting Panel Saw Circular Saw With Core Motor Component

Horizontal Double-End Trim Saw Wood Cutting Machine Butting Panel Saw Circular Saw With Core Motor Component

Send Inquiry

Product Description

Double Headed Saw Machine Detail

Automatic Double-headed Squaring Saw

A double-end saw is a type of industrial cutting equipment. It is equipped with saw blades at both ends, enabling it to perform cutting operations on both ends of work pieces simultaneously. This significantly improves work efficiency compared to single-ended saws.
Commonly used in woodworking, it can process various wood materials, such as trimming the two ends of wood planks to make them of equal width and length. It's also applied in processing of aluminum alloy and other metal profiles.
Some advanced double-end saws feature adjustable angles, precise positioning systems, and automatic feeding mechanisms, which help enhance the accuracy and automation level of cutting.

Key Advantages

1
Dual-end Blades: Designed for exceptionally fast and synchronized cutting.
2
High-speed Operation: Ensures efficient processing for large-scale production.
3
Precision Cuts: Guarantees accurate results on both ends of the workpiece.
4
Versatile Use: Features adjustable angles for various processing needs.
5
Automatic Feed: Simplifies operation and reduces manual labor.
Saw Advantage

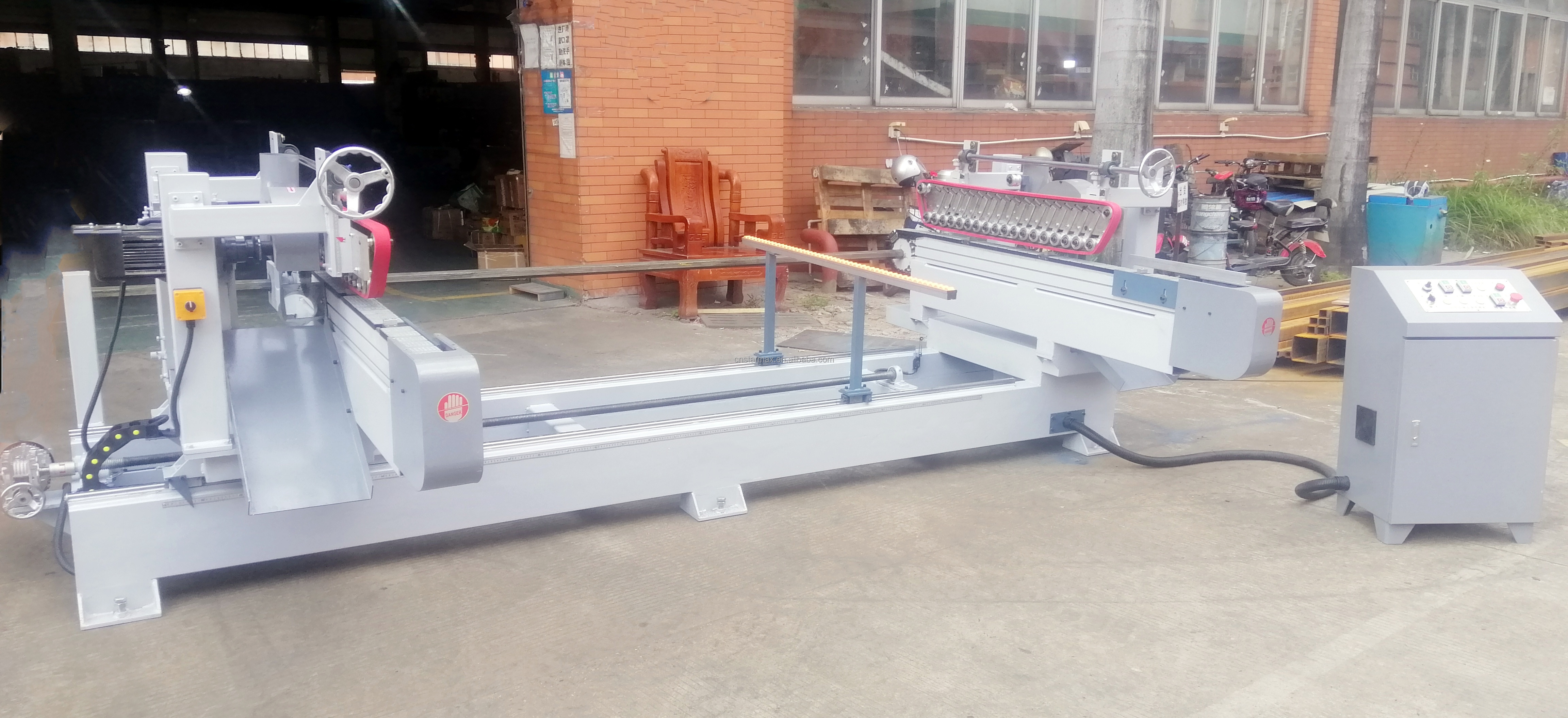

Saw View 1

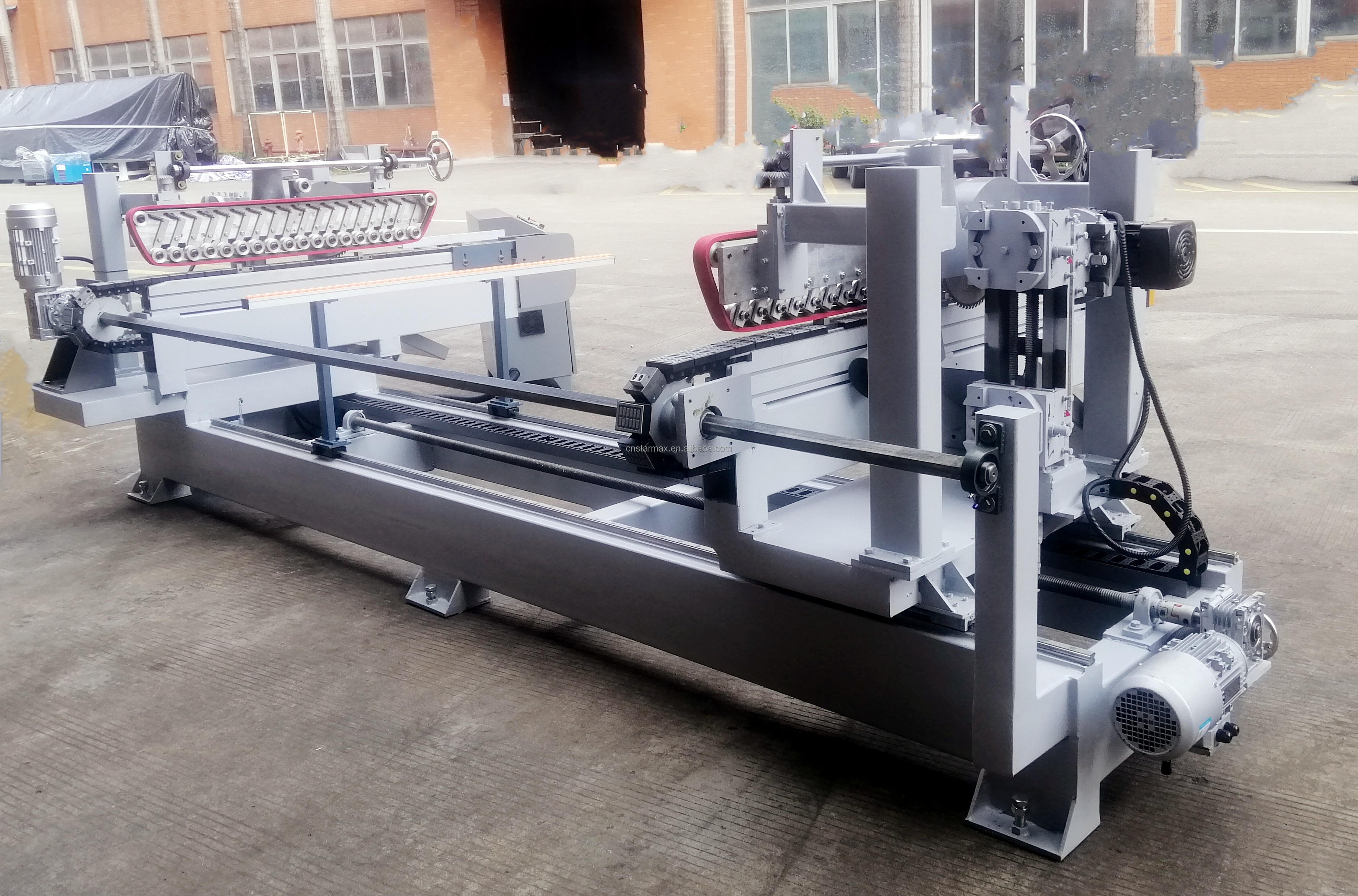

Saw View 2

Technical Specifications

Model Specifications
Model No. SM-SDJ-04
Processing Dimensions Thickness: 30-40mm
Width: 60-120mm
Length: 500-2300mm
Main Motor Power 4kw*2 (High speed 6000 r/min)
Saw Shaft Diameter 25.4mm
Saw Blade Outer Diameter 300mm
Turntable Manually adjusted from 45 degrees to 90 degrees
Bottom Saw Motor Power 0.75kw * 2 (12000 r/min)
Conveyor Motor Power 1.5kw with RV75 Reducer (by frequency converter)
End Adjustment One end is fixed, and the other end is electrically adjustable
Total Power 11.75kw
Dimensions / Weight L 3300mm * W 2050mm / 1800kgs

Related Machinery Solutions

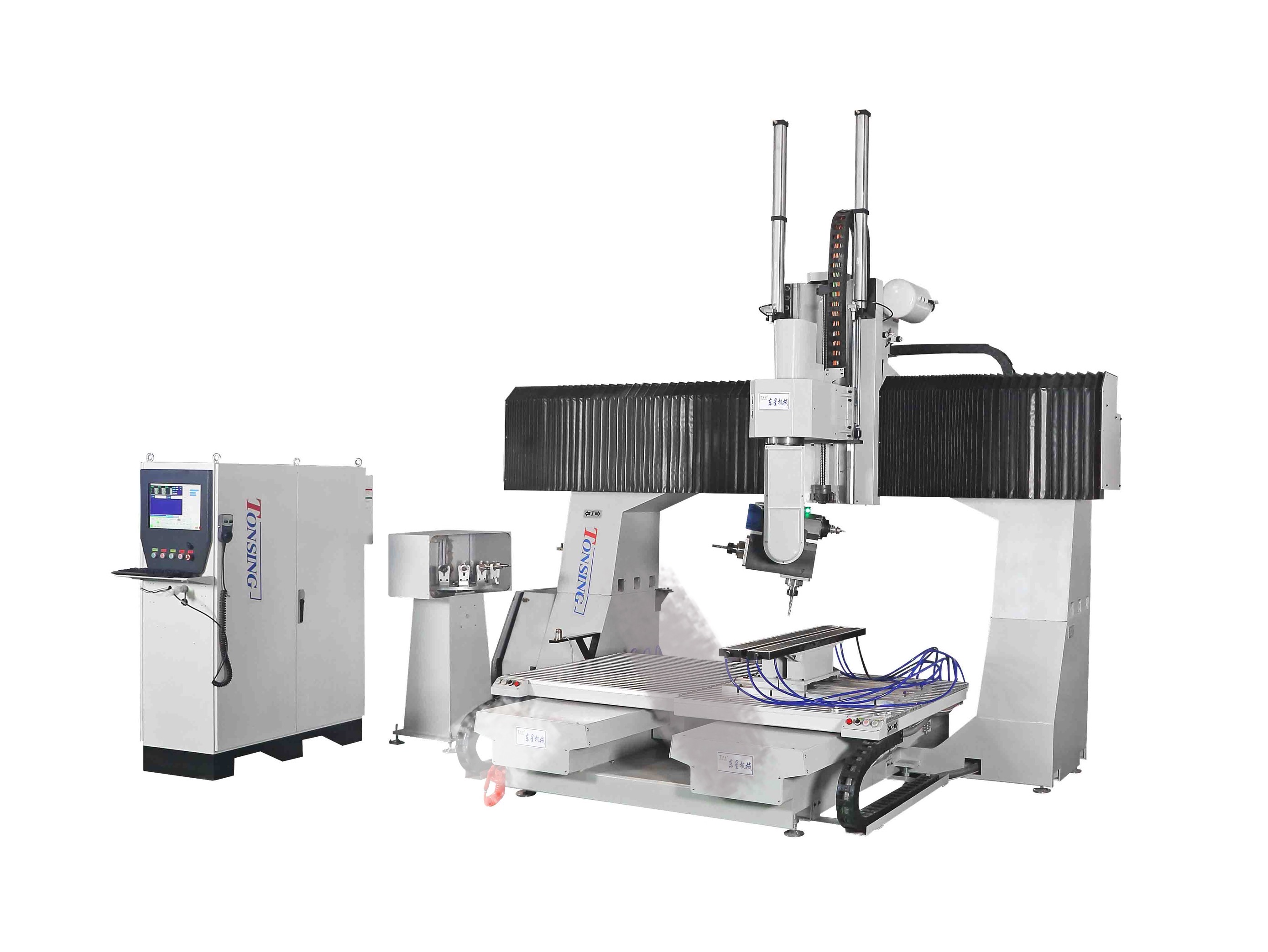

5-axis CNC

5-axis CNC Machining Center

3 spindle, ATC, solid wood production

4-axis CNC

4-axis Rotary CNC Center

Special for bentwood production

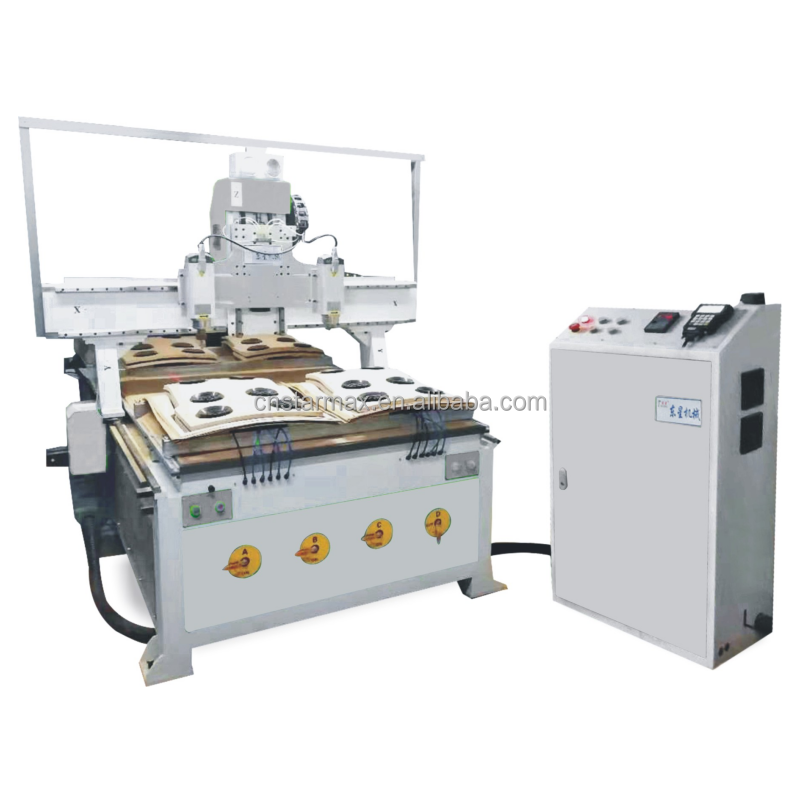

3-axis CNC

3-axis Bentwood CNC Router

Office furniture production

Band Saw

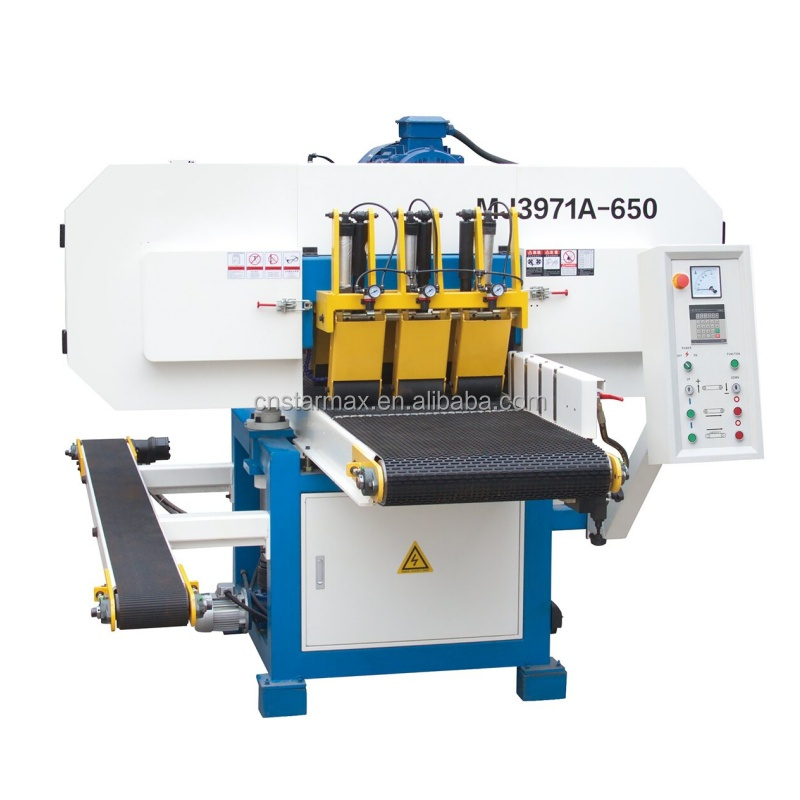

Horizontal Band Saw

For professional wood cutting

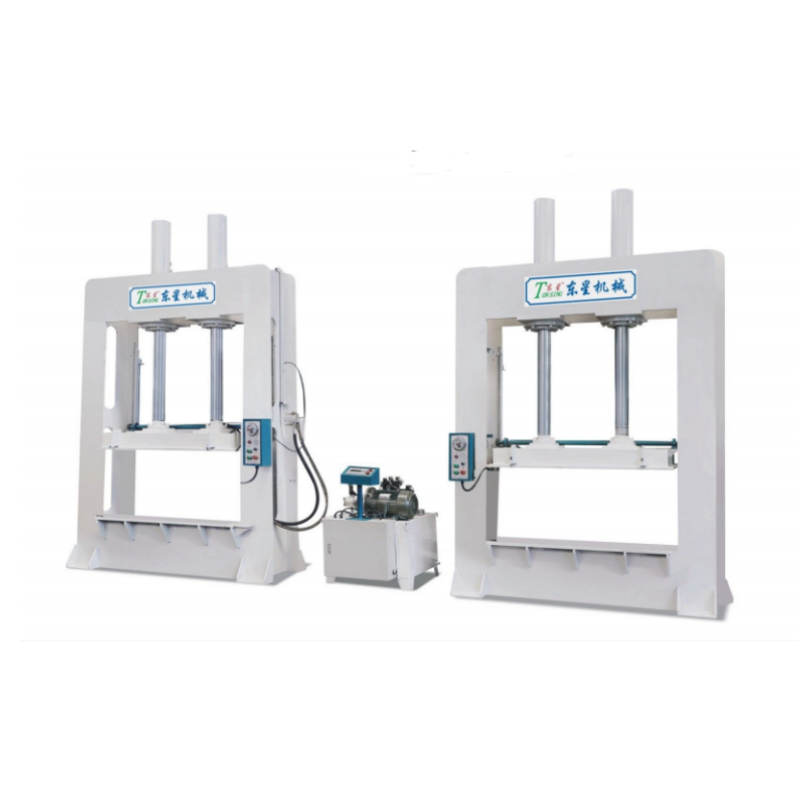

Hydraulic Press

Hydraulic Press Machine

For bentwood pressing

Glue Spreader

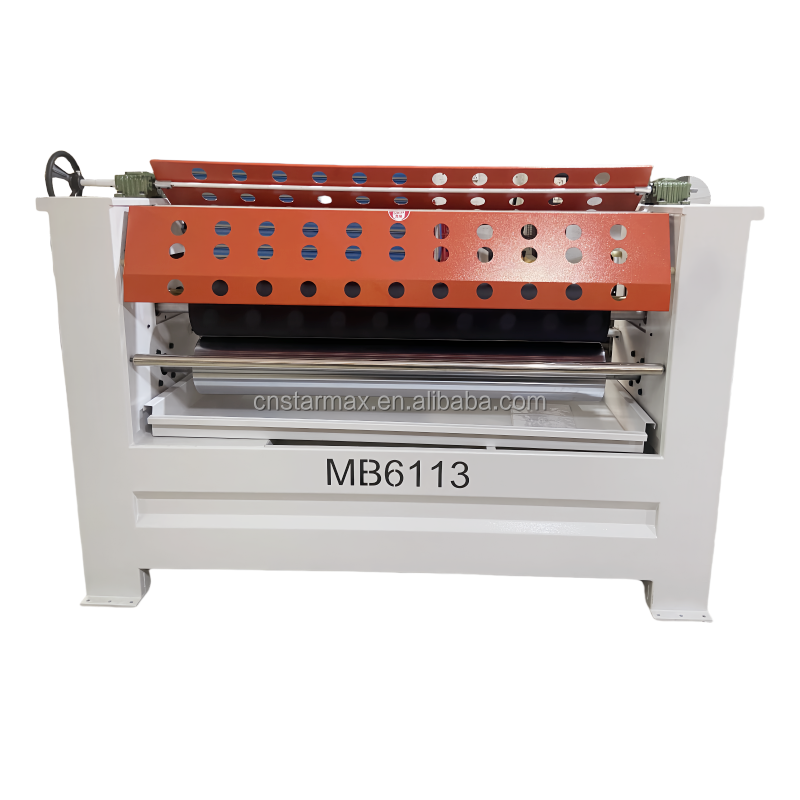

Glue Spreader

Plywood sheet gluing process

Industry Expertise

Located in a premier manufacturing hub, we are pioneers in one-stop bentwood equipment solutions. With over 23 years of wood bending production experience, our equipment has obtained numerous patents and certifications. Our products are exported to over 60 global countries and regions, earning widespread acclaim.
Production
Quality

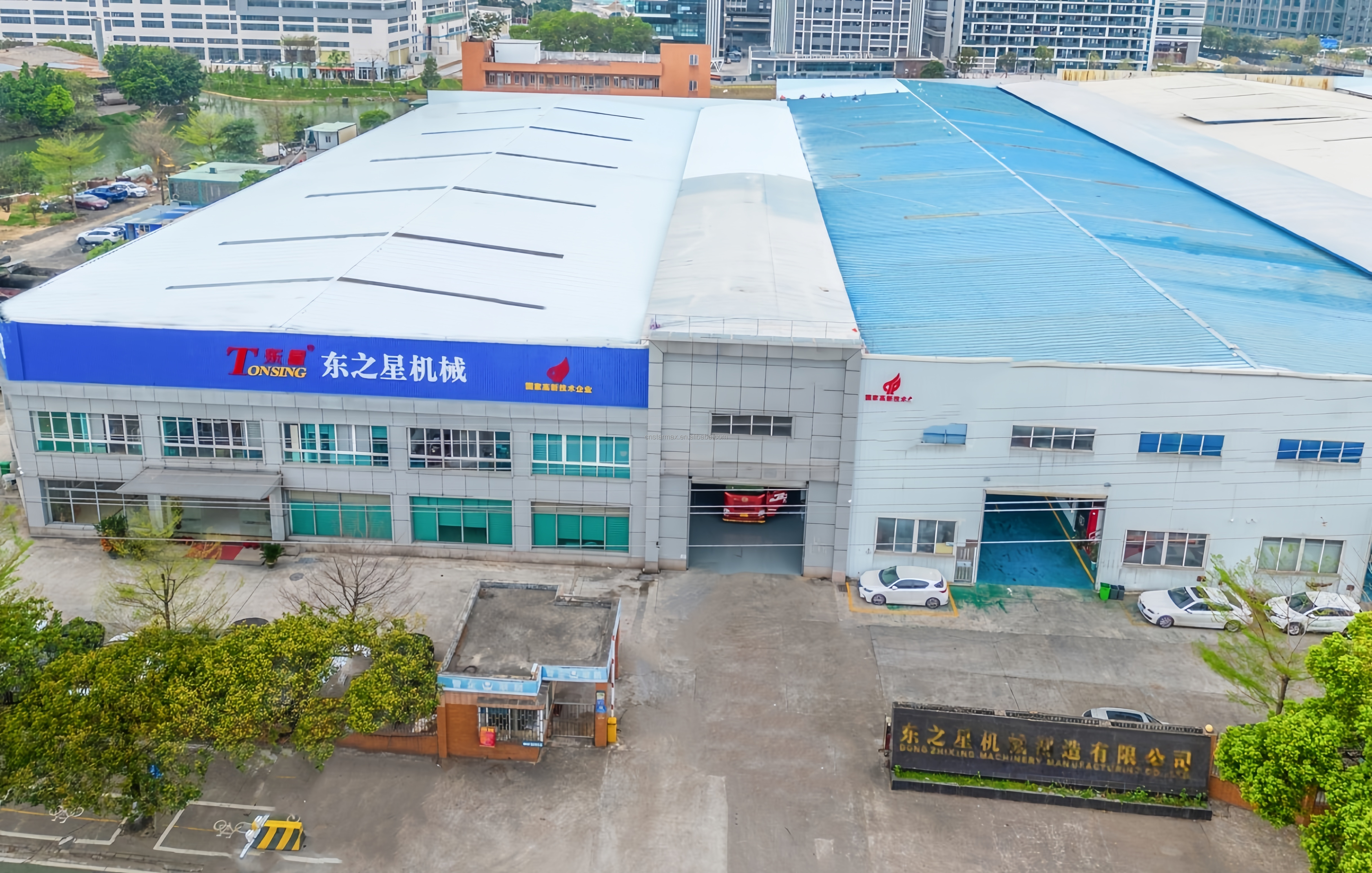

Factory Overview

Frequently Asked Questions

Q1. How can I get a quick quotation? We will reply to your inquiry within 24 hours. For urgent requirements, please contact our support team immediately.
Q2. Can I customize the machinery? Yes, we can produce and customize equipment based on your specific production demands and technical requirements.
Q3. What is the typical production lead time? It depends on the machine model and order quantity. Normally, production takes 15-30 days if no stock is available after receiving the deposit.
Q4. What are your payment and shipping terms? We accept T/T, Western Union, and PayPal. Shipping can be arranged via ocean, air, train, or express (DHL/UPS/FEDEX) depending on your preference.
Q5. What kind of warranty do you provide? We offer a 1-year free warranty (excluding quick-wear parts and human damage). Replaced part freight is covered by the customer.
Q6. How is the machine installed and operated? Most machines are pre-assembled. You simply need to unpack and connect to power. We provide comprehensive operation instructions and technical support for any setup difficulties.
